What is the radius of a long radius elbow?

To get the most out of your pipe systems, you really must know how to operate with long radius elbows and their radii. In contrast to the more common short-radius elbows, long-radius elbows have a curvature radius that is about 1.5 times the nominal pipe diameter. The centerline radius of 2-inch galvanized female-female 90° long radius elbow pipe fittings, for instance, would be about 3 inches. For uses where little energy loss and smooth fluid flow are paramount, these fittings are an absolute must-have due to the prolonged curvature, which drastically decreases both.

Understanding Long Radius Elbows and Their Dimensions

Industrial piping systems often make use of long radius elbows, a subset of pipe fittings specifically designed to improve hydraulic performance. Differentiating these components from short radius elbows is their expanded curvature radius, which is 1.5 times the nominal pipe diameter rather than the standard 1.0 times.

Standard Dimensional Specifications

System performance and compatibility are directly affected by the dimensional precision of long radius elbows. Strict production tolerances guarantee a satisfactory fit and seal integrity for standard threaded 90° bend configurations in NPT and BSPT. Accurately sized and zinc-coated, hot-dipped galvanized precision-threaded fittings are more resistant to corrosion.

Accurate control over all dimensions, internal and exterior, is essential for manufacturing standards. The amount of space between the two surfaces changes as a function of the pipe diameter, starting at 1.5 inches for fittings with ½-inch diameter and going up to 24 inches for 12-inch arrangements. For NPT connections, thread engagement depth must adhere to ASME B1.20.1 requirements, whereas for BSPT threading systems, it must adhere to ISO 7-1 norms.

Measurement Methods and Quality Assurance

The correct fit and verification of performance are guaranteed by precise measuring methods. Thread gauges, calipers, and radius templates are specialist instruments that are necessary for professional installation. Thread pitch, taper angle, and dimensional conformity are checked against established industry standards as part of quality control methods.

Knowing how to verify measurements is useful knowledge for procurement professionals. Examining the thread for adequate taper, smooth cutting, and the lack of burrs or flaws is an important part of determining its quality. To avoid expensive changes in the field and to make sure it works with current system components, dimensional verification is essential.

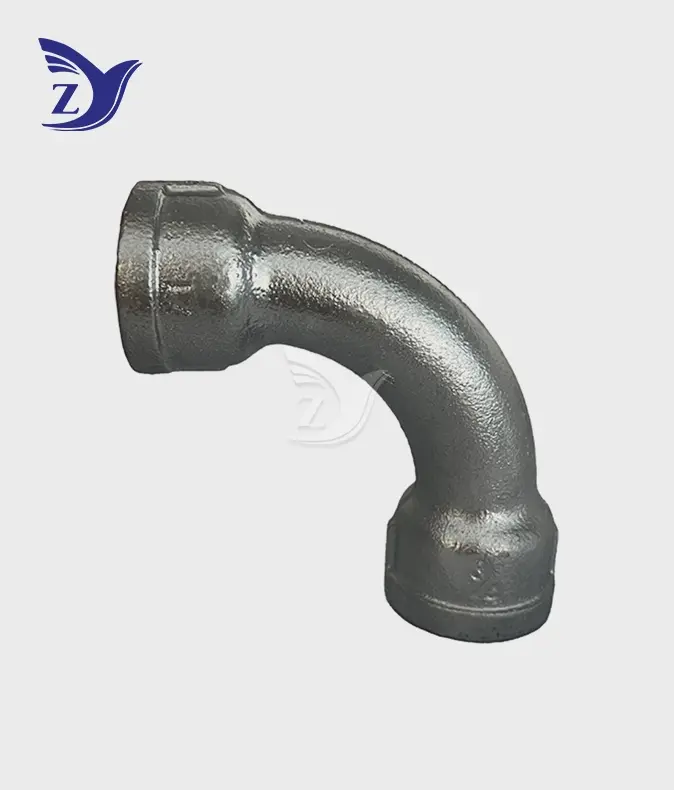

Benefits and Applications of Galvanized Female-Female Long Radius 90° Elbows

Strong, dependable fittings that can endure extreme operating conditions without sacrificing performance over time are essential for industrial applications. By preventing corrosion via cathodic activity, galvanized coatings greatly outlast their uncoated counterparts in terms of service life.

Corrosion Resistance and Durability Advantages

Multi-layer protection against environmental deterioration is achieved by hot-dip galvanizing, which generates a zinc layer that is metallurgically linked. In order to provide the best possible corrosion protection, the coating thickness is usually between 70 and 85 microns, as per ASTM A153 requirements. In damp, outdoor, somewhat corrosive conditions, this protective layer successfully stops rust from forming.

When compared to more conventional cast iron options, the mechanical qualities of high-strength anti-rust malleable iron construction are much better. There is less chance of brittle failure due to mechanical stress or thermal cycling since the material is very ductile and has great impact resistance. Galvanized female-female 90° long radius elbow pipe fittings are very well-suited for rigorous industrial uses due to their characteristics.

Industrial Application Examples

Sprinkler systems, standpipe systems, and hydrant connections are mostly comprised of galvanized fittings in fire prevention systems. While conforming to stringent fire safety regulations and insurance standards, the corrosion resistance guarantees dependable performance over time. Galvanized components have a longer service life and need less maintenance for municipal water distribution systems.

These fittings are often used in heating, ventilation, and air conditioning (HVAC) systems for circulating hot water, cold water, and steam. Long radius designs reduce system vibration and noise while minimizing energy usage due to their smooth flow characteristics. Process water and utility systems in chemical processing plants benefit from a combination of mechanical strength and resistance to corrosion.

Comparison Guide: Galvanized vs Other Elbow Pipe Fittings

The choice of materials has a major effect on the upfront investment and the operating expenses over time. Making educated decisions for particular applications and conditions requires knowledge of the performance characteristics of various fitting materials.

Galvanized vs Stainless Steel Performance

Despite its somewhat higher material costs, stainless steel provides greater corrosion resistance in harsh chemical conditions. For common industrial uses that do not need high levels of chemical resistance, galvanized fittings are a great investment. While offering similar performance in the majority of water, gas, and HVAC applications, the cost disparity often approaches 200-300%.

Even when exposed to typical outside weather, galvanized surfaces retain their lustre and usefulness. Stainless steel need cautious handling to avoid surface contamination and stains, while zinc coatings self-heals small scratches via sacrificial protection.

Long Radius vs Short Radius Flow Dynamics

Long radius layouts have major benefits when comparing flow efficiency. According to the pressure drop estimates, the comparable pipe length may be reduced by 30–40% when compared to alternatives with short radius. This results in enhanced system capacity without the need to increase pipe widths, which in turn reduces energy consumption in pumping applications.

Reducing erosion-corrosion during direction changes, smooth fluid flow properties that are compatible with NPT and BSPT are desirable. Wear caused by turbulence is reduced by the progressive curvature, which increases system life and decreases maintenance needs. Designing for industrial use, twin female elbows can withstand heat expansion without compromising joint integrity.

Selecting the Best Galvanized Female-Female 90° Elbow for Your Needs

It is important to thoroughly assess the system requirements, operating circumstances, and performance expectations when choosing the best fittings, such as galvanized female-female 90° long radius elbow pipe fittings. The decision-making process for engineering teams and procurement experts is impacted by several aspects.

Critical Selection Criteria

Compatibility with pressure ratings guarantees safe operation within the boundaries of the system's design. Class 300 designs can manage greater pressure needs up to 1000 PSI, while Class 150 fittings can handle normal applications up to 300 PSI. Pressure ratings and the choice of material for a certain application are both impacted by temperature.

Proper junction creation and avoidance of expensive field alterations are both guaranteed by thread standard compatibility. The thread angles used by BSPT are 55 degrees, whereas those used by NPT are 60 degrees, in accordance with American standards. Ensuring dependable sealing performance and preventing cross-threading damage are both achieved via proper matching.

Zhiyuan Malleable Steel Quality Excellence

After 26 years of dedicated casting R&D, Zhiyuan Malleable Steel is now the go-to brand for corrosion-proof 90° long radius fittings. All of the company's product lines are guaranteed to work reliably and to the highest standards according to the ISO 9001 quality system.

The manufacturing capabilities include a 30,000-ton yearly production capacity and more than 1,000 possible configurations. Every batch of manufacturing is double-checked for coating quality, dimensional correctness, and material qualities in state-of-the-art testing facilities. Through thorough technical assistance and dependable delivery performance, customer happiness is our utmost priority.

Conclusion

To improve system design and component selection for industrial applications, it is helpful to understand the radius parameters of galvanized female-female 90° long radius elbow pipe fittings and long radius elbows. Hydraulic benefits abound from the 1.5 times diameter radius, and galvanized coatings guarantee long-term durability even in harsh situations. System performance and dependability are maximized by expert installation procedures, excellent procurement, and proper material selection. Modern piping systems cannot function without these specialist fittings, which are crucial for industrial water/gas pipeline redirection because to their exceptional flow characteristics and corrosion resistance.

Partner with Zhiyuan Malleable Steel for Superior Galvanized Pipe Fittings

Zhiyuan Malleable Steel delivers exceptional quality galvanized female-female 90° long radius elbow pipe fittings backed by 26 years of manufacturing expertise and ISO 9001 certification. Our comprehensive product line includes over 1,000 specifications with CE, UL, and FM approvals for global applications. With 30,000-ton annual production capacity and standard product delivery within two hours, we ensure reliable supply for your industrial water/gas pipeline redirection projects. Experience our commitment to quality excellence and customer satisfaction through personalized technical support and competitive pricing as your trusted galvanized female-female 90° long radius elbow pipe fittings supplier. Contact zhiyuan@mifittings.com today to discuss your specific requirements and discover how our advanced manufacturing capabilities can optimize your piping system performance.

FAQ

What is the standard radius measurement for long radius elbows?

The standard radius for long radius elbows measures 1.5 times the nominal pipe diameter. A 4-inch elbow would have a 6-inch centerline radius, significantly larger than short radius alternatives that measure 1.0 times the diameter.

How does galvanizing compare to stainless steel for corrosion protection?

Galvanized coatings provide excellent corrosion protection for standard industrial environments at substantially lower cost than stainless steel. While stainless steel offers superior chemical resistance, galvanized fittings deliver comparable performance for water, gas, and HVAC applications.

Are these fittings suitable for high-pressure outdoor applications?

Yes, properly rated galvanized long radius elbows handle high-pressure outdoor applications effectively. Class 300 fittings accommodate pressures up to 1000 PSI while the galvanized coating provides excellent weather resistance for outdoor installations.

What thread standards are available for these fittings?

Galvanized female-female 90° long radius elbow pipe fittings are available in both NPT (National Pipe Taper) and BSPT (British Standard Pipe Taper) thread configurations, ensuring compatibility with different regional piping standards and existing system requirements.
