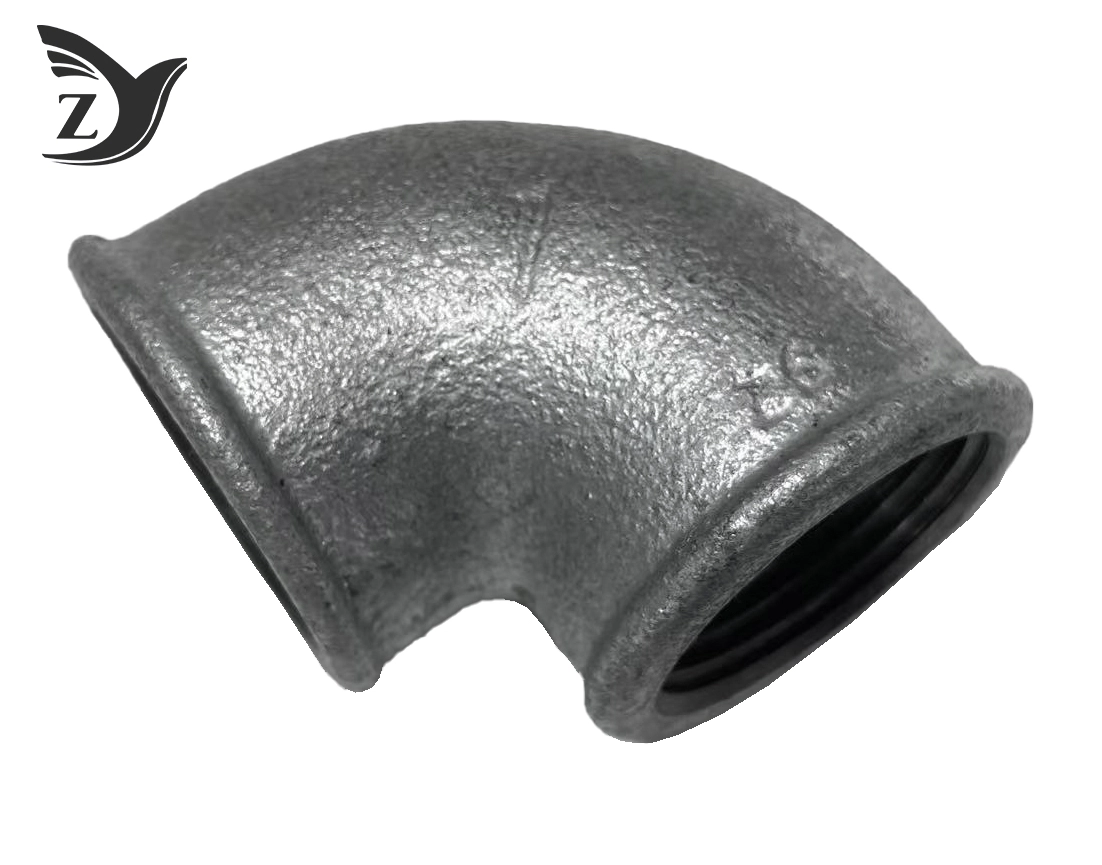

Hot-Dip Galvanized Round Edge BSPT 90° Elbow
2.Dual-threaded 90° pipe redirection, corrosion-resistant .
3.Industrial water/gas pipeline fitting .
4.Hot-dipped galvanized, precision-threaded .
5.High-strength, anti-rust malleable iron .
6.NPT/BSPT compatible, round-edge fitting .
7.Industrial-grade male-female 90° elbow .
8.Round-edge 90° bend, secure pipe connection
Description

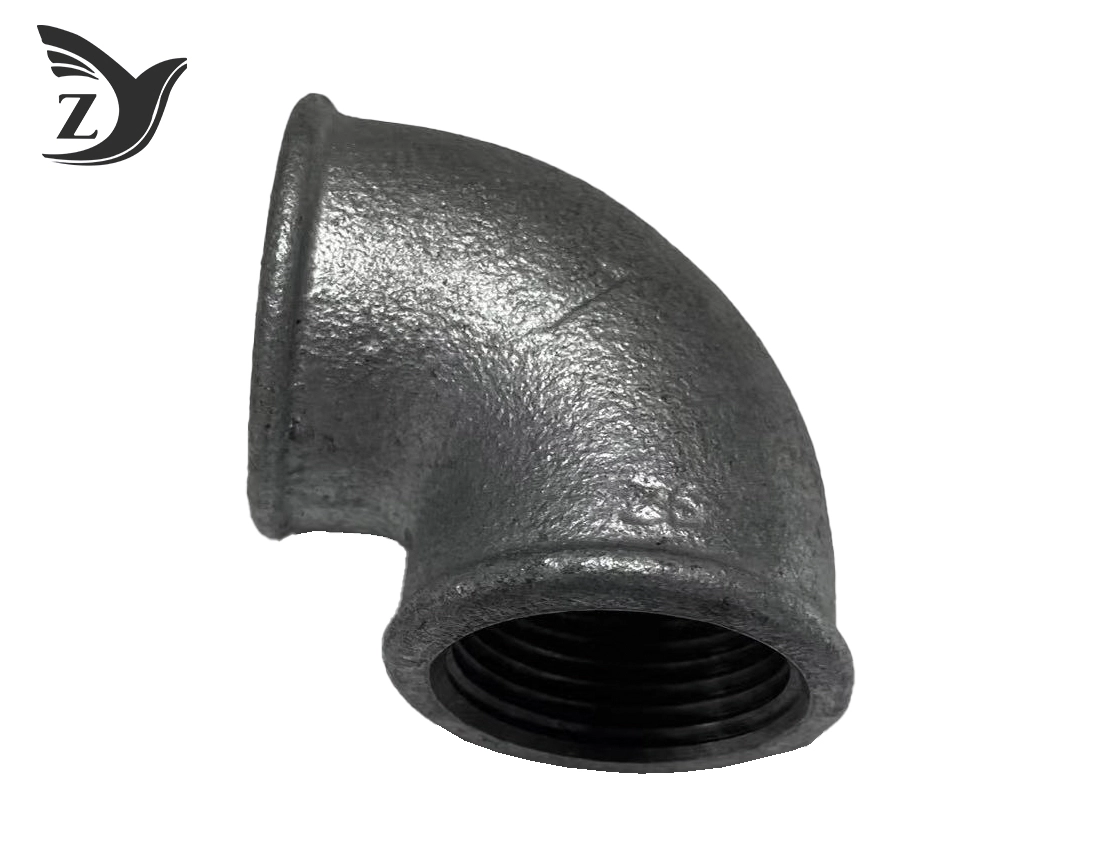

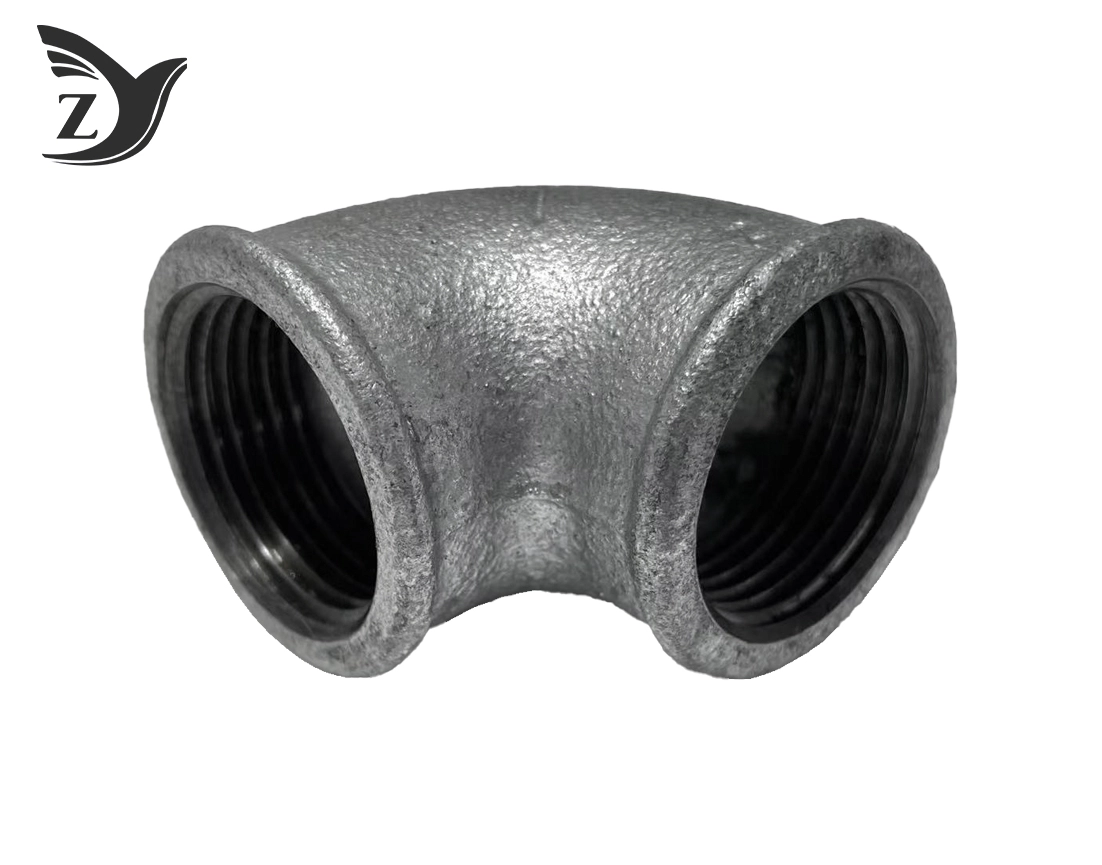

Hot-Dip Galvanized Round Edge BSPT 90° Elbow - Premium Malleable Iron Pipe Fitting
When you need reliable pipe direction change in tight spaces, our Hot-Dip Galvanized Round Edge BSPT 90° Elbow conveys prevalent execution. This high-specification flexible press fitting highlights one male string and one female string (M x F), killing the require for middle of the road pipe areolas. The strengthened beaded edge gives improved mechanical quality, whereas hot-dip galvanization guarantees amazing erosion resistance. Compatible with British Standard Pipe Taper (BSPT) threading standards, this fitting offers leak-proof fixing for requesting mechanical applications. You'll appreciate the space-saving plan and vigorous development that makes complex channeling establishments simpler.
Product Overview
Our road elbow fathoms basic establishment challenges in prohibitive spaces. The male-female setup interfaces specifically to other fittings without extra components. You get professional-grade execution with prevalent durability.
The beaded plan includes 20-30% more outspread quality compared to plain fittings. This support avoids splitting amid high-torque establishments. Your channeling frameworks remain secure beneath requesting conditions.
Hot-dip galvanization gives long-lasting erosion security. The zinc coating surpasses 70μm thickness, assembly universal guidelines. You can depend on reliable execution in challenging environments.
Technical Specifications
Material: Blackheart Malleable Iron (Grade KTH300-06)
Thread Standard: BSPT (British Standard Pipe Taper)
Thread Angle: 55° Whitworth profile
Taper Ratio: 1:16
Surface Treatment: Hot-dip galvanized
Working Pressure: 25 Bar (362 PSI) at temperatures under 120°C
Temperature Range: -20°C to 300°C
Angular Tolerance: ±0.5 degrees
Key Features
Space-Saving Plan: The male-female arrangement kills interfacing areolas, sparing important establishment space.
Beaded Support: Improved edge quality anticipates harm amid establishment and operation.
Superior Erosion Assurance: Hot-dip galvanizing gives great resistance to natural factors.
Precision Threading: Exact BSPT strings guarantee solid, leak-proof connections.
High Quality Development: Flexible press offers great ductility and affect resistance.
International Compatibility: BSPT threading works with European and Commonwealth piping standards.
Dimensions and Specifications Table
| Size | A (mm) | B (mm) | C (mm) | Weight (g) |
|---|---|---|---|---|
| 1/8" | 21 | 15 | 12 | 45 |
| 1/4" | 25 | 18 | 14 | 65 |
| 3/8" | 28 | 20 | 16 | 85 |
| 1/2" | 32 | 23 | 18 | 125 |
| 3/4" | 38 | 28 | 22 | 185 |
| 1" | 45 | 32 | 25 | 265 |
| 1-1/4" | 52 | 38 | 30 | 385 |
| 1-1/2" | 58 | 42 | 34 | 485 |
| 2" | 68 | 48 | 40 | 725 |
Materials and Surface Treatment
We make each fitting from premium blackheart moldable press. This fabric gives pliable quality surpassing 300 MPa with 6-8% stretching. You get dependable execution beneath warm development and framework vibration.
Our hot-dip galvanization prepare makes a defensive zinc coating. The treatment takes after ASTM A153 guidelines for reliable quality. This coating gives anodic assurance that self-heals minor surface damage.
The smooth inner wrap up minimizes grinding misfortunes in your channeling framework. Exact machining guarantees ideal stream characteristics and framework efficiency.
Standards and Certifications
- ISO 49 dimensional standards
- EN 10242 European compliance
- ISO 7/1 threading specifications

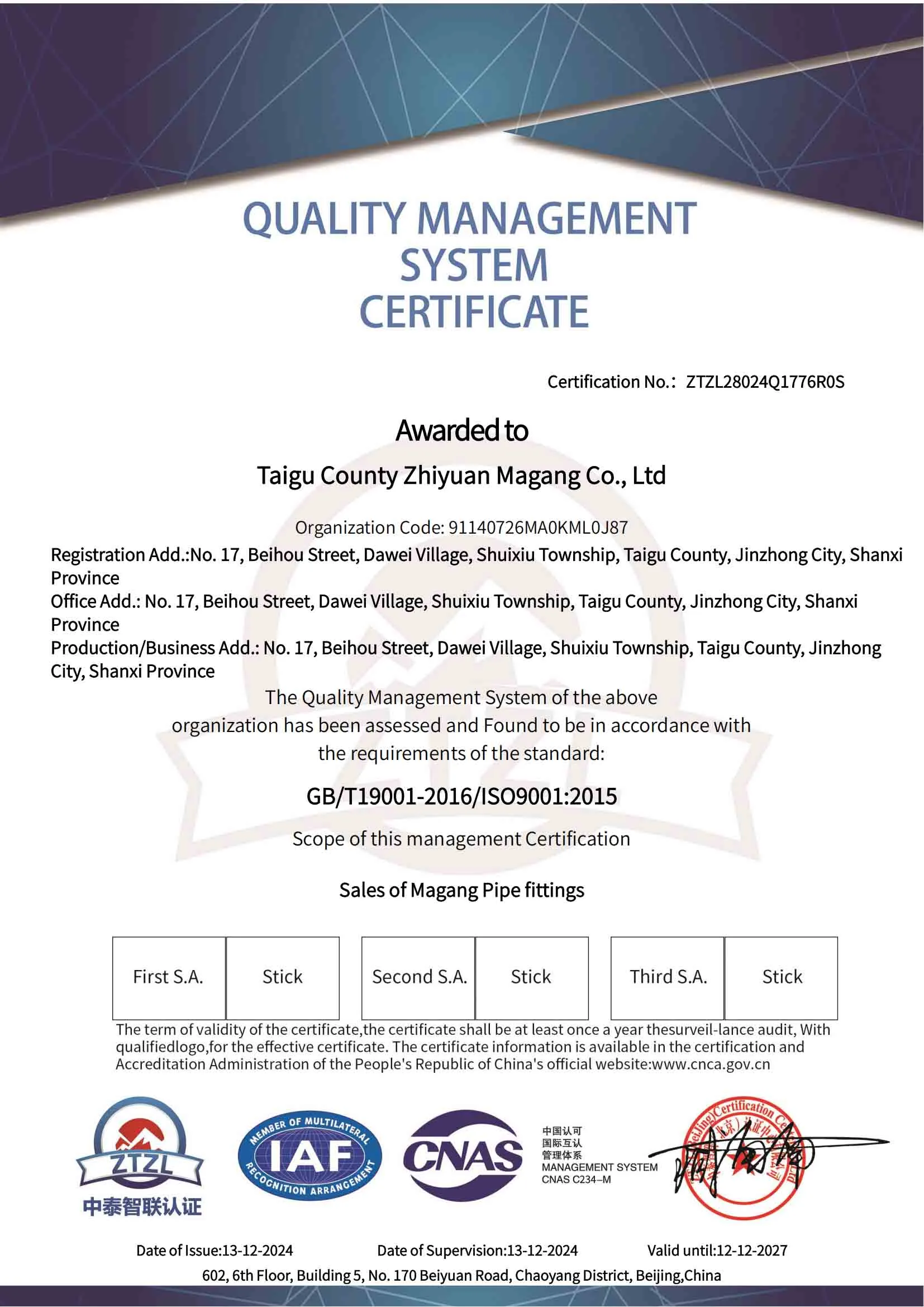

- ISO 9001 quality management system
Application Areas
HVAC and Fire Protection: Perfect for commercial building retrofits where space is limited. The Hot-Dip Galvanized Round Edge BSPT 90° Elbow connects directly to main runs and valves.
Industrial Handle Frameworks: Perfect for cooling lines in fabricating plants. Galvanized assurance handles forceful mechanical water chemistry.
Agricultural Water system: Great for field standpipes and rotate frameworks. Pliable press development stands up to water pound and physical impact.
Marine and Seaward: Reasonable for shipboard channeling where space and erosion resistance are critical.
Installation Instructions
- Clean all string surfaces some time recently assembly
- Apply fitting string sealant or tape
- Hand-tighten the male conclusion into the female fitting
- Use appropriate torques to total the connection
- Avoid over-tightening to avoid string damage
- Test the framework at working weight some time recently last use
Packaging and Shipping

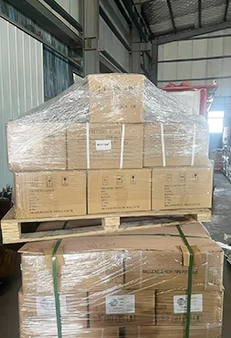

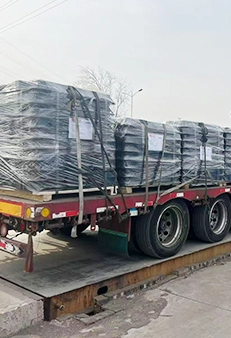

We bundle fittings in defensive cartons with froth embeds. Each piece gets person wrapping to avoid surface harm amid transport. Standard bundling incorporates 50-100 pieces per carton, depending on size.
Our coordinations group orchestrates productive shipping around the world. We work with solid carriers to guarantee convenient conveyance. You get following data for all shipments.
Quality Control
Every fitting experiences thorough testing some time recently shipment. We confirm dimensional precision, string quality, and surface wrap up. Weight testing guarantees each piece meets appraised specifications.
Our quality administration framework takes after ISO 9001 measures. Normal reviews keep up steady generation quality. You get items that meet the most elevated industry standards.
OEM and Customization Services
We offer custom fabricating for uncommon applications. Our building group can alter measurements, materials, or coatings to meet your necessities. Least arrange amounts apply for custom products.
Private labeling administrations are accessible for wholesalers. We can bundle items with your brand distinguishing proof. Contact our deals group for custom arrangement development.
Frequently Asked Questions
Q: Can I connect BSPT fittings to NPT threads?
A: No, BSPT uses 55° thread angles while NPT uses 60°. You need proper adapters for connection.
Q: What's the advantage of beaded edges?
A: Beaded rims provide superior resistance to mechanical damage and splitting during installation.
Q: What's the pressure rating for these fittings?
A: Class 150 rating allows 300 psi at ambient temperatures and 150 psi at steam temperatures.
Q: How does galvanizing perform in hot water?
A: Excellent performance up to 60°C. Higher temperatures may require special considerations.
Contact Us
Ready to enhance your piping systems with premium Hot-Dip Galvanized Round Edge BSPT 90° Elbow fittings? Our technical team provides expert support for your project requirements.
Contact us at zhiyuan@mifittings.com for product specifications, pricing, and technical assistance. We're committed to delivering quality solutions that exceed your expectations.
