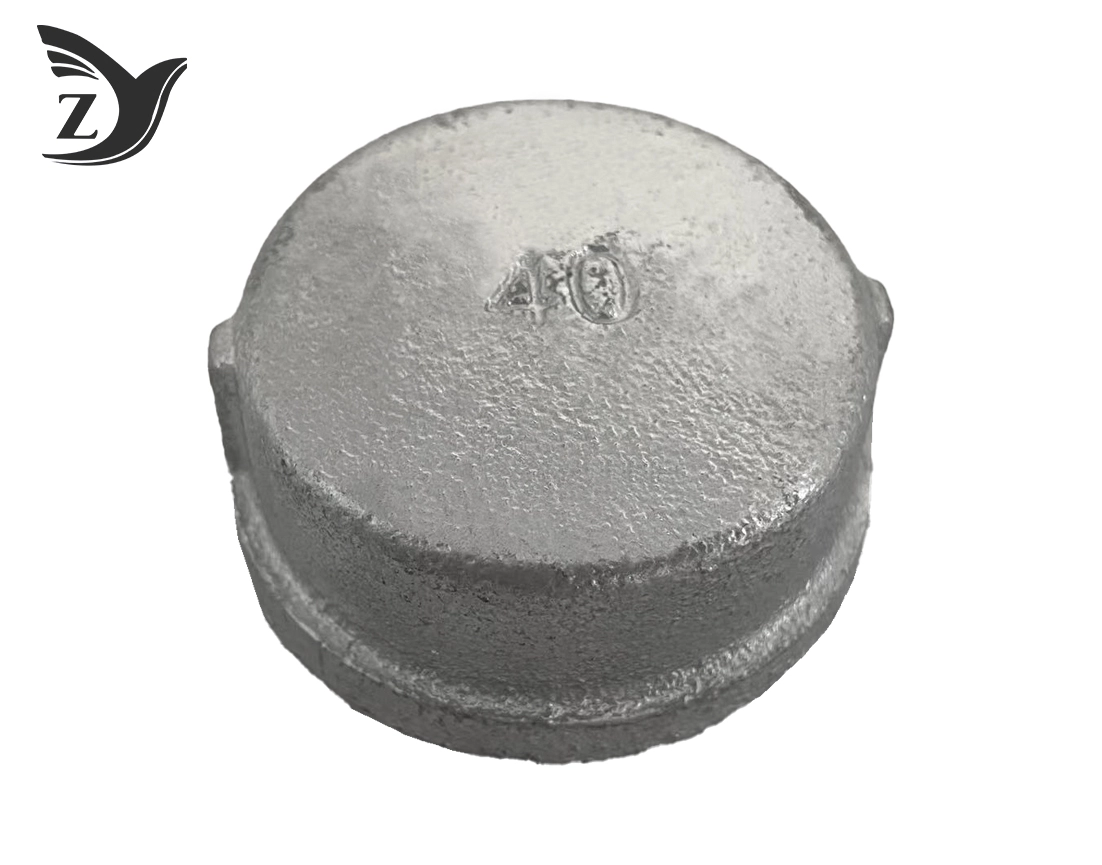

NPT Galvanized Pipe Cap Pipe Fittings
2.Threaded pipeline seal, corrosion-resistant .
3.Industrial water/gas pipeline closure .
4.Hot-dipped galvanized, precision-threaded .
5.High-strength, anti-rust malleable iron .
6.NPT/BSPT compatible, secure sealing .
7.Industrial-grade pipe end cap .
8.Durable, corrosion-proof pipeline cap
Description

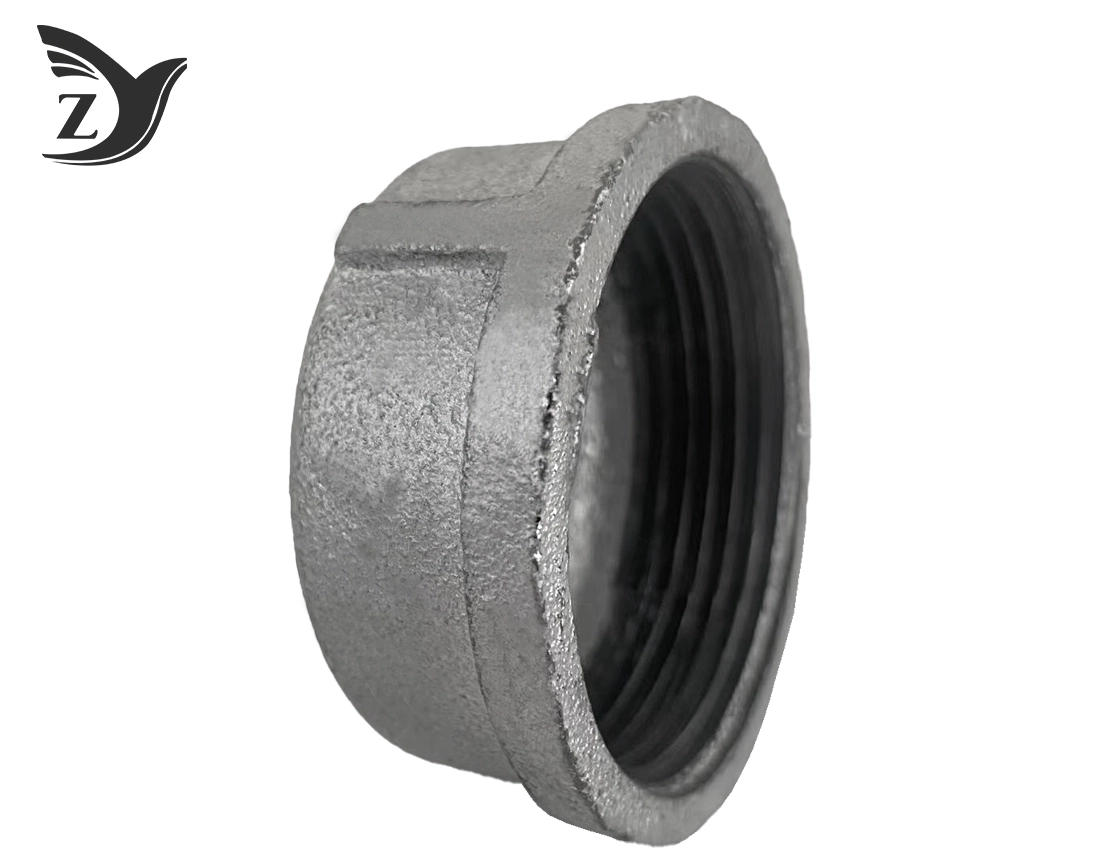

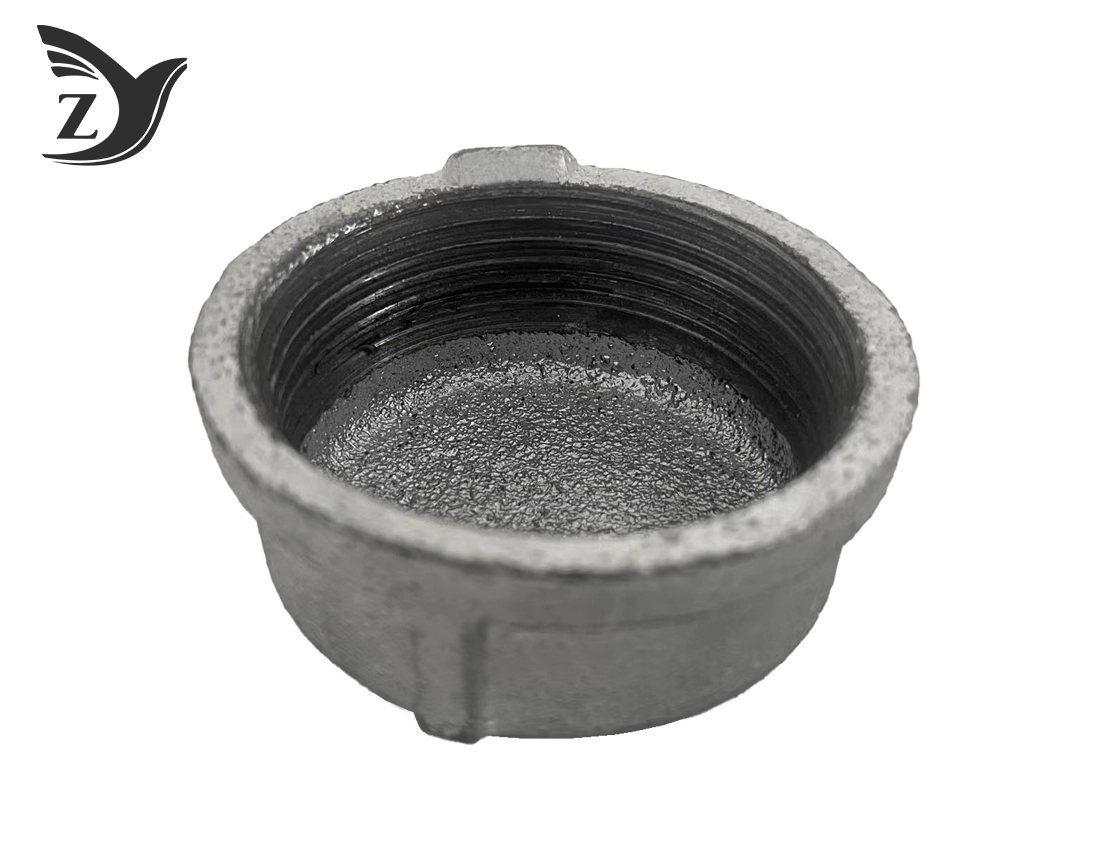

NPT Galvanized Pipe Cap Pipe Fittings - Industrial Grade Pipeline Closure Solutions
When you need reliable pipeline termination solutions, NPT Galvanized Pipe Cap Pipe Fittings deliver the performance your industrial applications demand. These specialized components are engineered to terminate pipe runs by screwing onto male pipe threads, providing a secure and leak-proof seal. Our galvanized pipe caps feature precision-machined NPT (National Pipe Taper) threads that meet ANSI/ASME B1.20.1 benchmarks, guaranteeing idealize compatibility with your existing pipeline frameworks. The hot-dip galvanized coating gives predominant erosion resistance, making these fittings perfect for both indoor and open air applications where solidness things most.
At Shanxi Taigu Zhiyuan Malleable Iron Company, we've been idealizing our fabricating forms for over 18 a long time. Our fittings are created from high-quality moldable press and experience thorough quality control to guarantee reliable execution in requesting mechanical environments.
Technical Specifications
Our pipe caps are fabricated to surpass industry measures. Each fitting highlights a 60-degree string point with a exact 1-in-16 decrease that makes a mechanical seal through string impedances. The flexible press development gives fabulous pliable quality whereas keeping up the adaptability required for stress-free installation.
| Specification | Value |
|---|---|
| Thread Standard | NPT (ANSI/ASME B1.20.1) |
| Thread Angle | 60 degrees |
| Taper Ratio | 1 inch per 16 inches |
| Material | Malleable Iron (ASTM A197) |
| Tensile Strength | Min 40,000 psi |
| Surface Treatment | Hot-Dip Galvanization |
| Coating Thickness | Min 86 microns |
| Pressure Rating | Class 150 (300 psi WOG) |
Key Features
Your pipeline frameworks merit components that won't let you down. Our galvanized pipe caps offer a few preferences that set them separated from standard alternatives:
- Superior Erosion Security: The zinc coating acts as a conciliatory obstruction, expanding benefit life by 20-50 years
- Precision Threading: Machined to correct NPT determinations for leak-tight seals
- High-Strength Development: Moldable press gives fabulous toughness and affect resistance
- Easy Establishment: Standard NPT strings guarantee compatibility with existing systems
- Temperature Safe: Performs dependably over wide temperature ranges
Dimensions and Specifications Table
| Size (NPT) | A (Length) | B (Width) | Thread Length | Weight (kg) |
|---|---|---|---|---|
| 1/8" | 12mm | 15mm | 8mm | 0.015 |
| 1/4" | 14mm | 19mm | 9mm | 0.025 |
| 3/8" | 16mm | 22mm | 10mm | 0.035 |
| 1/2" | 18mm | 27mm | 12mm | 0.055 |
| 3/4" | 20mm | 33mm | 14mm | 0.085 |
| 1" | 22mm | 42mm | 16mm | 0.125 |
| 1-1/4" | 24mm | 48mm | 18mm | 0.185 |
| 1-1/2" | 26mm | 55mm | 20mm | 0.245 |
| 2" | 28mm | 67mm | 22mm | 0.385 |
Materials and Surface Treatment
We utilize premium moldable press that meets ASTM A197 measures for all our pipe caps. This fabric choice gives the idealize adjust of quality and workability. The hot-dip galvanization handle takes after ASTM A153 determinations, making a metallurgical bond between the zinc coating and the base metal.
The galvanizing handle includes cleaning, fluxing, and inundating the fittings in liquid zinc at 840°F. This makes a strong coating that gives both boundary and cathodic assurance against corrosion.
Standards and Certifications
Our NPT Galvanized Pipe Cap Pipe Fittings comply with multiple international standards:
- ANSI/ASME B1.20.1 (Thread Standards)
- ASTM A197 (Malleable Iron)
- ASTM A153 (Galvanizing Specifications)
- ASME B16.3 (Dimensional Standards)

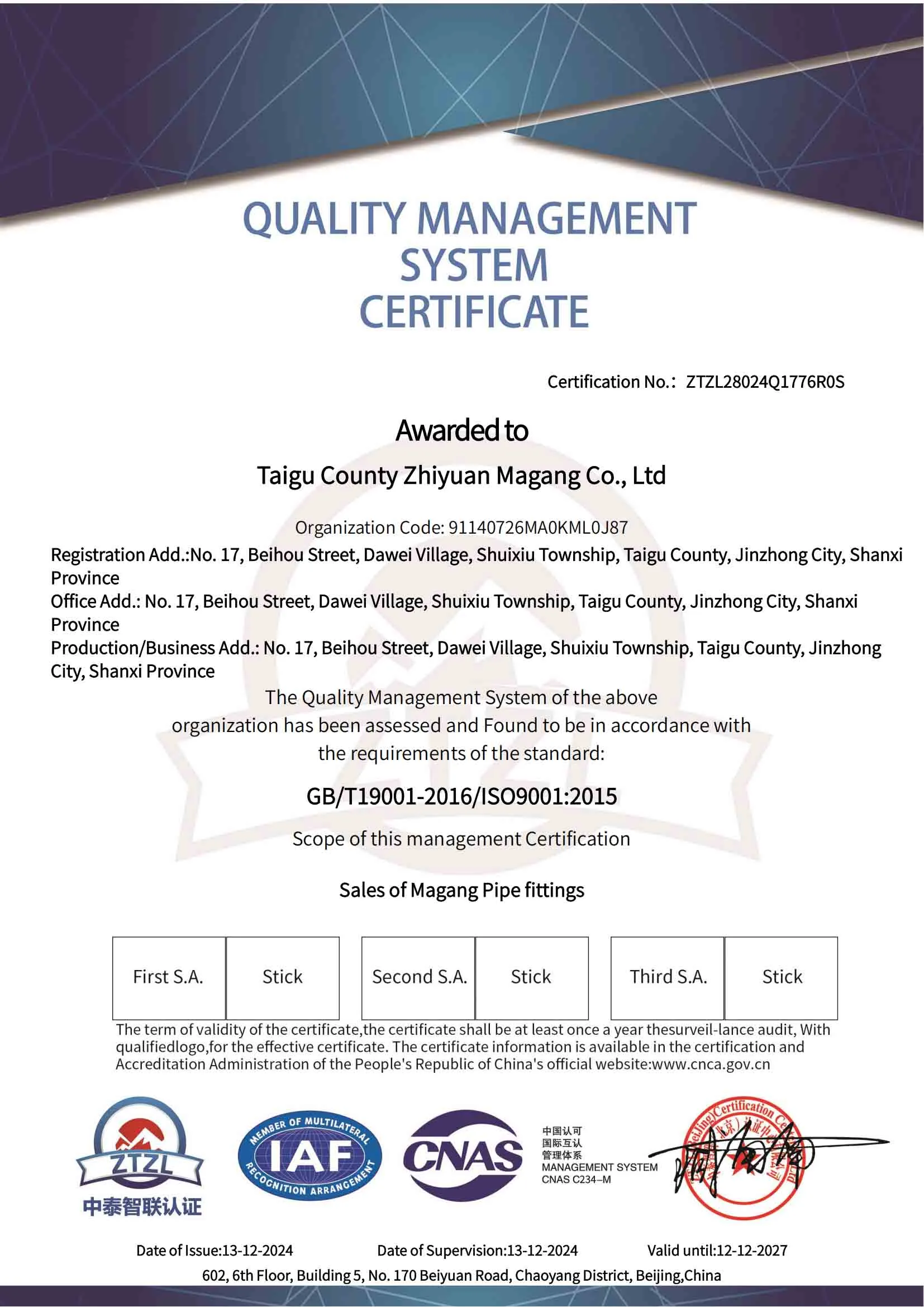

- ISO 9001 Quality Management System
Application Areas
These flexible fittings serve basic parts over different industries:
Fire Security Frameworks: Utilized to seal test valves and waste focuses in standpipe and sprinkler frameworks. The galvanized coating anticipates seizure due to rust, guaranteeing caps can be evacuated amid maintenance.
Agricultural Water system: Basic in rustic water system systems where channels confront soil causticity and dampness. The defensive coating avoids spills that may compromise framework pressure.
Oil & Gas Conveyance: Idealize for ending unused lines or future extension ports in low-pressure gas frameworks. The NPT decrease guarantees gas-tight seals basic for security compliance.
Plumbing and HVAC: Perfect for capping unused outlets amid development or redesign projects.
Installation Instructions
Installing your pipe caps accurately guarantees ideal performance:
- Clean the male pipe threads thoroughly
- Apply PTFE tape or approved pipe compound
- Thread the cap onto the pipe by hand until snug
- Tighten with a pipe wrench, typically 2-3 additional turns
- Do not over-tighten as this may damage the threads
Remember that NPT strings make both mechanical and fixed associations when legitimately introduced with fitting string sealants.

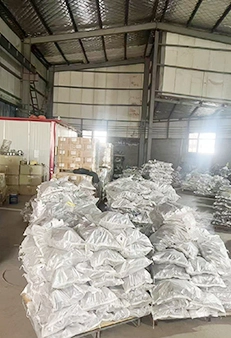

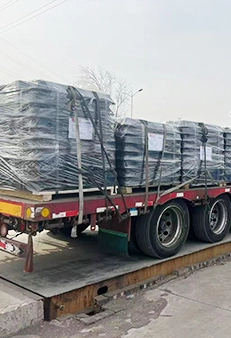

Packaging and Shipping
We package our NPT Galvanized Pipe Cap Pipe Fittings in defensive cartons to anticipate harm amid travel. Each bundle incorporates nitty gritty details and establishment rules. Our proficient coordinations organize guarantees convenient conveyance to your location.
Standard bundling incorporates dampness obstructions to ensure the galvanized wrap up amid capacity and transport.

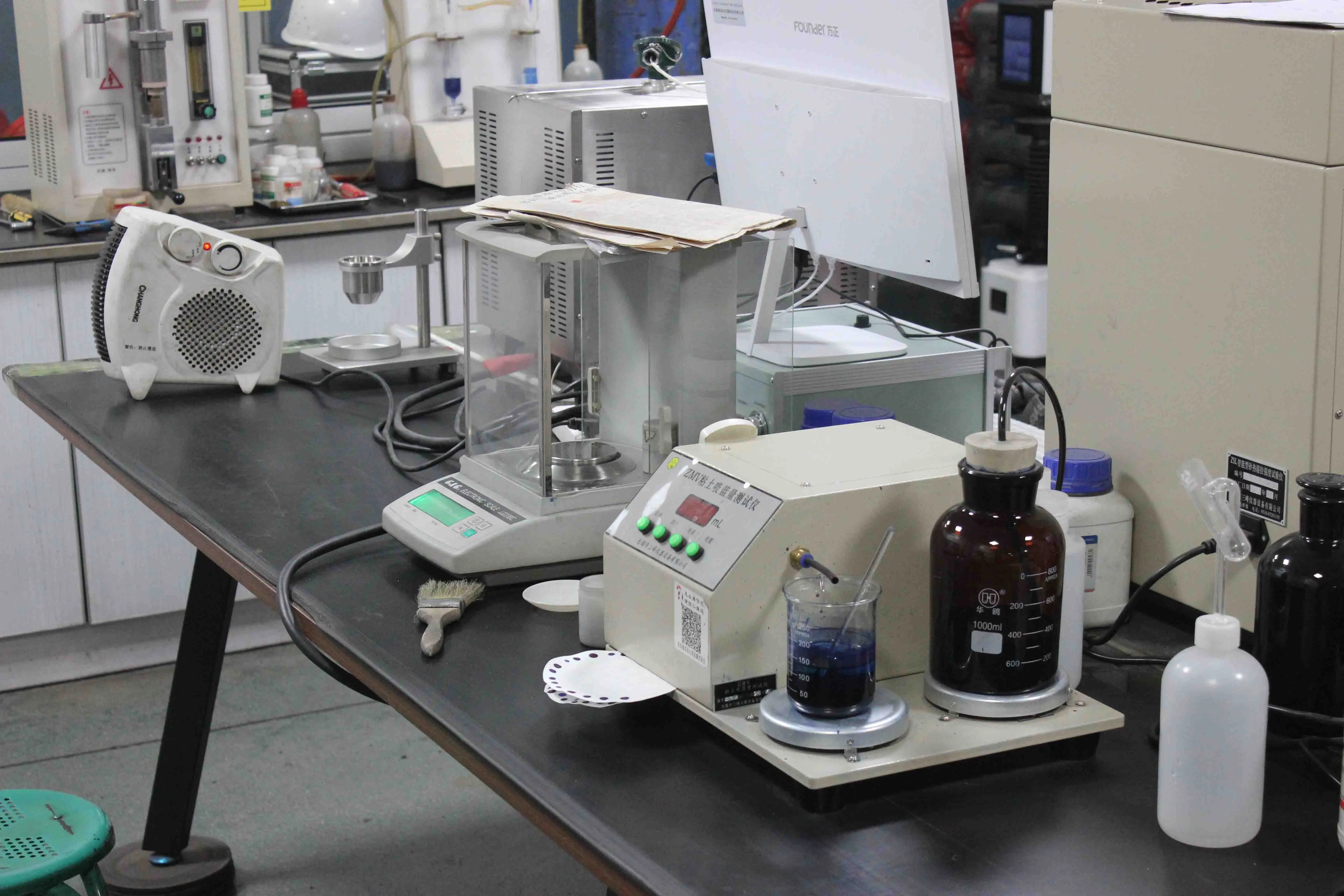

Quality Control
Every fitting experiences comprehensive testing some time recently clearing out our office. Our quality control prepare incorporates dimensional confirmation, coating thickness testing, and weight testing to guarantee each component meets our demanding standards.
With our yearly generation capacity of 30,000 tons and over 500 talented representatives, we keep up steady quality over all item lines.
OEM and Customization Services
We offer customization administrations to meet your particular necessities. Whether you require extraordinary measurements, diverse coating choices, or custom stamping, our building group can work with you to create arrangements that fit your correct needs.
Frequently Asked Questions
Q: Can these caps be used with stainless steel pipes?
A: We recommend using stainless steel fittings with stainless pipes to prevent galvanic corrosion.
Q: What's the difference between Class 150 and Class 300 ratings?
A: Class 300 caps have thicker walls and longer thread engagement for higher pressure applications.
Q: Do I need thread sealant?
A: Yes, PTFE tape or pipe dope is required to ensure a complete seal.
Q: How long will the galvanized coating last?
A: In most environments, you can expect 20-50 years of corrosion protection.
Contact Us
Ready to secure your pipeline systems with reliable NPT Galvanized Pipe Cap Pipe Fittings? Our experienced team is here to help you select the right components for your application.
Contact us today at zhiyuan@mifittings.com for technical specifications, pricing, or to discuss your specific requirements. We're committed to providing the quality and service your projects deserve.
