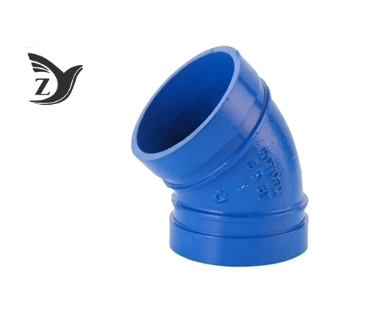

Water Grooved 45° Elbow - Professional Piping Solution
Transform your piping systems with our precision-engineered Water Grooved 45° Elbow. This basic fitting component changes liquid stream heading by 45 degrees in furrowed channeling frameworks. Not at all like conventional welded associations, our elbow employments progressed mechanical joining innovation. You'll kill unsafe hot work on-site whereas diminishing establishment time by up to 50%. The product creates self-restrained joints that handle weight, vacuum, and outside powers with confidence.
Our 26 a long time of fabricating mastery guarantees you get predominant quality fittings. Each elbow experiences thorough testing some time recently taking off our 50,000 square meter office in Shanxi Province.
Technical Specifications
Materials and Surface Treatment
Primary Material: High-strength Ductile Iron (ASTM A536 Grade 65-45-12)
- Minimum tensile strength: 65,000 psi
- Superior impact resistance compared to cast iron
- Excellent ductility for demanding applications
Surface Treatment Options:
- Fusion Reinforced Epoxy (FBE): Prevalent erosion resistance for consumable water systems
- Hot-Dip Galvanization: Perfect for mechanical and open air environments
- Electrophoretic Paint: Standard fire assurance distinguishing proof coating
Key Features
✓ Quick Establishment: Mechanical association kills welding requirements
✓ Stretch Help: Obliges warm extension and vibration
✓ Tall Weight Rating: Withstands 300-1000 psi working pressure
✓ Smooth Stream Plan: Lower grinding misfortune than sharp mitered elbows
✓ Flexible Applications: Appropriate for water, HVAC, and fire assurance systems
✓ Upkeep Neighborly: Simple dismantling for framework maintenance
Dimensions and Specifications Table
| Size (inches) | Center-to-End (mm) | Working Pressure (psi) | Weight (kg) | Groove Width (mm) |
|---|---|---|---|---|
| 2" | 38 | 1000 | 0.8 | 6.4 |
| 2.5" | 44 | 900 | 1.2 | 6.4 |
| 3" | 51 | 900 | 1.6 | 6.4 |
| 4" | 64 | 800 | 2.8 | 6.4 |
| 5" | 76 | 700 | 4.2 | 6.4 |
| 6" | 89 | 600 | 5.8 | 6.4 |
| 8" | 114 | 500 | 9.5 | 6.4 |
| 10" | 140 | 400 | 14.2 | 6.4 |
| 12" | 165 | 300 | 20.5 | 6.4 |
Standards and Certifications
- ANSI/AWWA C606 groove specifications
- ASTM A536 material standards
- ISO 9001:2015 quality management
- NSF-61 certified coatings available
Application Areas
Commercial Fire Protection Systems
Navigate structural obstacles in ceiling spaces efficiently. Our Water Grooved 45° Elbow diminishes water powered grinding misfortune in high-rise sprinkler systems. UL/FM certification guarantees code compliance.
HVAC Water Circulation
Handle warm development cycles in chilled and warming water circles. The mechanical association avoids push breaks common in inflexible welded systems.
Industrial Water Treatment
Rapid dismantling capabilities suit maintenance-intensive situations. Withstands seismic movement and ground settling without leaking.
Installation Instructions
- Pipe Planning: Guarantee groove profundity meets ANSI/AWWA C606 standards
- Surface Cleaning: Expel all flotsam and jetsam from groove and elbow fixing surfaces
- Gasket Arrangement: Position gasket accurately in coupling housing
- Assembly: Adjust elbow with channeling and introduce coupling
- Tightening: Take after manufacturer's torque determinations for jolt connections
- Inspection: Confirm pad-to-pad contact and appropriate gasket seating
Packaging and Shipping
Standard bundling incorporates defensive wrapping and durable cartons. We orchestrate productive coordinations from our Shanxi facility with airplane terminal get to inside 30 minutes. Custom bundling accessible for huge orders.
Quality Control
Our comprehensive inspection process includes:
- Dimensional confirmation of center-to-end measurements
- Metallographic investigation guaranteeing legitimate bendable press properties
- Hydrostatic weight testing at 1.5x appraised pressure
- Coating thickness estimation (least 80 microns)
- Visual assessment for surface abandons and casting quality
Every Water Notched 45° Elbow meets our strict quality guidelines some time recently shipment.
OEM and Customization Services
Leverage our 30,000-ton yearly capacity for custom prerequisites. Our building group provides:
- Custom measurements and specifications
- Special coating requirements
- Private labeling services
- Technical meeting for one of a kind applications
Frequently Asked Questions
Q: Are these elbows suitable for potable water?
A: Yes, with NSF-61 certified epoxy coating and appropriate EPDM gaskets.
Q: How does flow restriction compare to 90° elbows?
A: Significantly lower resistance - roughly half the equivalent length for friction calculations.
Q: Can these handle pump vibration?
A: Absolutely. The grooved system design dampens vibration and protects piping networks.
Contact Us
Ready to upgrade your piping systems? Our technical team stands ready to assist with Water Grooved 45° Elbow selection and specifications.
Email: zhiyuan@mifittings.com
Experience the difference that 26 years of manufacturing expertise makes. Contact us today for competitive pricing and fast delivery of premium quality fittings.
