Black Square Face Cross Pipe Fittings vs. Cross Pipe Fitting PVC

If you need to choose pipe fittings for an industrial system, black square face cross pipe fittings or PVC cross fittings have big effects on how reliable, safe, and cheap the system will be in the long run. Black square face cross fittings are made from ductile iron and have precise NPT or BSPT threads. They are very strong and can withstand high pressures, making them perfect for systems that distribute water, gas, steam, and oil. PVC cross fittings, on the other hand, are light, inexpensive, and good for places with low pressure and a lot of rust. Knowing these differences helps procurement managers match the qualities of materials with what's needed for operations. This makes sure that projects like fire protection, city infrastructure, and industrial pipelines work at their best and follow all the rules.

Black Square Face Cross Pipe Fittings and PVC Cross Pipe Fittings

Core Design and Material Composition

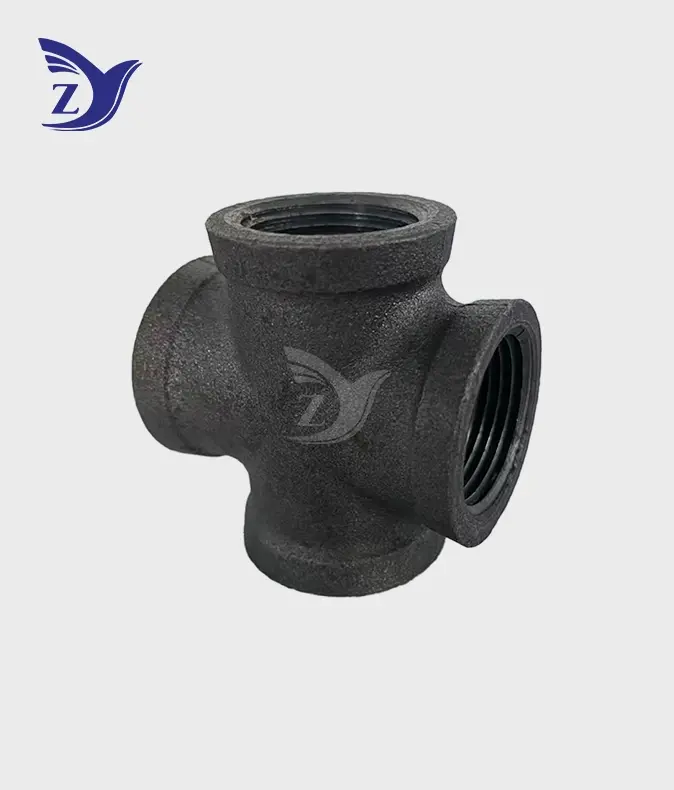

Black square face cross pipe fittings are 4-way connections made from malleable iron that are precisely designed to meet standards such as ASTM A197, ISO 49, and EN 10242. The "square face" name refers to the strengthened, flat-edged hole that makes it easier to use a wrench and keeps the structure strong during high-torque installation. These industrial threaded fittings have either NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper) threads, which, when combined with the right jointing chemicals, make thread interference that creates pressure-tight bonds. The black finish, which is an oil or bituminous covering that stops rust, keeps them from oxidizing and makes them perfect for uses with gas, oil, non-potable water, and steam where zinc flaking from galvanization could get into the flow media and make it dirty.

Polyvinyl chloride plastics are used to make PVC cross pipe fittings, which are lightweight and naturally resistant to chemicals. These fittings usually have solvent-welded or threaded connections, and they work great in places where saltwater or chemicals that break down metal are a problem. Because its inside is smooth, PVC is often used in drainage, irrigation, and some chemical processing tasks because it reduces friction losses and stops biological growth.

Specifications and Industrial Applications

It is common for malleable iron cross fittings to have standard sizes between ¼-inch and 6 inches. Their tensile strength can reach 300–350 MPa, and they can stretch more than 5%. They can handle working pressures of up to 25 bar (362 psi) at room temperature and keep their shape at temperatures close to 300°C. PVC fittings are usually used in systems that work below 60°C and can handle pressures between 5 and 16 bar, based on the schedule number (Schedule 40 or Schedule 80). Because they are very accurate in their measurements, black malleable iron fittings work with steel, brass, and iron pipe systems in fire control networks, HVAC installations, water distribution systems for cities, and petrochemical process lines.

Key Performance and Material Comparison

Durability and Mechanical Strength

In comparison to PVC options, the high-strength, corrosion-resistant 4-way fitting made from cast iron is more mechanically resilient. The pearlitic or ferritic microstructure of malleable iron takes impact energy and doesn't break easily when heated and cooled quickly, which is very important in steam systems where temperatures change quickly. The precision-threaded cross design spreads stress evenly across four connection points, stopping areas of high strain that could lead to cracks. Test results show that fittings made of malleable iron can withstand repeated pressure spikes of more than 150% of their stated capacity without losing their structural integrity.

PVC fittings, while offering excellent chemical inertness, exhibit reduced impact resistance at low temperatures and become brittle when exposed to UV radiation over extended periods. Their maximum service temperature limitation restricts use in heating systems or processes involving elevated temperatures. The thermoplastic nature of PVC also means dimensional stability can degrade under sustained mechanical loading, potentially compromising joint integrity in high-vibration environments.

Corrosion Resistance and Environmental Adaptability

Black square face cross pipe fittings that can be shaped have coatings that keep the iron from rusting in storage and while they are being installed. Once put together with the right pipe dope or PTFE tape, the sealed threads keep water out, so they will work reliably for decades in wet settings and underground installs. The material can handle being exposed to natural gas, fuel products, and industrial chemicals that are common in factories.

Because it is so resistant to acids, bases, and salts, PVC is the best material for chemical handling systems where metal rust would cause them to fail faster. But some organic solvents can break down PVC, and UV exposure for a long time needs protection coatings or burying to keep it from becoming weak. Because it can't handle high temperatures or pressures, the material can't be used in harsh industrial settings.

Sealing Efficacy and Installation Characteristics

Through tapered thread interference, the NPT/BSPT suitable square-edge cross makes seals that you can count on. When you use the right sealants with the 60-degree side angle (NPT) or 55-degree angle (BSPT), the contact gets tighter as the links move forward. This makes sure that the system doesn't leak gas. The square face design makes the grip more stable and lowers the risk of the fitting deforming during installation, which can happen with lighter-duty beaded fittings. This design feature is especially useful when putting together complicated multi-branch pipe setups that need to be lined up perfectly at an angle.

Most PVC fittings use liquid cement to molecularly bond the surfaces that fit together. This makes lasting joints that don't come apart under pressure. To keep threaded PVC joints from breaking, you need to be careful with the torque because too much force can damage the polymer structure. PVC is easy to install, which makes it a good choice for situations where speed and low labor costs are important.

Advantages and Limitations: Making the Right Choice

Strengths of Black Malleable Iron Cross Fittings

The black square face cross pipe fittings' industrial-grade form solves important problems in heavy-duty settings. It can handle high pressures for long periods of time, and it can also handle a wide range of temperatures, so it can be used for both steam distribution and hot water movement. The bendable nature of the material soaks up vibration energy, which lowers the stress on connecting pipes and increases the system's life span. The fire resistance of malleable iron is an important factor for fire suppression systems because it makes sure that parts keep their structural integrity during emergency action when temperatures rise quickly.

Installation teams value the wrench engagement provided by square face geometry, enabling proper torque application without slippage. International project requirements can be met by both NPT and BSPT threading, simplifying procurement for global building projects. These fittings have been used for decades and have been shown to work well. In properly kept systems, some installations have been used for more than 50 years.

Constraints and Considerations

When moving and storing malleable iron parts, they need to be handled carefully so that they don't break. The material is much heavier than PVC, which makes shipping more expensive and needs the right support for installation. Coatings on the surface need to be protected from wear and tear that could expose the base metal to rust. If parts don't get extra protective coatings, systems that carry highly acidic or chlorinated water may experience faster internal rust.

PVC Fitting Benefits and Restrictions

When cost is an issue and the working conditions are within the material's performance range, PVC cross valves work very well. Their resistance to rusting means that rust won't get into drinkable water systems, and their light weight makes them easier to handle and requires less installation work. The material's ability to block electricity is useful for systems that need parts that don't carry electricity. Because it doesn't react with chemicals, PVC can be used for laboratory draining, pool plumbing, and some industry wastewater uses.

However, PVC's temperature and pressure limitations exclude it from many industrial applications. The material cannot accommodate thermal expansion as effectively as metal fittings, potentially leading to joint stress in systems experiencing temperature fluctuations. UV damage necessitates protection for outdoor installations, and the permanent nature of solvent-welded joints complicates future modifications or repairs. Impact vulnerability increases the risk of damage during installation or from operational incidents.

Conclusion

Whether to use black square face cross pipe fittings or PVC alternatives relies on the needs of the job, the climate, and the cost over the whole life of the product. For fire prevention, steam distribution, gas pipes, and industrial process systems, malleable iron crosses are the best choice because they are strong, can handle high pressures, and can work in a wide range of temperatures. Their decades of service have shown that they are reliable, which makes the higher original cost worth it because they require less upkeep and last longer between replacements. When used in low-pressure, room-temperature situations where chemical protection and ease of installation are sufficient, PVC valves work well. When purchasing a system, people in charge must carefully look at all of its specs, not just the price, but also how reliable it is, how safe it needs to be, and how well it will work in the long run. The project will be successful if it works with well-known makers that offer certified goods, expert help, and reliable logistics.

FAQs

What distinguishes square face design from standard beaded cross fittings?

Instead of round beads, the square face design has flat, reinforced sides at the connection places. This shape makes the fitting 20–30% more resistant to mechanical stress during installation and use, and the better wrench grip keeps the fitting from deforming when high force is applied.

Can black malleable iron cross fittings and PVC components integrate within the same system?

Even though it is technically possible with the right transition devices, mixing materials could cause problems with how well they work together. Different rates of thermal growth can put stress on parts, and galvanic corrosion can happen where metals and plastics meet. Engineers should try to keep these kinds of combinations to a minimum by separating materials by system zones whenever they can.

Which factors most critically influence fitting selection for fire suppression systems?

For fire safety purposes, parts must be able to keep the structure intact under high temperatures and fast pressurization during an emergency. Important selection factors include compliance with regulations (UL and FM approval), pressure values that go beyond what the system needs, and corrosion resistance that guarantees long-term dependability.

Partner with Zhiyuan Malleable Steel for Reliable Black Square Face Cross Pipe Fittings

If purchasing teams are looking for a reliable seller of black square face cross pipe fittings, Zhiyuan Malleable Steel can help them in many ways. Our factory, which has been open since 2006, uses ISO 9001 quality methods and 26 years of experience in casting to make goods that meet CE, UL, and FM standards. We can handle both standard needs and custom OEM/ODM projects. Our yearly capacity is 30,000 tons, and we have over 1,000 product specs. Our double-layer cardboard packing keeps items safe while they're being shipped internationally, and we have a lot of stock, so we can serve urgent orders within two hours. Our dedication to replacing any defective goods, engineering help, and low bulk prices make the procurement process easy. You can talk to our team about your project needs and get full quotes for black square face cross pipe fittings that meet your exact requirements by emailing q1236800000@gmail.com or visiting zymalleablepipefitting.com.

References

1. American Society of Mechanical Engineers. (2022). ASME B16.3: Malleable Iron Threaded Fittings - Dimensional Standards and Pressure Ratings. New York: ASME Press.
2. British Standards Institution. (2021). ISO 49:2020 - Malleable Cast Iron Fittings Threaded to ISO 7-1. London: BSI Standards Publication.
3. ASTM International. (2023). ASTM A197/A197M-20: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM International.
4. National Fire Protection Association. (2022). NFPA 13: Installation Standards for Sprinkler Systems - Pipe and Fitting Requirements. Quincy: NFPA Publications.
5. Johnson, R.M., & Patterson, K.L. (2021). Piping Systems Engineering: Material Selection and Performance Analysis for Industrial Applications. Boston: Technical Publishing Group.
6. European Committee for Standardization. (2020). EN 10242:2019 - Threaded Pipe Fittings in Malleable Cast Iron. Brussels: CEN Publications.
