NPT Galvanized Reducing Male Nipple Pipe Fittings
2.Threaded reducer, industrial pipe diameter transition .
3.Water/gas pipeline size-adapting connection .
4.Hot-dipped galvanized, precision-threaded iron fitting .
5.High-strength, anti-rust reducing male-thread part .
6.NPT/BSPT compatible, corrosion-resistant reducer .
7.Industrial-grade, male-thread pipe size adapter .
8.Durable reducing fitting for pipeline adaptation
Description

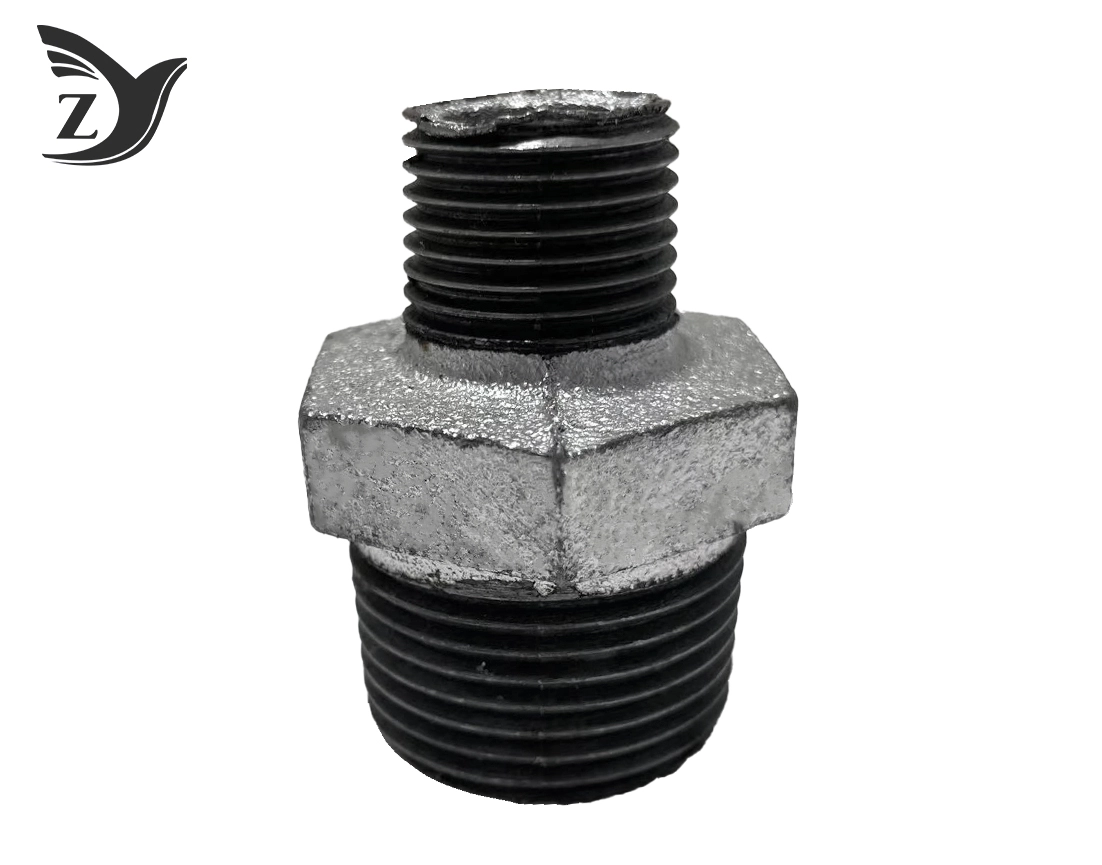

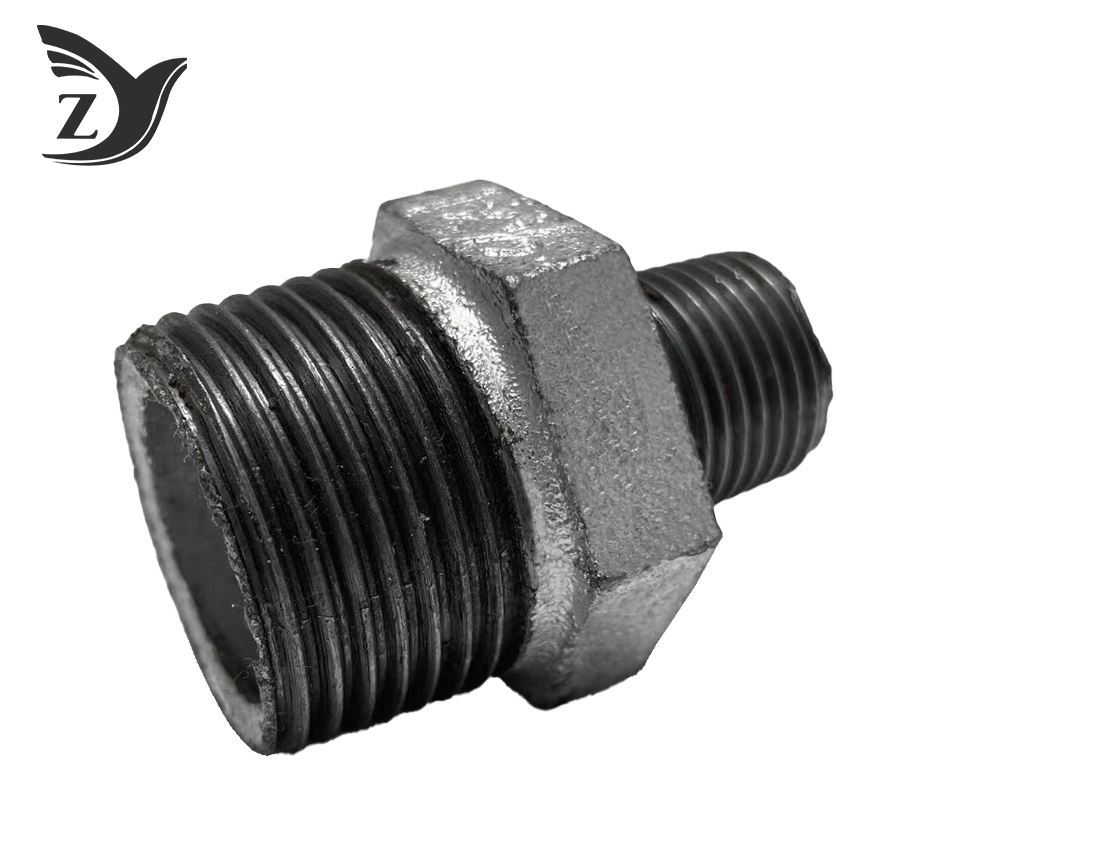

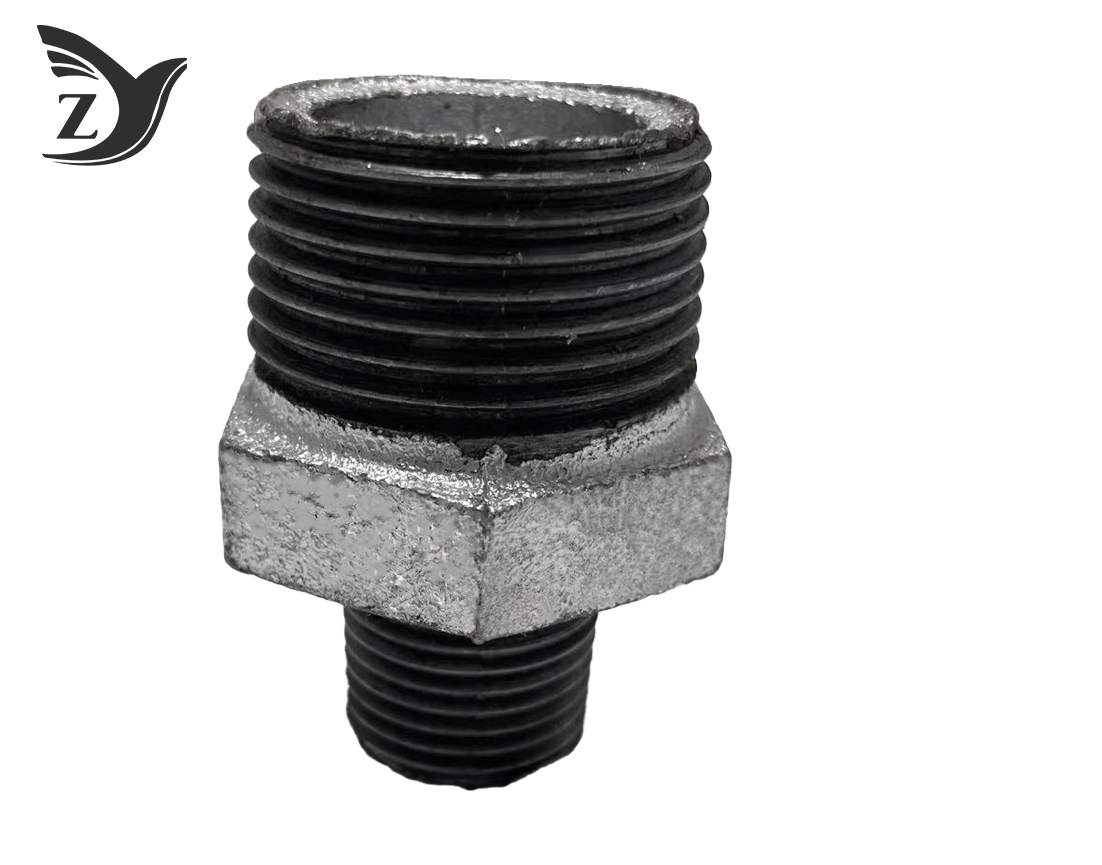

NPT Galvanized Reducing Male Nipple Pipe Fittings
When you need to connect pipes of different sizes efficiently and securely, NPT Galvanized Reducing Male Nipple Pipe Fittings are your ideal solution. These specialized plumbing components interface two female-threaded channels or fittings of distinctive distances across in a straight line. You get dependable execution for transitioning between pipe sizes whereas keeping up framework astuteness. Our decreasing areolas include precision-machined strings and hot-dip galvanized coating for greatest strength. The concentric plan guarantees smooth stream moves without compromising basic quality. Whether you're working on mechanical frameworks or commercial applications, these fittings convey the quality you expect.

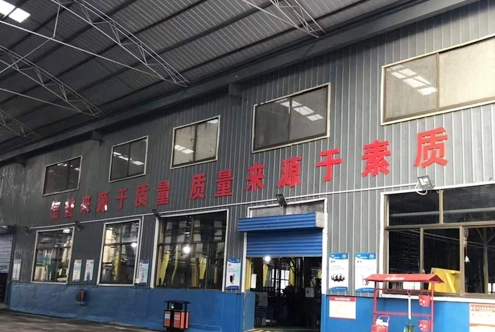

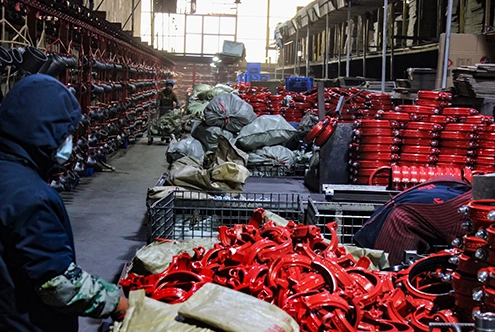

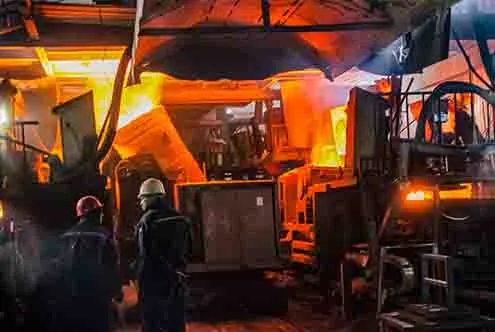

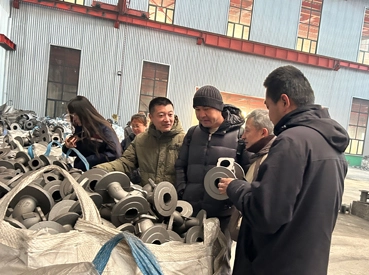

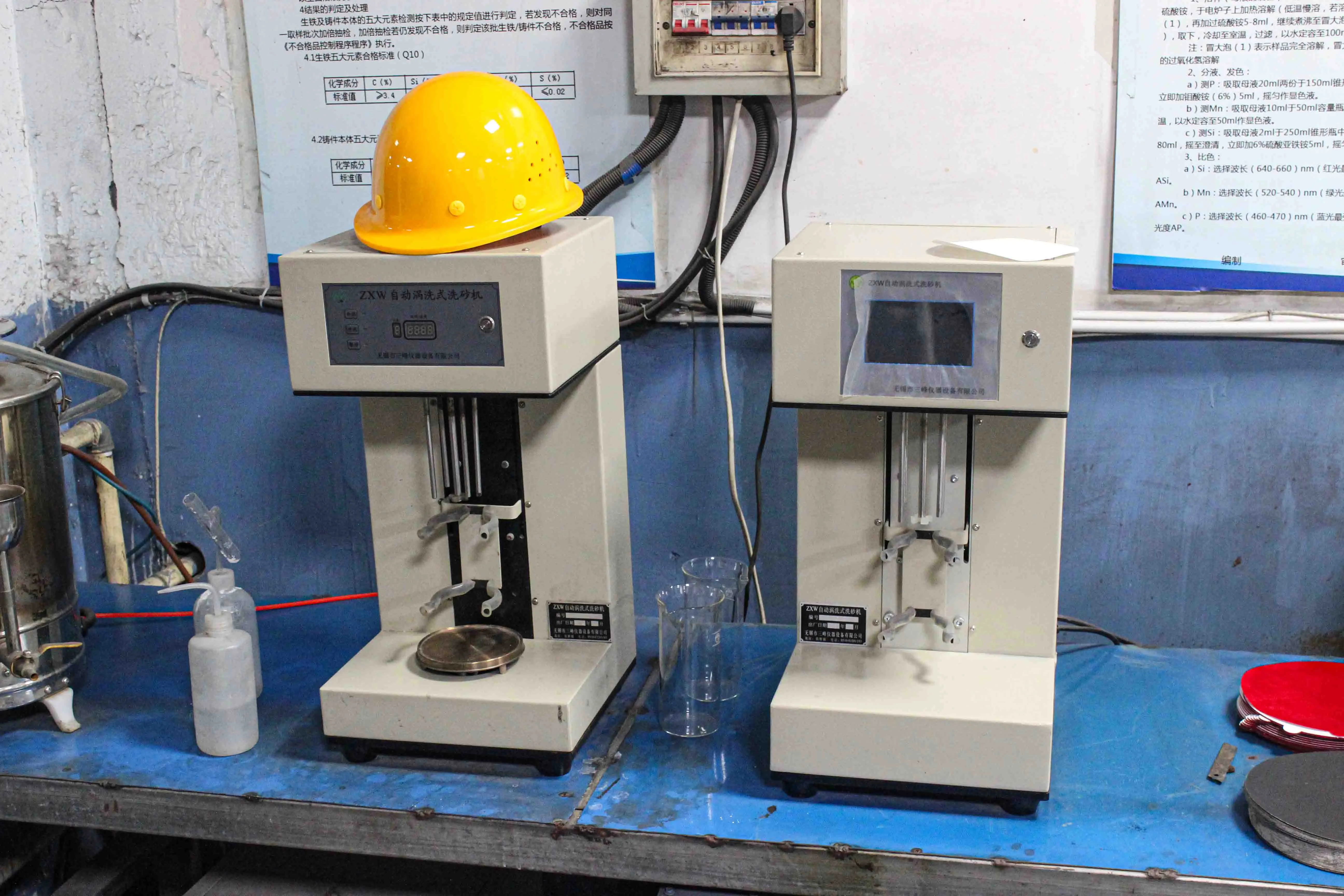

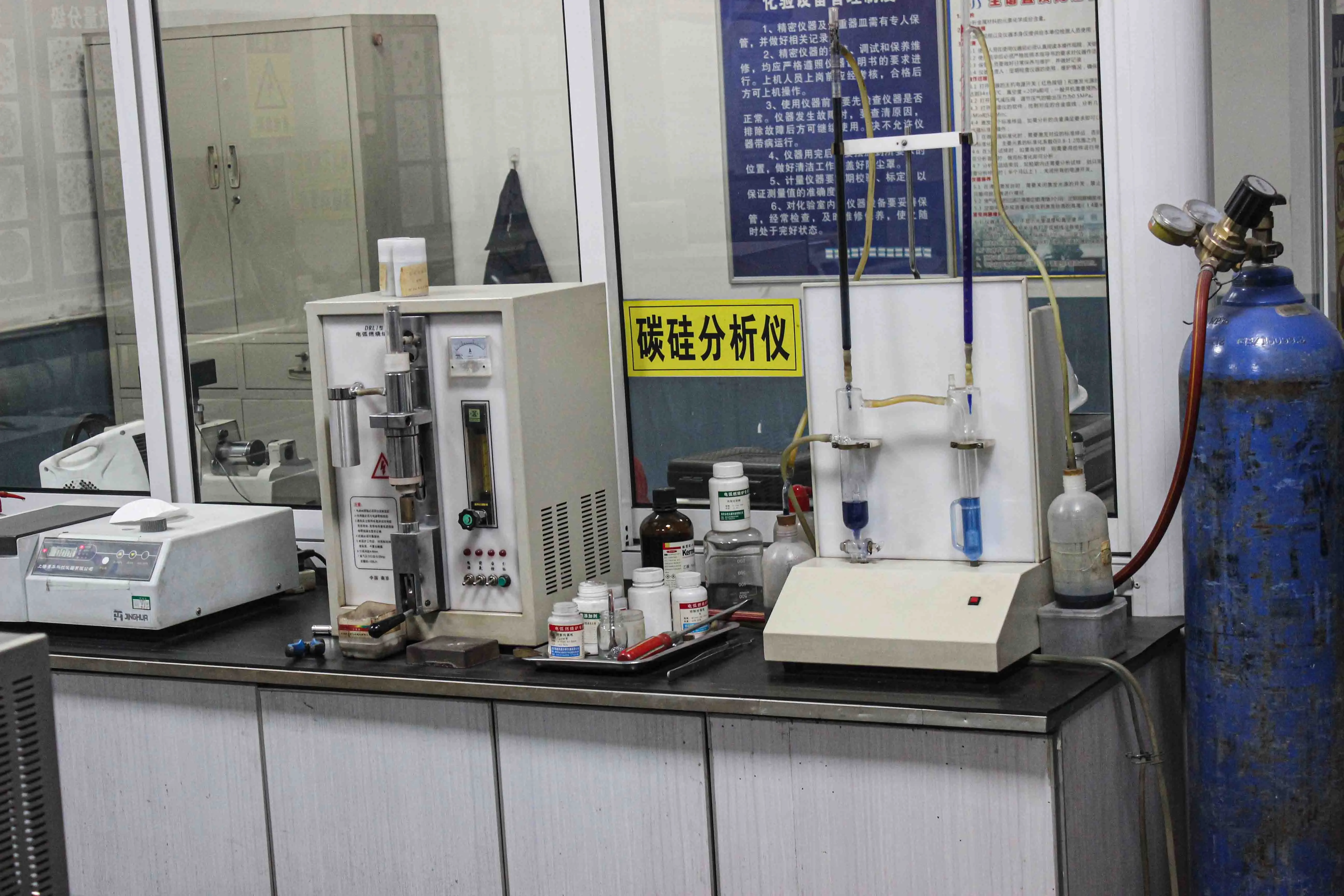

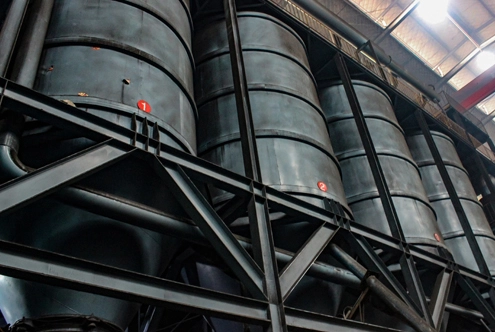

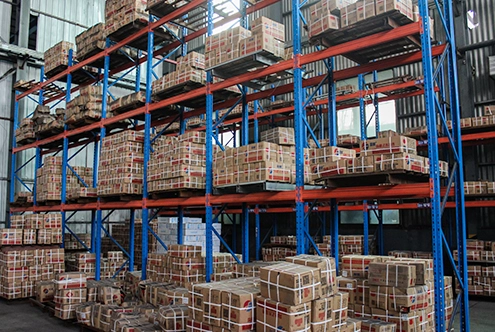

Our Factory
Technical Specifications
Our diminishing areolas are fabricated from high-grade flexible press taking after ASTM A197 benchmarks. You advantage from predominant ductile quality of least 300 MPa and fabulous ductility. The NPT string setup takes after ANSI/ASME B1.20.1 determinations with a exact 60-degree string point and 1:16 decrease proportion. This makes a solid mechanical seal through obstructions fit, fundamental for high-pressure applications.
The hot-dip galvanization prepare gives a zinc coating thickness averaging 86 microns. This metallurgical bond offers conciliatory security against oxidation and erosion. You get amplified benefit life indeed in unforgiving environments.
Key Features
- Precision NPT Threading: Guarantees leak-proof associations with legitimate string sealant application
- Hot-Dip Galvanized Coating: Prevalent erosion resistance compared to electro-galvanizing
- Malleable Press Development: Tall quality and strength for requesting applications
- Concentric Lessening Plan: Smooth stream move minimizes weight loss
- Standard Compliance: Made to ANSI/ASME B1.20.1 specifications
- Wide Estimate Run: Accessible in different estimate combinations for flexible applications
Dimensions and Specifications Table
| Size Combination | Length (mm) | Large End Thread | Small End Thread | Working Pressure |
|---|---|---|---|---|
| 1" x 3/4" | 38 | 1" NPT Male | 3/4" NPT Male | 300 PSI WOG |
| 1-1/4" x 1" | 42 | 1-1/4" NPT Male | 1" NPT Male | 300 PSI WOG |
| 1-1/2" x 1" | 48 | 1-1/2" NPT Male | 1" NPT Male | 300 PSI WOG |
| 1-1/2" x 1-1/4" | 45 | 1-1/2" NPT Male | 1-1/4" NPT Male | 300 PSI WOG |
| 2" x 1-1/2" | 52 | 2" NPT Male | 1-1/2" NPT Male | 300 PSI WOG |
| 2" x 1-1/4" | 55 | 2" NPT Male | 1-1/4" NPT Male | 300 PSI WOG |
Materials and Surface Treatment
We utilize premium pliable press that meets ASTM A197 measures for reliable quality. The fabric gives amazing ductility and affect resistance. Our hot-dip galvanizing handle guarantees total zinc coating scope. The coating thickness midpoints 86 microns for long-lasting protection.
The galvanized layer offers self-healing properties against minor scratches. You get 20-50 a long time amplified benefit life compared to dark steel in destructive situations. This treatment is prevalent to painted or electro-galvanized alternatives.
Standards and Certifications
Our NPT Galvanized Reducing Male Nipple Pipe Fittings comply with these industry standards:
- ANSI/ASME B1.20.1 for NPT threading
- ASTM A197 for malleable iron material
- ASTM A153 for hot-dip galvanizing specifications
- ISO 9001 quality management system certification
Application Areas
These fittings exceed expectations in different mechanical applications:
Fire Assurance Frameworks: Basic for transitioning from huge dispersion mains to littler sprinkler branches. The galvanized coating avoids rust scale blockages in dry systems.
Agricultural Water system: Culminate for interfacing high-flow pumps to littler dissemination headers. Predominant resistance to soil corrosivity and chemical fertilizers.
Oil & Gas Instrumented: Utilized to interface handle lines to gages, valves, and testing ports. The inflexible development withstands vibration and warm expansion.
Installation Instructions
- Clean all string surfaces altogether some time recently installation
- Apply suitable string sealant (PTFE tape or pipe joint compound)
- Hand-thread the fitting until snug
- Use pipe torques for last fixing - regularly 1-2 extra turns
- Do not over-tighten as this may harm the strings or fitting body
- Pressure test the framework some time recently putting into service

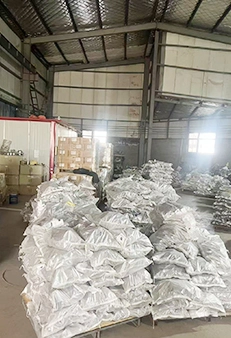

Packaging and Shipping

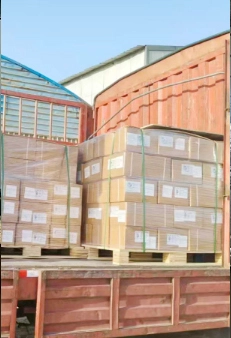

Each fitting is exclusively wrapped to avoid scratches amid transport. We utilize moisture-resistant bundling to keep up coating quality. Standard carton bundling contains defensive froth embeds. Bulk orders are accessible with custom bundling options.
We dispatch through dependable cargo carriers with following data given. Universal shipping incorporates legitimate trade documentation and traditions declarations.

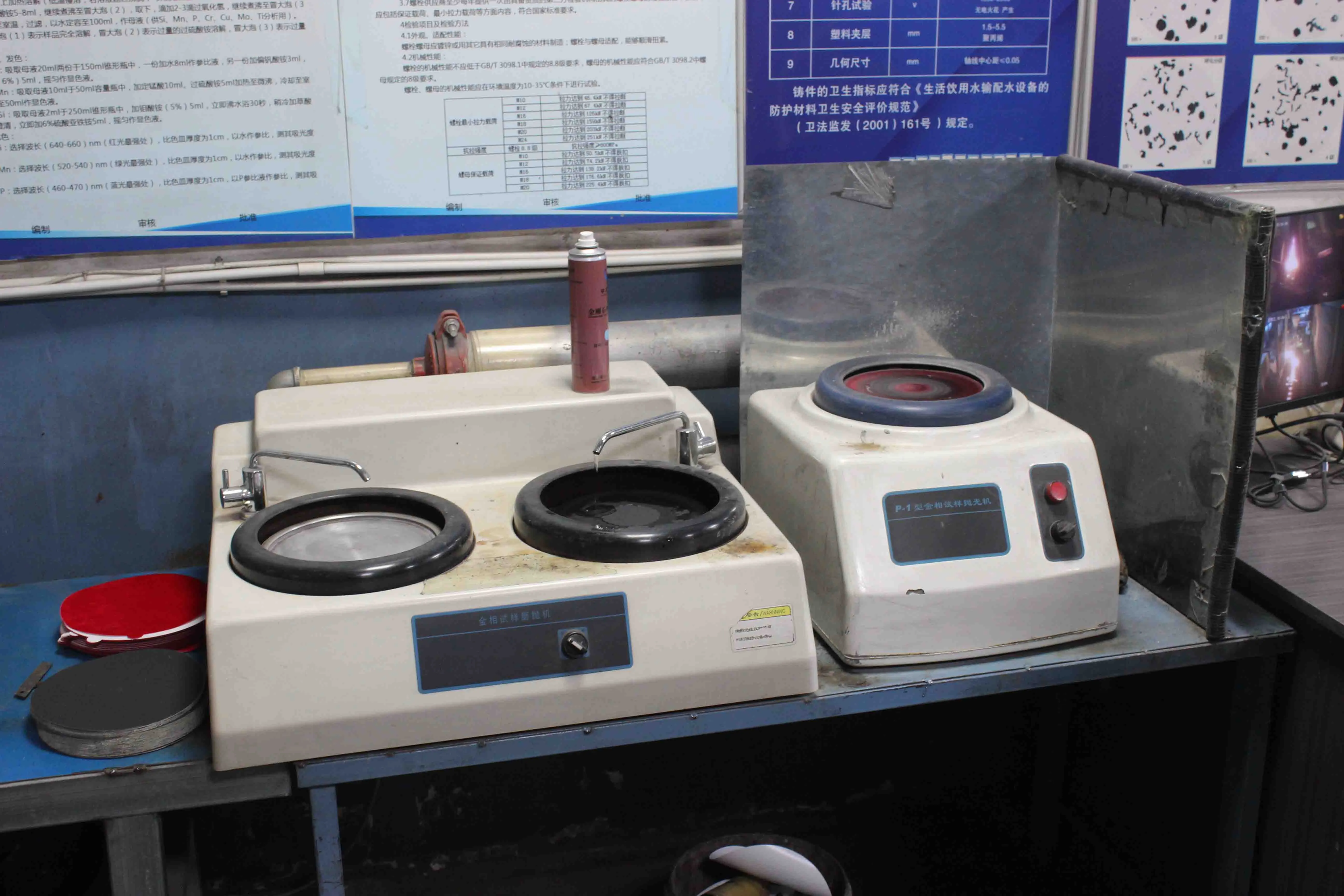

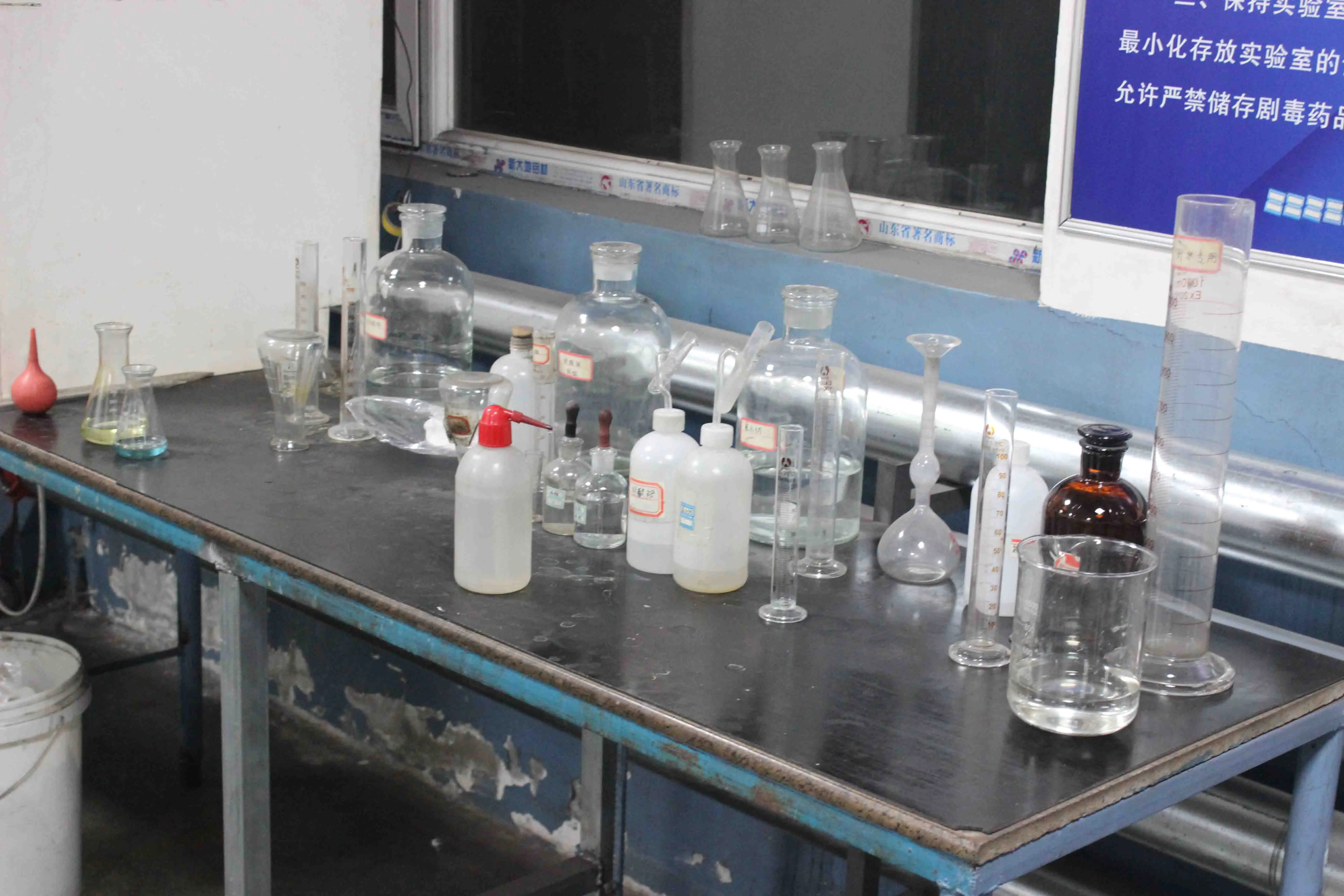

Quality Control

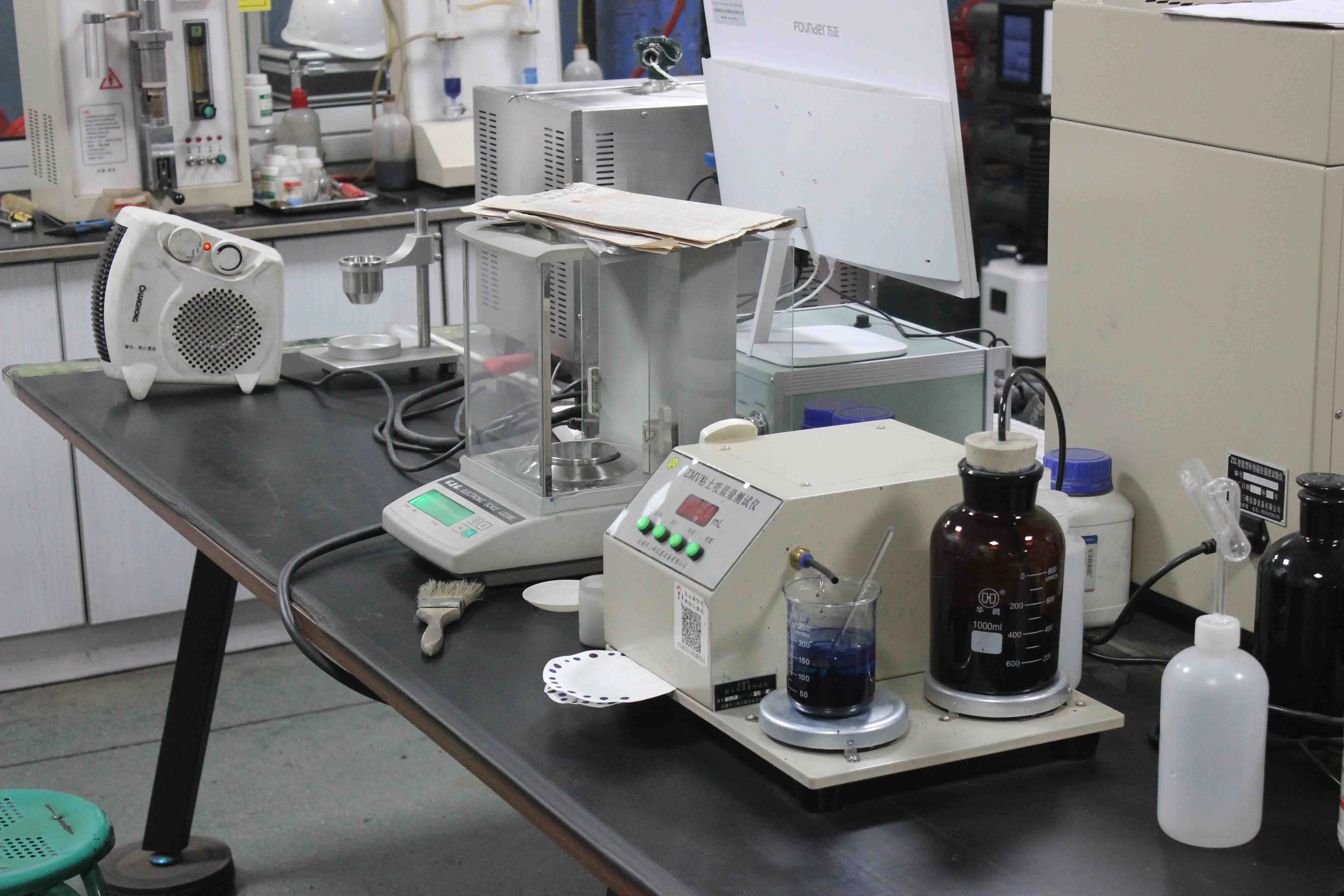

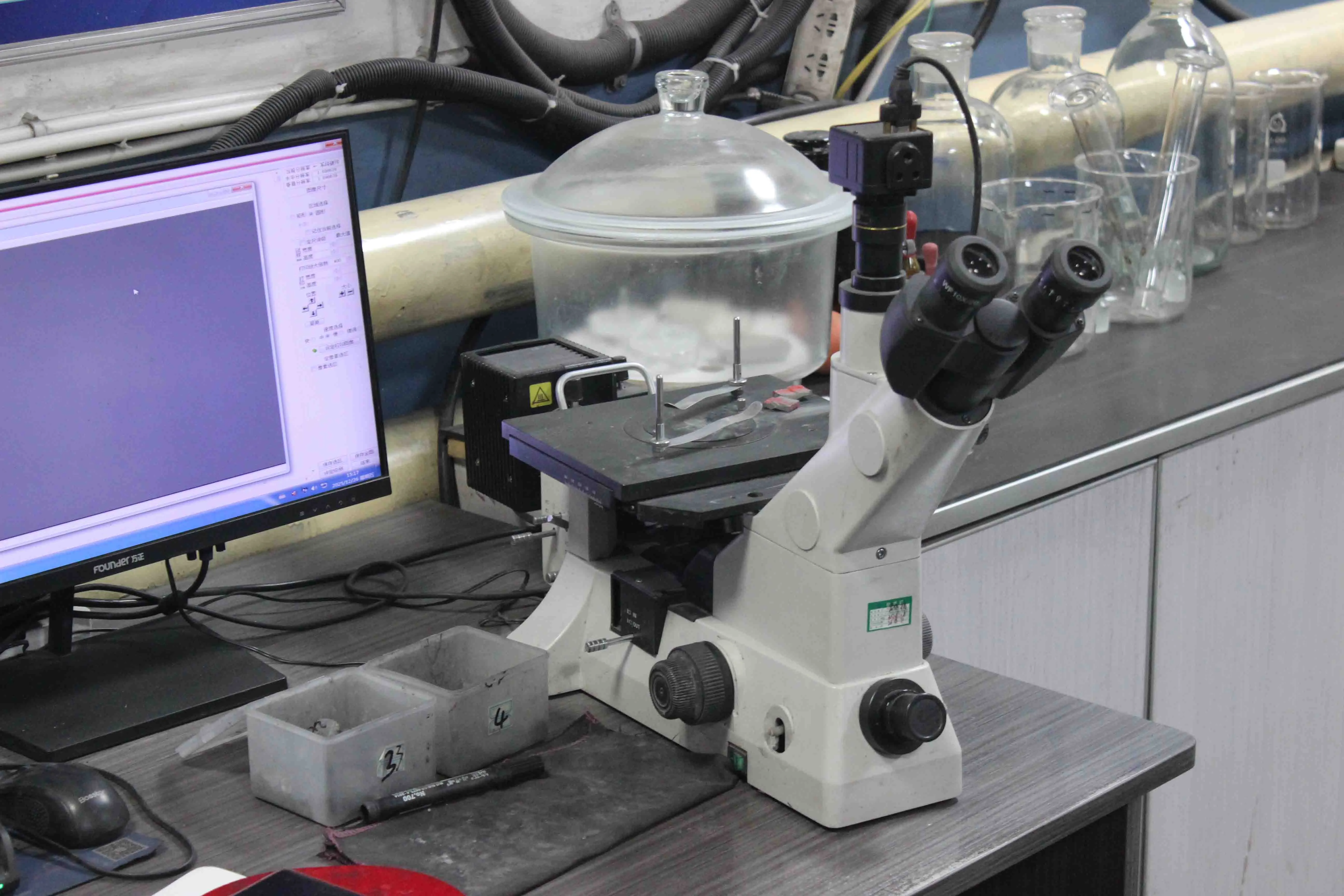

Our fabricating takes after strict ISO 9001 conventions. Each clump experiences dimensional review and weight testing. String gages confirm NPT compliance. Coating thickness estimations guarantee galvanizing standards.
We keep up traceability records for fabric certification and generation information. This ensures reliable quality you can depend on.
OEM and Customization Services
Shanxi Taigu Zhiyuan offers custom measuring and uncommon determinations. Our building group can adjust measurements for one of a kind applications. We give private labeling for wholesalers and contractors.
Custom threading choices incorporate BSPT and metric arrangements. Extraordinary coatings and materials are accessible for particular situations. Least arrange amounts apply for custom products.
Frequently Asked Questions
Q: Can these fittings be used for potable water?
A: Check local codes for lead-free requirements. Standard galvanized fittings are suitable for non-potable water service.
Q: What's the difference between Schedule 40 and Schedule 80?
A: Schedule 80 has thicker walls for higher pressure ratings but smaller internal diameter.
Q: Is thread sealant required?
A: Yes, always use PTFE tape or pipe joint compound for leak-proof connections.
Contact Us
Ready to order your NPT Galvanized Reducing Male Nipple Pipe Fittings? Our experienced sales team is here to help. We provide technical support and competitive pricing for all quantities.
Email: zhiyuan@mifittings.com
Contact us today for quotes, technical specifications, or custom requirements. We're committed to delivering quality fittings that exceed your expectations.
