NPT Square Face Galvanized Square Edge Cross Pipe Fittings

NPT Square Face Galvanized Square Edge Cross Pipe Fittings

NPT Square Face Galvanized Square Edge Cross Pipe Fittings are specialized, heavy-duty moldable press components outlined for interfacing four channels at 90-degree points in a single crossing point. These industrial-grade fittings include a special 'Square Edge' fortification plan that gives prevalent torque holding surface and auxiliary fortification against development strengths. The square confront plan guarantees exact arrangement amid establishment, whereas the hot-dip galvanized coating conveys remarkable erosion resistance for open air and high-humidity environments.

At Shanxi Taigu Zhiyuan Malleable Iron Company Limited, we make these premium fittings utilizing progressed casting innovation and strict quality control forms. Our fittings illuminate complex 4-way liquid dispersion challenges whereas minimizing spill focuses and keeping up ideal weight all through your channeling system.



Detail Photo​​​​​​​​​​​​​​

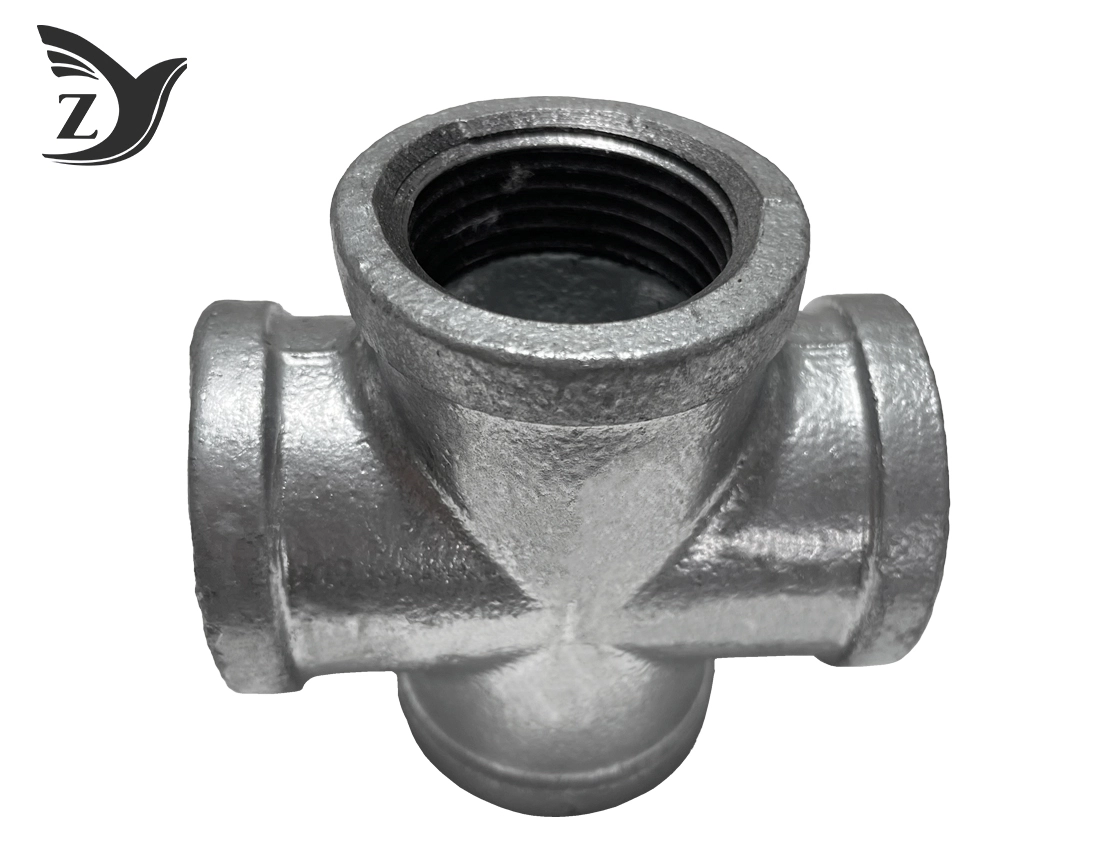

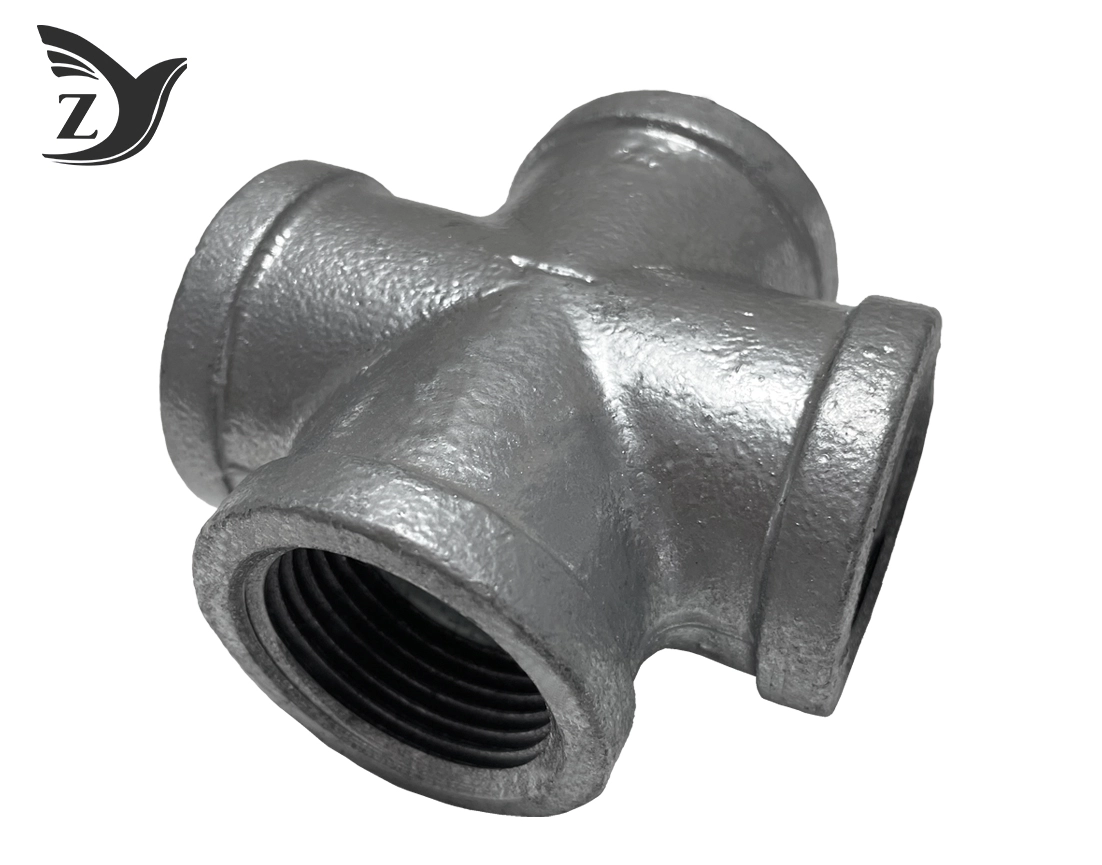

Square Face Galvanized Square Edge Cross Pipe Fittings 1

Square Face Galvanized Square Edge Cross Pipe Fittings 2

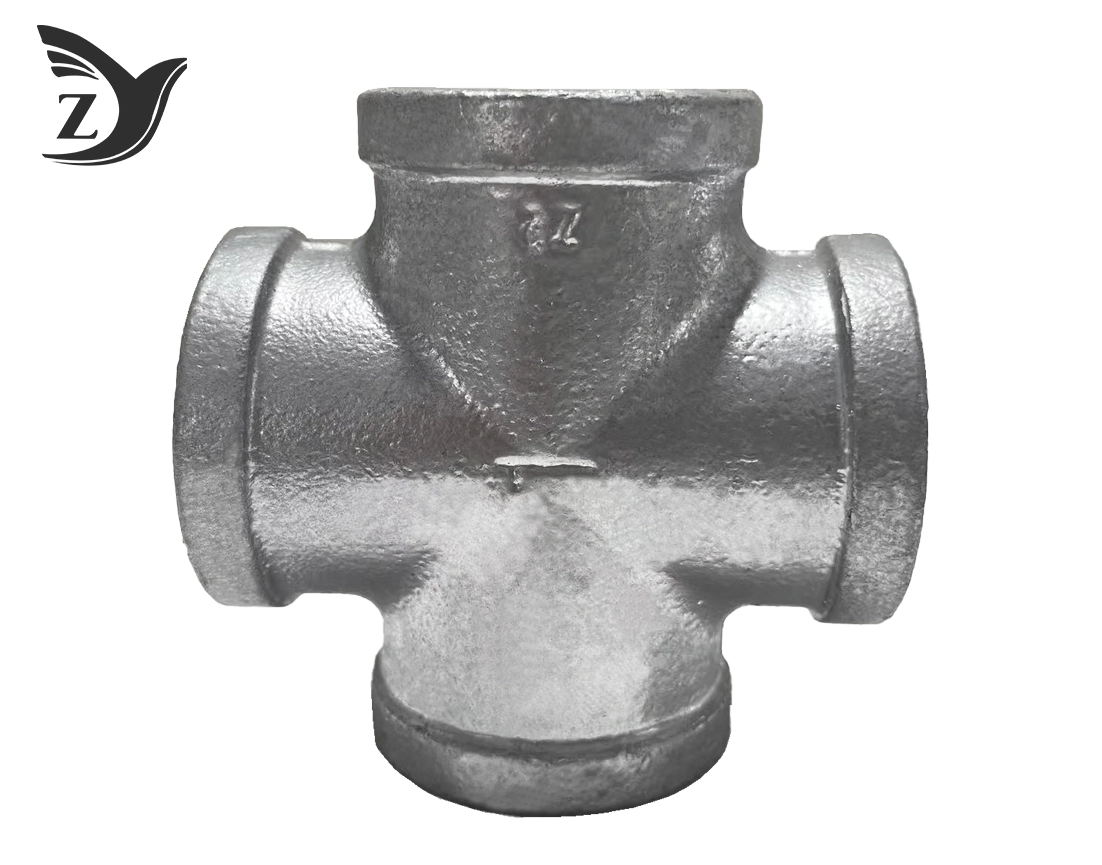

Square Face Galvanized Square Edge Cross Pipe Fittings 3

Technical Specifications

Our cross pipe fittings are made from high-grade flexible press acclimating to ASTM A197 guidelines. The precision-machined NPT strings take after ANSI/ASME B1.20.1 determinations, guaranteeing compatibility with standard Schedule 40 and Schedule 80 steel pipes. Each fitting undergoes hot-dip galvanization per ASTM A153 standards, providing a minimum zinc coating thickness of 86 microns for superior corrosion protection.

Key Features

• Enhanced Auxiliary Plan: Square edge geometry includes 15-20% more fabric mass at string openings
• Superior Erosion Security: Hot-dip galvanized coating with conciliatory anode protection
• Precision Threading: NPT decrease strings make leak-proof mechanical seals
• High-Strength Development: Moldable press offers amazing ductile quality and ductility
• Easy Establishment: Square confront plan gives ideal torque hold for secure connections
• Temperature Safe: Appraised for operation from -20°F to 350°F (-29°C to 177°C)

Dimensions and Specifications Table

Materials and Surface Treatment

We cast our fittings from premium pliable press (ASTM A197) that gives least malleable quality of 40,000 psi and abdicate quality of 30,000 psi. This fabric composition guarantees your fittings won't split beneath establishment torque or operational stress.

Our hot-dip galvanization prepare applies a defensive zinc coating that surpasses industry measures. This coating acts as a conciliatory boundary, securing the base metal from erosion in challenging situations where conventional dark press fittings would fail.

Standards and Certifications

• Material: ASTM A197 (Malleable Iron)
• Threading: ANSI/ASME B1.20.1 (NPT)
• Galvanizing: ASTM A153 (Hot-Dip Galvanized)
• Pressure Rating: Class 150
• Quality System: ISO 9001 Certified Manufacturing

Application Areas

NPT Square Face Galvanized Square Edge Cross Pipe Fittings excel in demanding industrial applications:

Industrial Compressed Discuss Frameworks: Make proficient dissemination hubs in fabricating offices where pneumatic devices require dependable discuss supply in numerous directions.

Outdoor Auxiliary Applications: Construct vigorous railing frameworks and mechanical systems where climate resistance and auxiliary astuteness are essential.

Fire Concealment Frameworks: Give solid associations in sprinkler frameworks where leak-proof execution is basic for security compliance.

Petrochemical Framework: Handle non-corrosive hydrocarbons and handle water in upstream operations requiring natural security compliance.

Installation Instructions

1. Preparation: Clean pipe strings and apply suitable string sealant
2. Hand Fixing: String channels into fitting hand-tight
3. Wrench Fixing: Utilize pipe torque on square confront for secure grip
4. Final Torque: Fix 1-3 extra turns past hand-tight
5. Pressure Testing: Test framework at 1.5 times working pressure

Packaging and Shipping

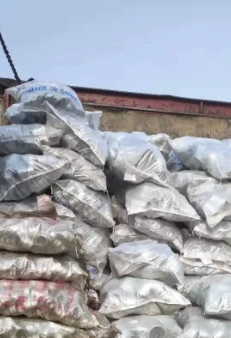

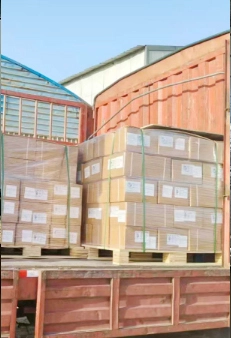

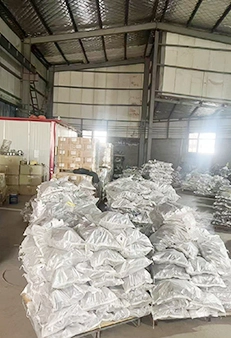

We package your fittings in protective cartons with anti-corrosion materials. Our location in Shanxi Province gives fabulous coordinations get to, guaranteeing quick conveyance around the world. Standard bundling secures the galvanized wrap up amid transport and storage.

Quality Control

Our quality administration framework takes after ISO 9001 benchmarks all through generation. Each fitting experiences dimensional review, string gaging, and coating thickness testing some time recently shipment. Our 30,000-ton yearly capacity guarantees steady accessibility whereas keeping up thorough quality standards.

OEM and Customization Services

With over 26 a long time of casting ability and 156 sets of preparing hardware, we offer comprehensive customization administrations. Our specialized group can alter measurements, threading, or coatings to meet your particular prerequisites. Contact our building office for custom solutions.

Frequently Asked Questions

Q: What's the difference between square edge and standard cross fittings?

A: Square edge fittings provide enhanced structural reinforcement and better wrench grip compared to traditional round-bead designs.

Q: Can these fittings handle steam applications?

A: Yes, they're rated for saturated steam up to 150 PSI and water/oil/gas up to 300 PSI at ambient temperatures.

Q: How long does the galvanized coating last?

A: Our hot-dip galvanization typically provides 15-25 years of corrosion protection in most environments.
