NPT Black Male-Female Union 343 Pipe Fittings

NPT Black Male-Female Union 343 Pipe Fittings

When you need a reliable connection point in your pipeline system, NPT Black Male-Female Union 343 Pipe Fittings give the idealize arrangement. These specialized moldable press components combine the capacities of a union and an expansion areola in one compact fitting. You'll discover that the 343 show highlights a interesting Male-to-Female arrangement with a funnel shaped joint situate. This plan dispenses with the require for halfway areolas and decreases get together length by around 20%. Your upkeep groups will appreciate the simple detach capability for repairs without cutting channels or depleting whole systems.

Our fittings unravel basic industry challenges counting stack-up blunders in tight channeling manifolds and give mechanical disengage focuses where welding isn't practical.

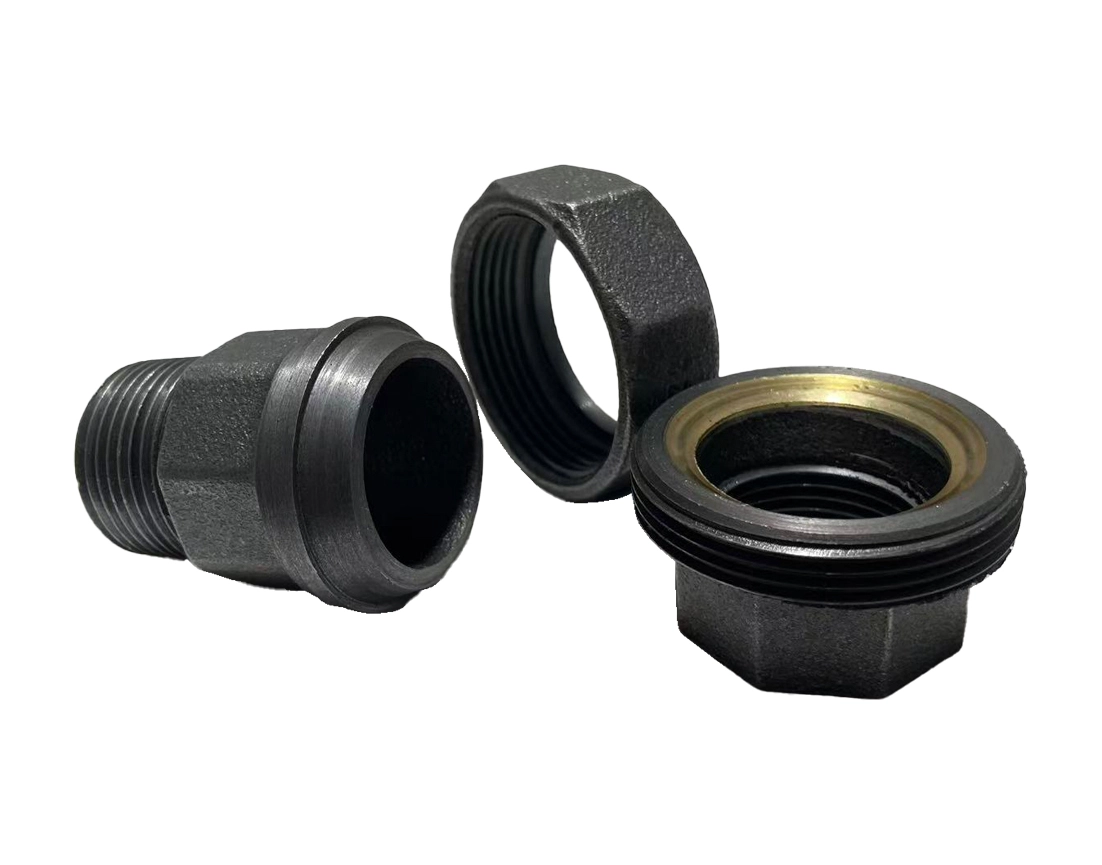

Detail Photo

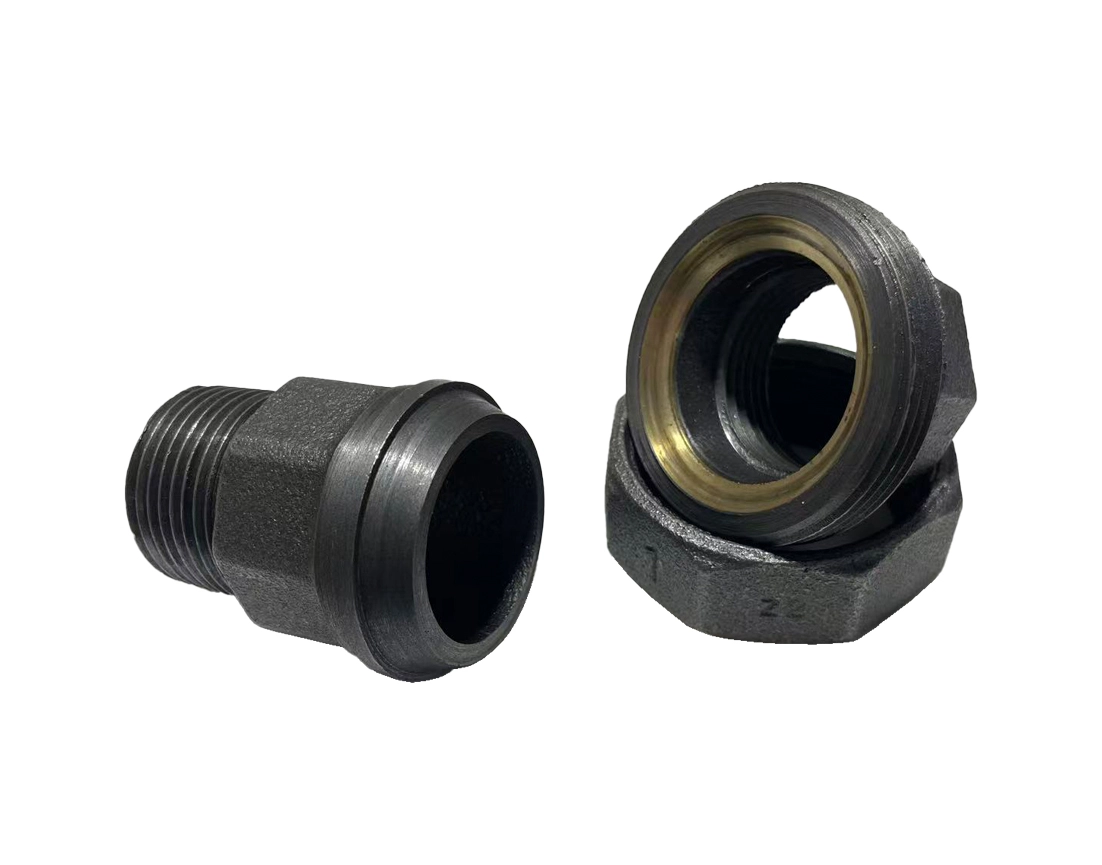

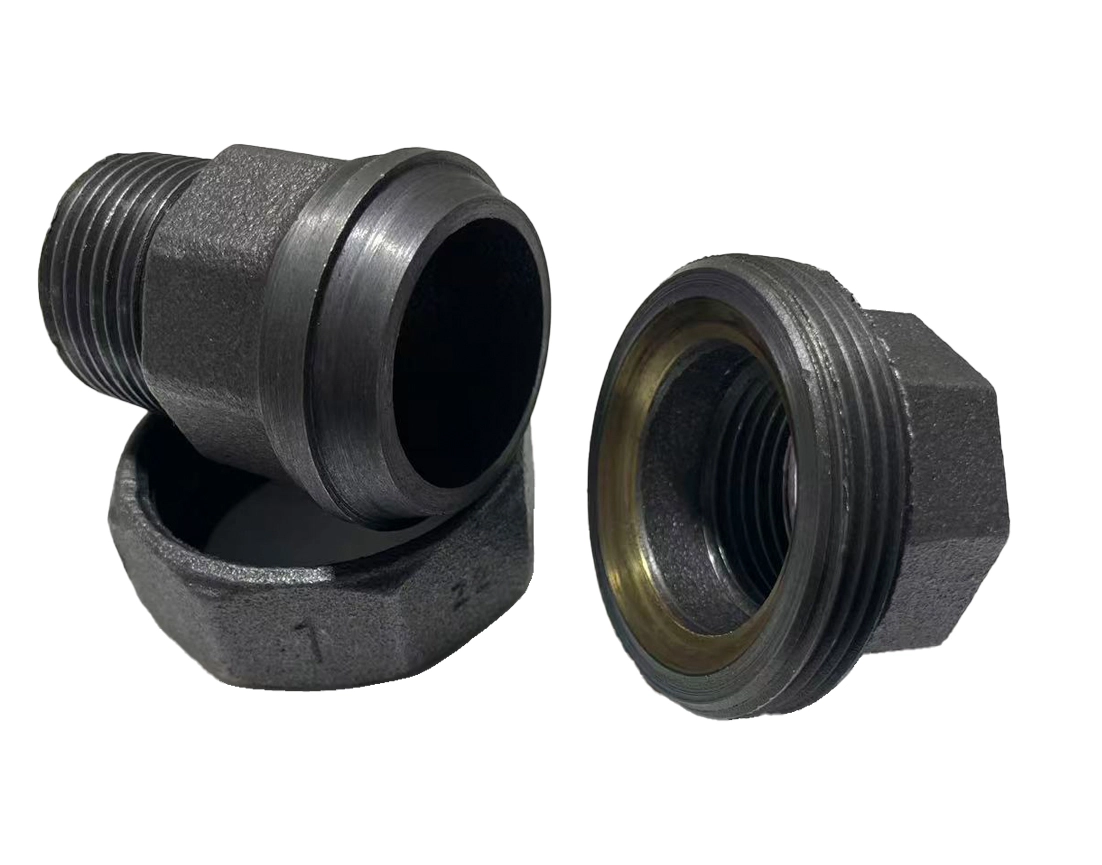

 Black Male-Female Union 343 Pipe Fittings 1

 Black Male-Female Union 343 Pipe Fittings 2

 Black Male-Female Union 343 Pipe Fittings 3

Technical Specifications

Core Construction Details

• Material: ASTM A197 Cupola Malleable Iron
• Tensile Strength: Minimum 40,000 psi
• Threading: Tapered NPT threads (ANSI/ASME B1.20.1 compliant)
• Joint Type: Metal-to-metal conical seat design
• Pressure Rating: Class 150 (300 psi at -20°F to 150°F)
• Surface Treatment: Black oxide coating for corrosion resistance

Key Features

You'll advantage from these progressed plan characteristics:

• Space-Efficient Plan: Combines union and expansion capacities in one fitting
• Superior Fixing: Funnel shaped situate guarantees leak-proof execution without gaskets
• Vibration Resistance: Assimilates minor vibrations way better than flat-gasket unions
• Easy Upkeep: Fast disengage capability for repairs and inspections
• Thermal Soundness: Handles warm development and cycling effectively
• Standards Compliance: Made per ASME B16.39 and ASME B16.3

Dimensions and Specifications Table

Materials and Surface Treatment

Your fittings are created from premium ASTM A197 moldable press. This fabric gives prevalent pliable quality compared to standard cast press. The dark oxide surface treatment anticipates oxidation amid capacity and transport. You can tally on fabulous execution in non-potable water, steam, gas, and oil applications.

Standards and Certifications

Our fabricating forms entirely follow:

• ASME B16.39 (Malleable Iron Threaded Pipe Unions)
• ASME B16.3 (Malleable Iron Threaded Fittings)
• ANSI/ASME B1.20.1 (Threading standards)

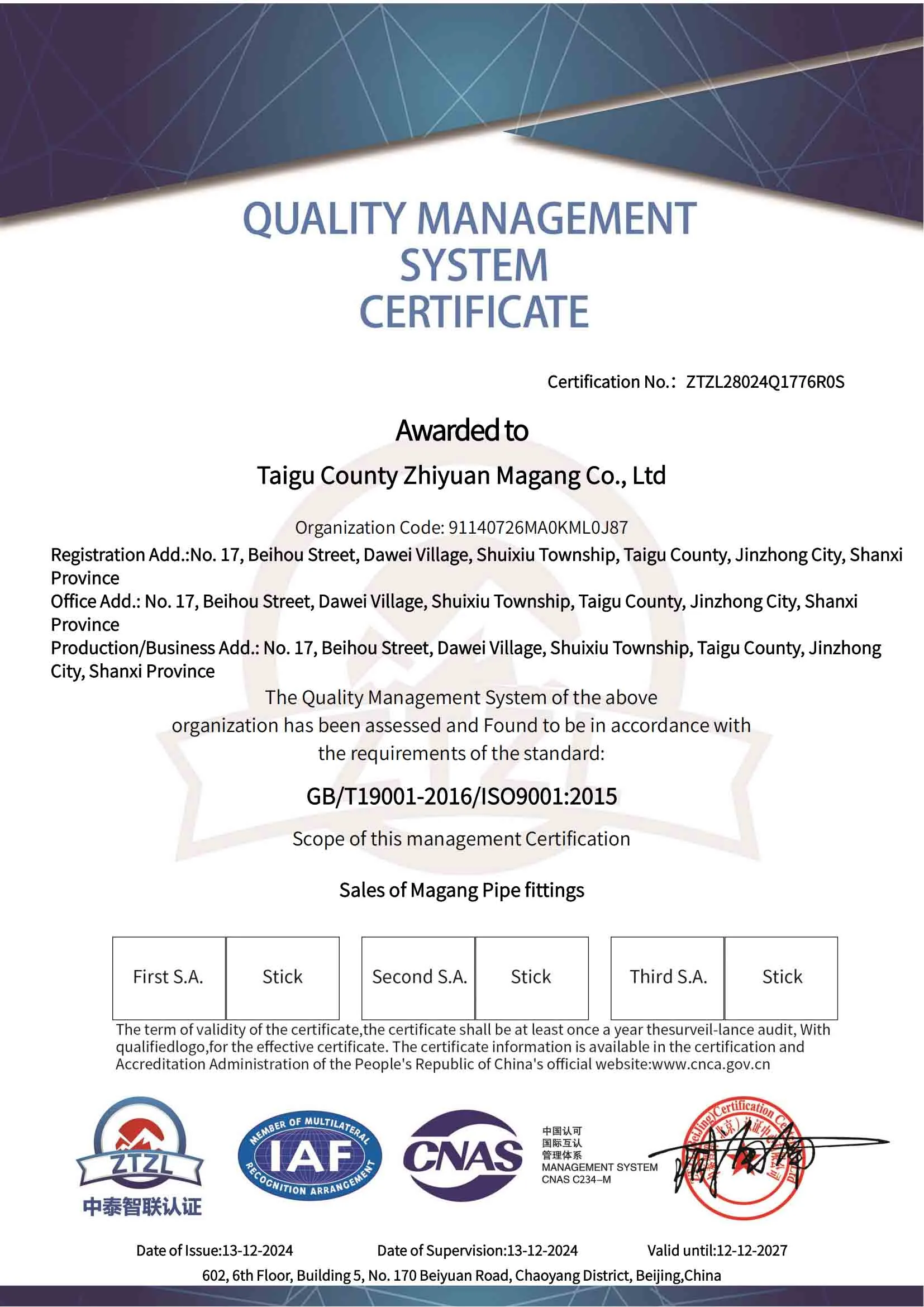

• ISO9001 Quality Management System

Application Areas

NPT Black Male-Female Union 343 Pipe Fittings excel in these industrial applications:

Industrial Steam Systems

Perfect for interfacing radiators and warming coils to supply valves in low-pressure steam lines up to 150 psi.

Gas Distribution Networks

Ideal for LPG and common gas meter bars and controller stations where space imperatives make conventional fittings impractical.

Hydraulic Systems

Excellent for oil return lines in overwhelming apparatus where consistent vibration requires fatigue-resistant connections.

Process Industries

Suitable for chemical handling, fabricating plants, and mechanical offices requiring dependable detach points..

Installation Instructions

Follow these steps for proper installation:

1. Thread Planning: Clean all strings completely and assess for damage
2. Sealant Application: Apply quality pipe dope or PTFE tape to male strings only
3. Assembly: Hand-tighten to begin with, at that point utilize torques for last tightening
4. Torque Determination: Fix until cozy - dodge over-torquing flexible iron
5. Testing: Perform weight test some time recently putting framework into service

Important: Never apply sealant to the inside funnel shaped mating surfaces.

Packaging and Shipping

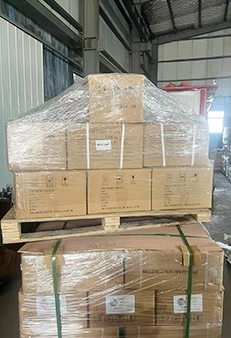

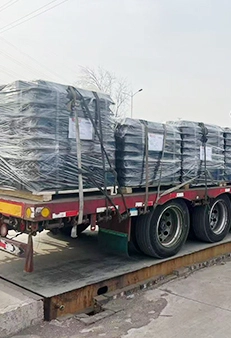

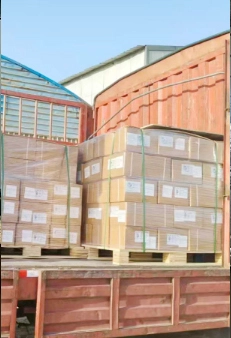

Your orders are carefully bundled to anticipate harm amid travel. We utilize defensive wrapping and strong boxes for secure conveyance. Standard lead times are 2-3 weeks for stock sizes, with sped up choices accessible for critical requirements.

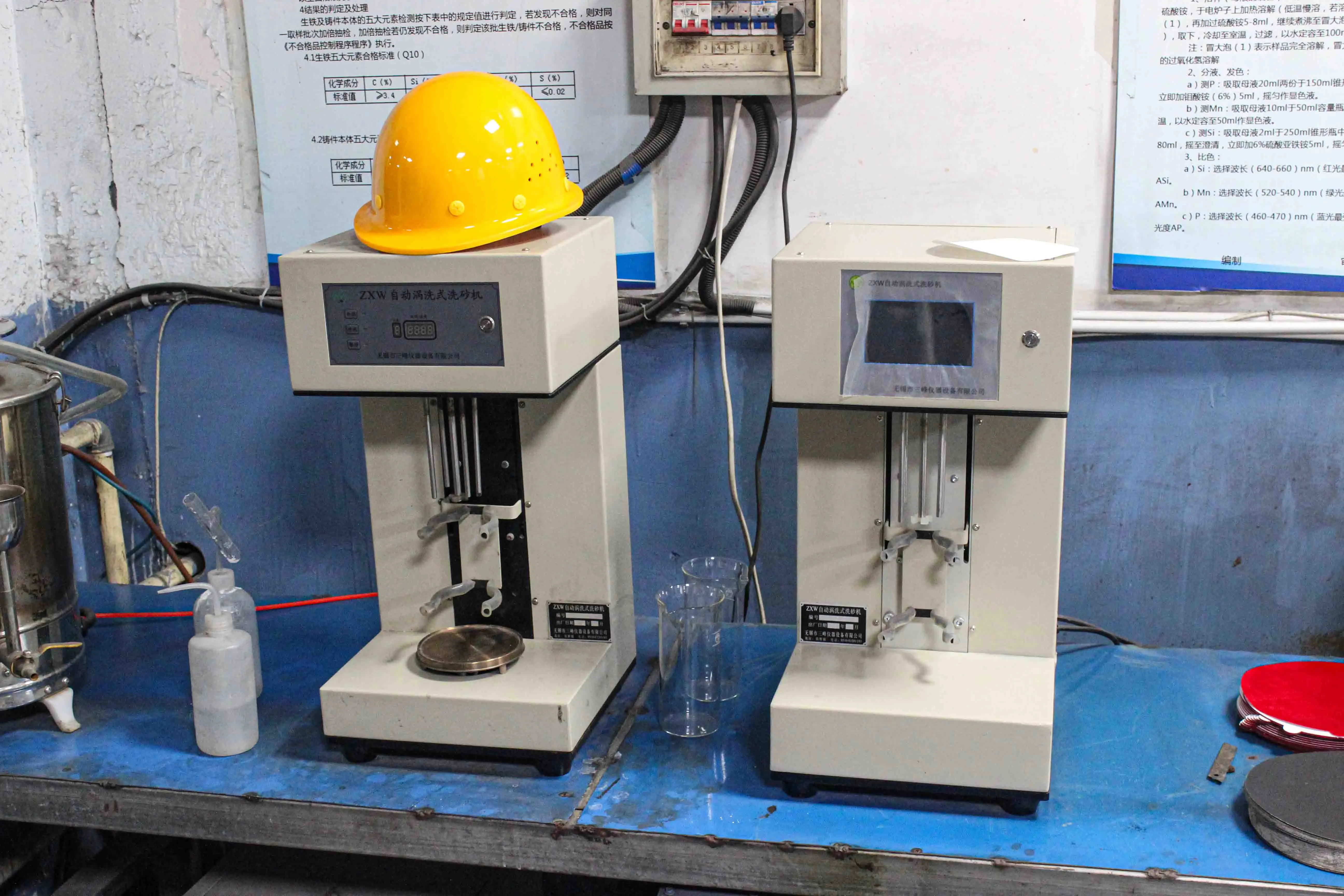

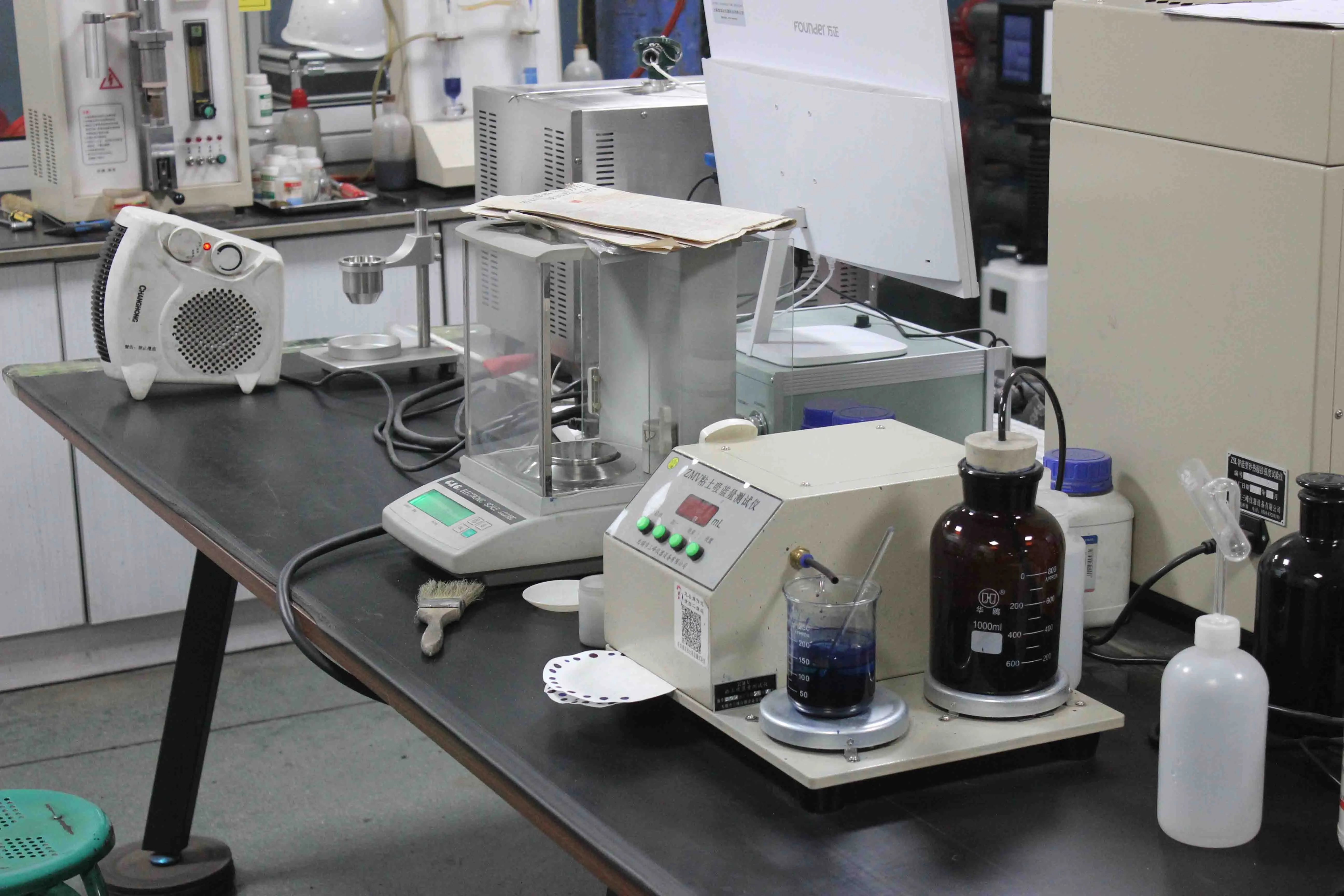

Quality Control

Every fitting experiences thorough testing:

• Pneumatic Testing: Air-under-water test at least 85 psi
• Thread Confirmation: Go/No-Go gage assessment per ANSI standards

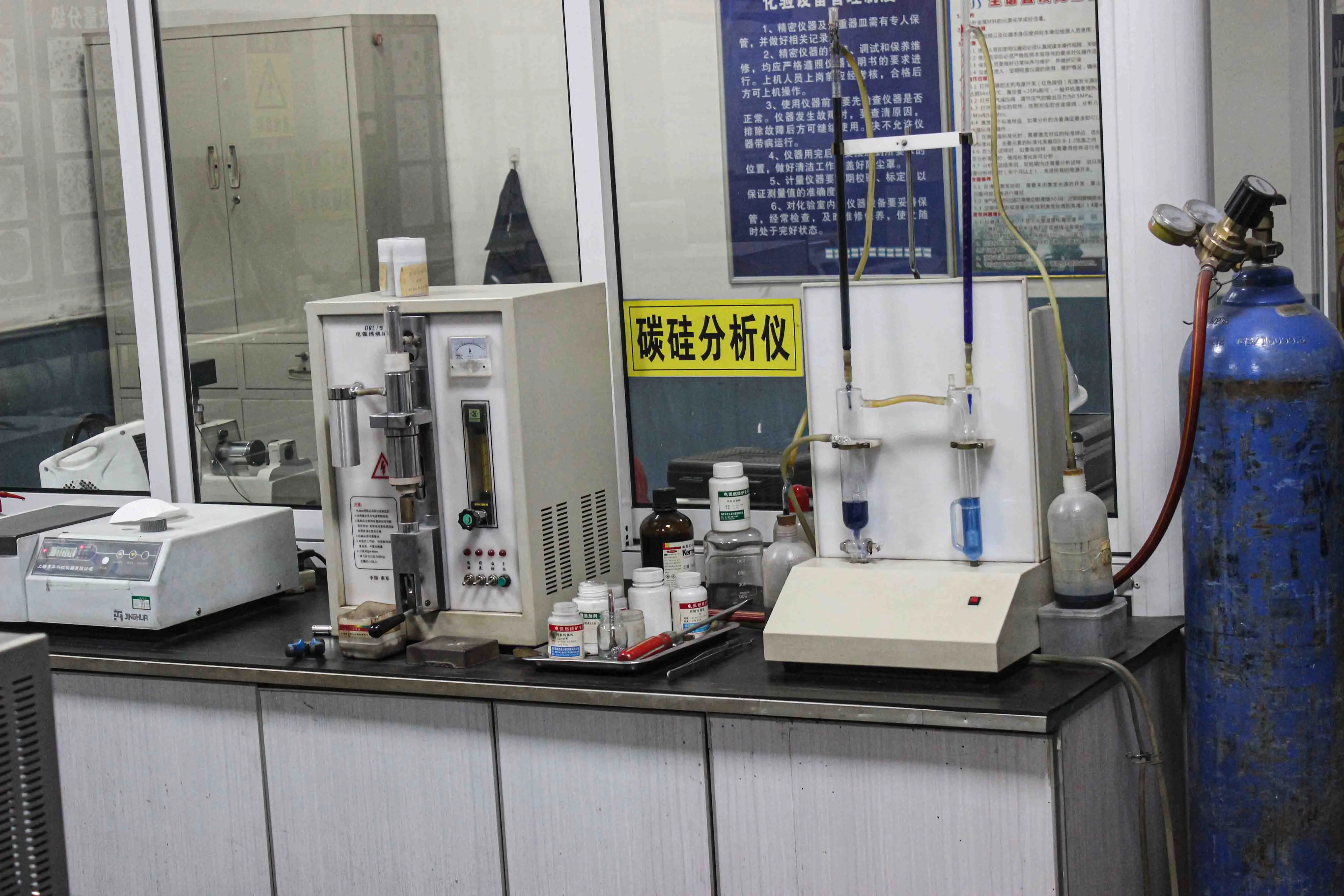

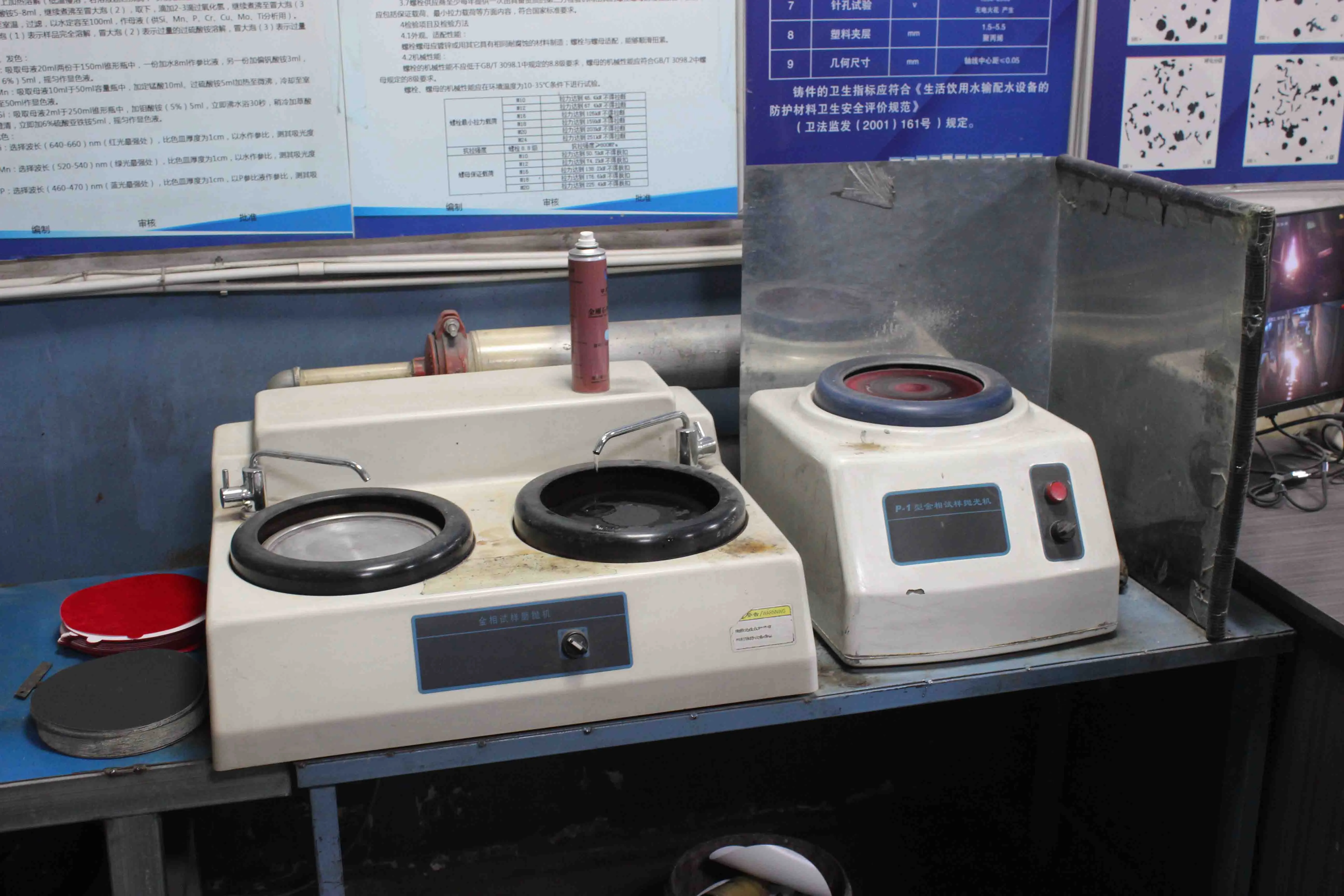

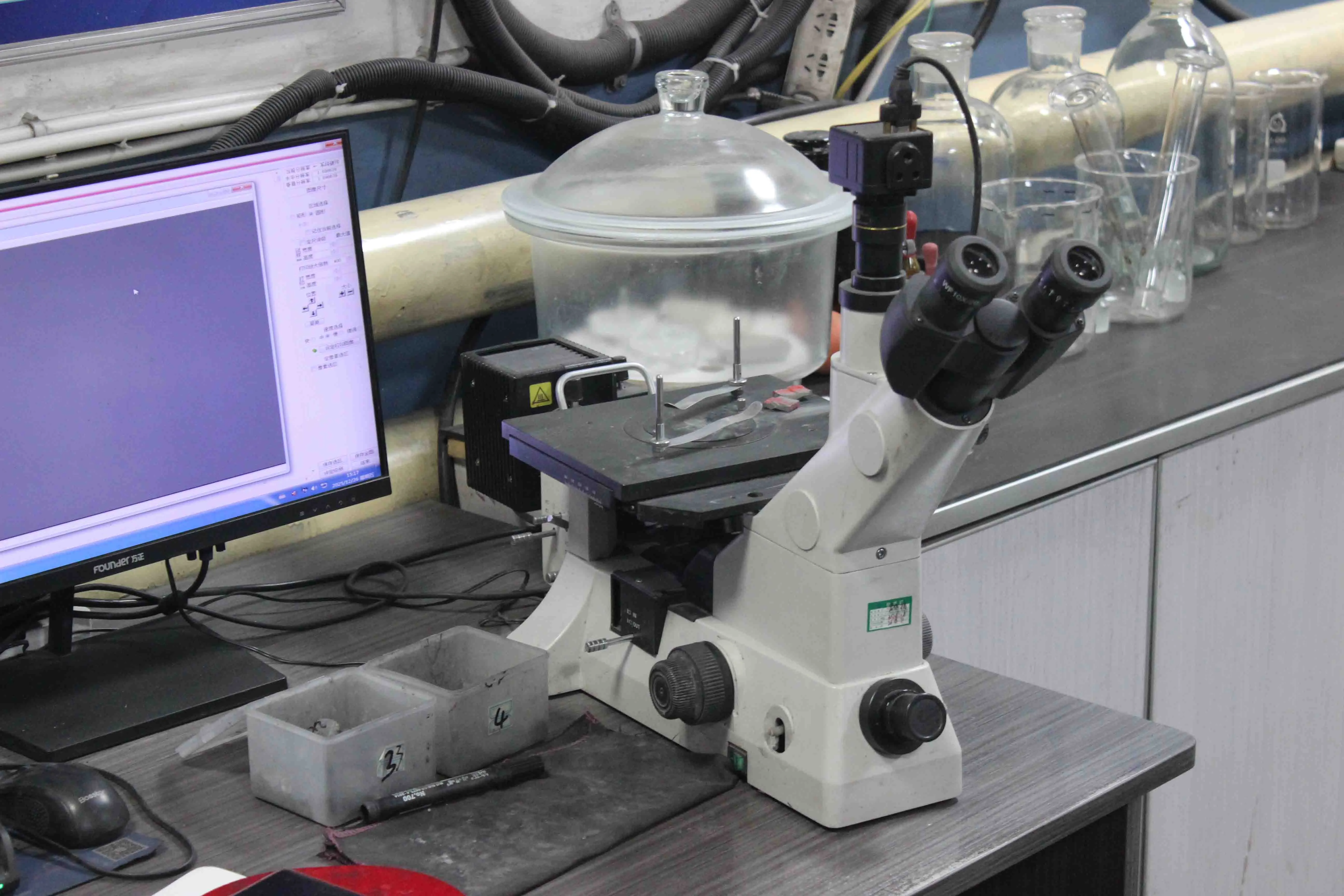

• Metallurgical Examination: Spectroscopic confirmation of fabric composition
• Dimensional Exactness: Exactness estimation of all basic dimensions

OEM and Customization Services

With 26 a long time of casting involvement and yearly generation capacity of 30,000 tons, we offer comprehensive customization administrations. Our designing group can create custom determinations, uncommon coatings, and interesting setups to meet your particular requirements.

Frequently Asked Questions

Q: What's the difference between 330 and 343 unions?

A: The 330 is Female-to-Female with a flat seat, while our 343 features Male-to-Female configuration with superior conical seating.

Q: Can I use these for potable water?

A: No. Black malleable iron fittings are designed for gas, oil, or closed-loop systems, not potable water.

Q: Do I need gaskets?

A: No. The precision-machined conical seat creates a metal-to-metal seal without gaskets.

Q: What's the pressure rating?

A: Class 150 rating provides 300 psi maximum working pressure at standard temperatures.

Contact Us

Ready to discuss your NPT Black Male-Female Union 343 Pipe Fittings requirements? Our technical team is standing by to help you select the right specifications for your application.

Email: zhiyuan@mifittings.com

Contact us today for technical specifications, custom quotes, or application engineering support. We're committed to providing you with reliable pipeline solutions backed by decades of manufacturing expertise.
