NPT Black Cap Pipe Fittings
2.Threaded pipe end sealing industrial fitting .
3.Industrial water/gas pipeline end cap .
4.Precision-threaded black malleable cap .
5.High-strength, corrosion-resistant pipe seal .
6.NPT/BSPT compatible threaded end cap .
7.Industrial-grade black malleable pipe cap .
8.Durable pipe end protection fitting
Description

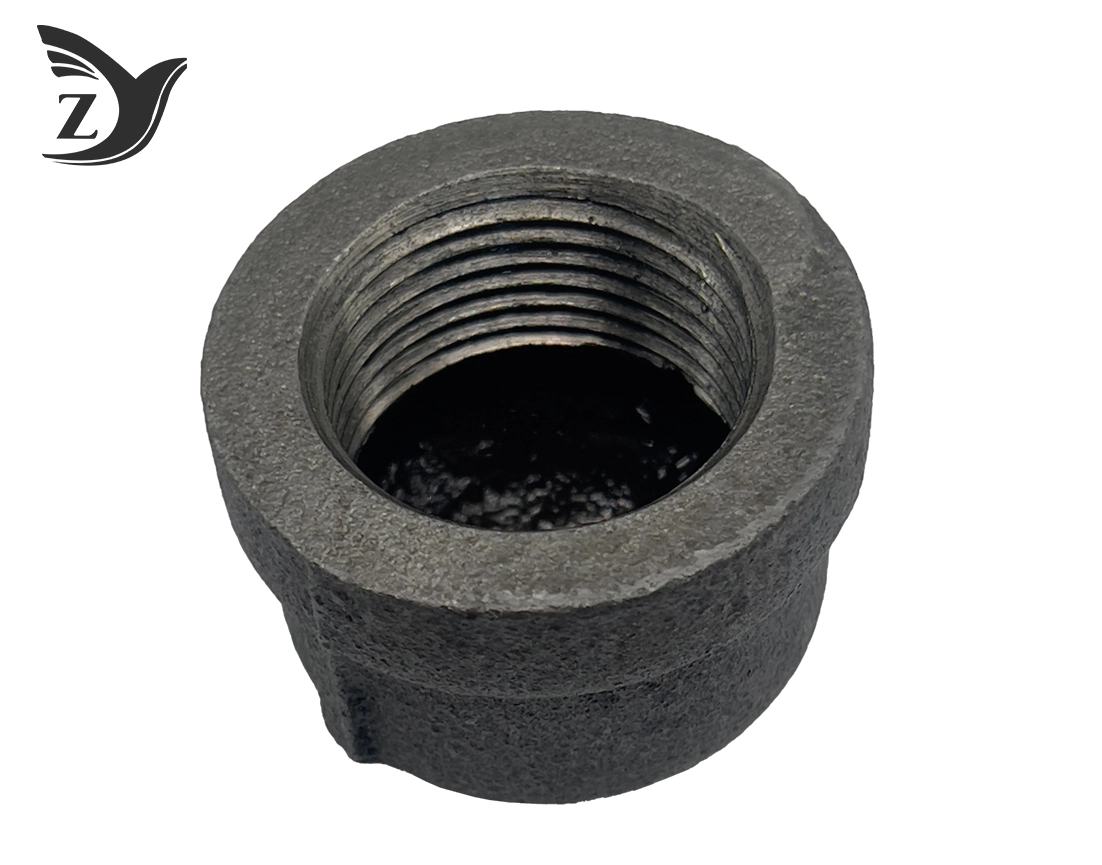

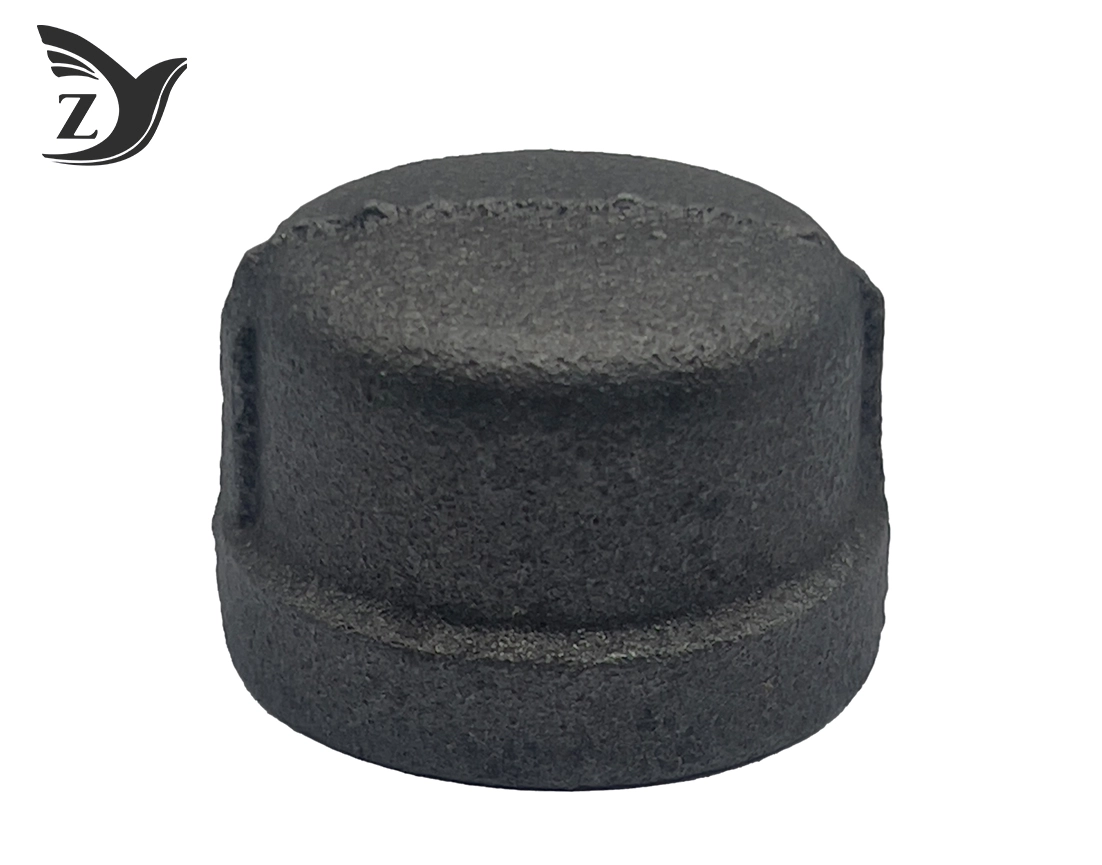

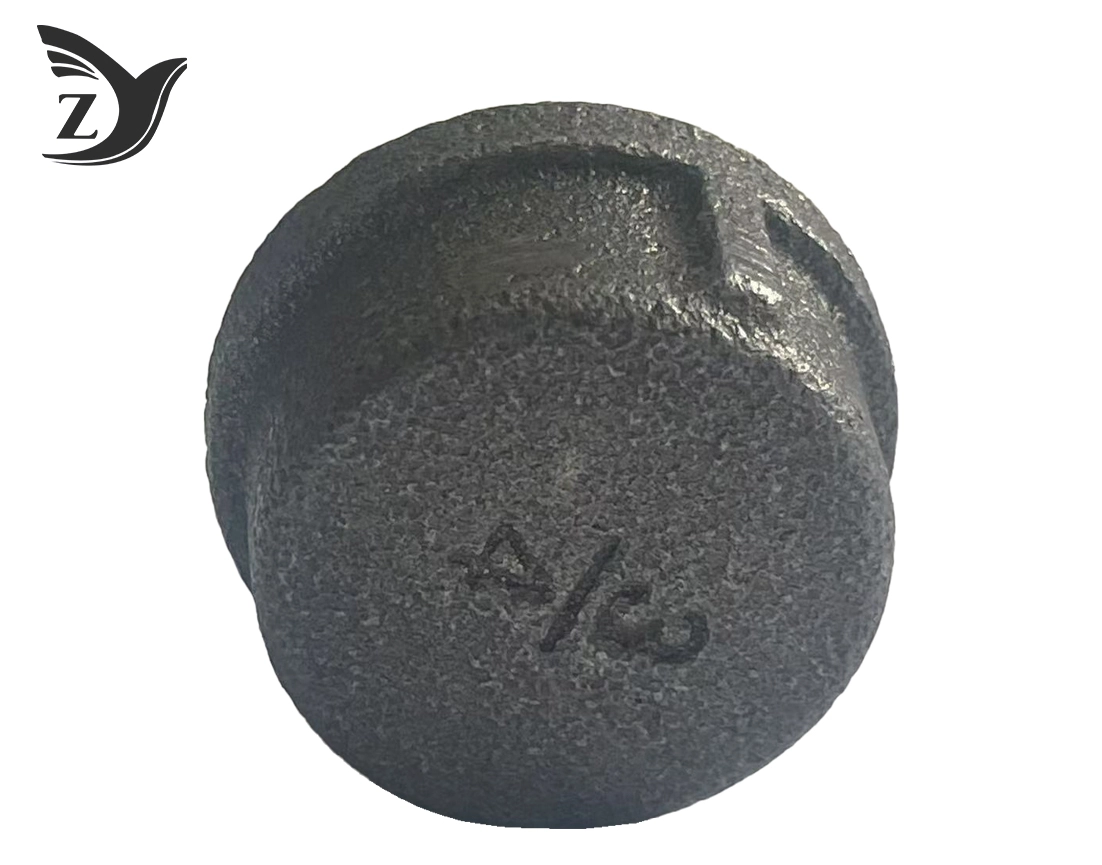

NPT Black Cap Pipe Fittings - Professional End Termination Solutions
NPT Black Cap Pipe Fittings are specialized industrial end-termination components engineered for critical piping applications where reliable sealing meets system flexibility. These malleable iron caps feature precision-machined National Pipe Taper (NPT) female threads with a tough dark wrap up, particularly planned to for all time or briefly seal pipe closes in mechanical frameworks. Not at all like standard cast press options, our fittings utilize ASTM A197 vault moldable press that experiences thorough strengthening forms, conveying uncommon ductility and affect resistance for requesting applications.
Technical Specifications
Our caps are made to the most noteworthy industry measures, guaranteeing dependable execution in basic applications:
| Specification | Details |
|---|---|
| Material Standard | ASTM A197/A197M Cupola Malleable Iron |
| Thread Standard | NPT per ANSI/ASME B1.20.1 |
| Dimensional Standard | ASME B16.3 |
| Pressure Rating | Class 150: 300 psi (-20°F to 150°F) |
| Temperature Range | -20°F to 366°F (185°C) |
| Thread Angle | 60° with 1°47' taper |
| Surface Finish | Black oxide/lacquer coating |
Key Features
Superior Fabric Properties: Our flexible press development offers amazing ductility and affect resistance compared to fragile cast press alternatives.
Precision Threading: Each fitting highlights carefully machined NPT strings that make a mechanical obstructions fit, anticipating extricating beneath mechanical vibration.
Corrosion Resistance: The dark oxide wrap up gives fabulous security against rust whereas keeping up compatibility with oil, gas, and steam applications.
Vibration Safe Plan: The decreased string profile makes a continuously more tightly seal beneath torque, standing up to framework vibrations that commonly cause fitting failures.
System Expandability: Not at all like welded conclusion caps, our fittings can be expelled for future line expansions or upkeep access.
Dimensions and Specifications Table
| Size (NPT) | A (Length) | B (Width) | C (Thread Depth) | Weight (lbs) |
|---|---|---|---|---|
| 1/8" | 0.75" | 0.50" | 0.40" | 0.05 |
| 1/4" | 0.88" | 0.63" | 0.45" | 0.08 |
| 3/8" | 1.00" | 0.75" | 0.50" | 0.12 |
| 1/2" | 1.13" | 0.88" | 0.55" | 0.18 |
| 3/4" | 1.25" | 1.00" | 0.60" | 0.25 |
| 1" | 1.50" | 1.25" | 0.70" | 0.40 |
Materials and Surface Treatment
We utilize premium ASTM A197 pliable press that experiences a specialized tempering prepare. This treatment changes over white press into a ferritic microstructure, significantly progressing ductility and affect resistance. The dark wrap up is accomplished through either dark oxide coating or specialized finish application, giving prevalent erosion security without the zinc-flaking issues related with galvanized alternatives.
Standards and Certifications
All our products comply with:
- ASTM A197/A197M material specifications
- ANSI/ASME B1.20.1 threading standards
- ASME B16.3 dimensional requirements
- ISO9001 quality management system
Application Areas
Industrial Gas Distribution: Perfect for natural gas and propane systems where preventing fugitive emissions is critical. The NPT Black Cap Pipe Fittings excel in commercial heating plants and residential gas risers.
Steam Warming Frameworks: Perfect for kettle rooms and clinic warming clusters where warm cycling requests extraordinary durability.
Fire Assurance Frameworks: Commonly utilized amid hydrostatic testing of sprinkler frameworks, giving solid high-pressure sealing.
Oil and Petroleum Frameworks: Amazing for ending oil transport lines and refinery channeling applications.
Installation Instructions
- Thread Arrangement: Clean all pipe strings completely and apply suitable pipe string sealant
- Hand Threading: String the cap onto the pipe by hand until finger-tight
- Wrench Fixing: Utilize fitting pipe torque to fix 2-3 extra turns past hand-tight
- Pressure Testing: Test the association at working weight some time recently putting into service

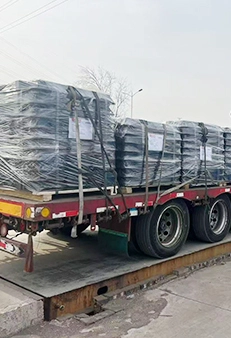

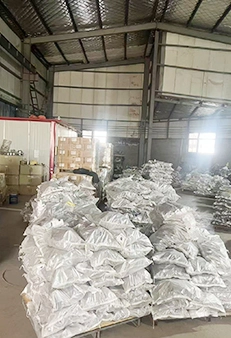

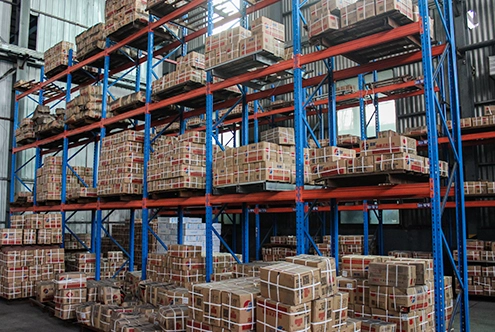

Packaging and Shipping
We give secure bundling with defensive caps and point by point labeling for simple recognizable proof. Standard shipping incorporates defensive wrapping to avoid harm amid transport. Bulk orders are accessible with customized bundling solutions.
Quality Control

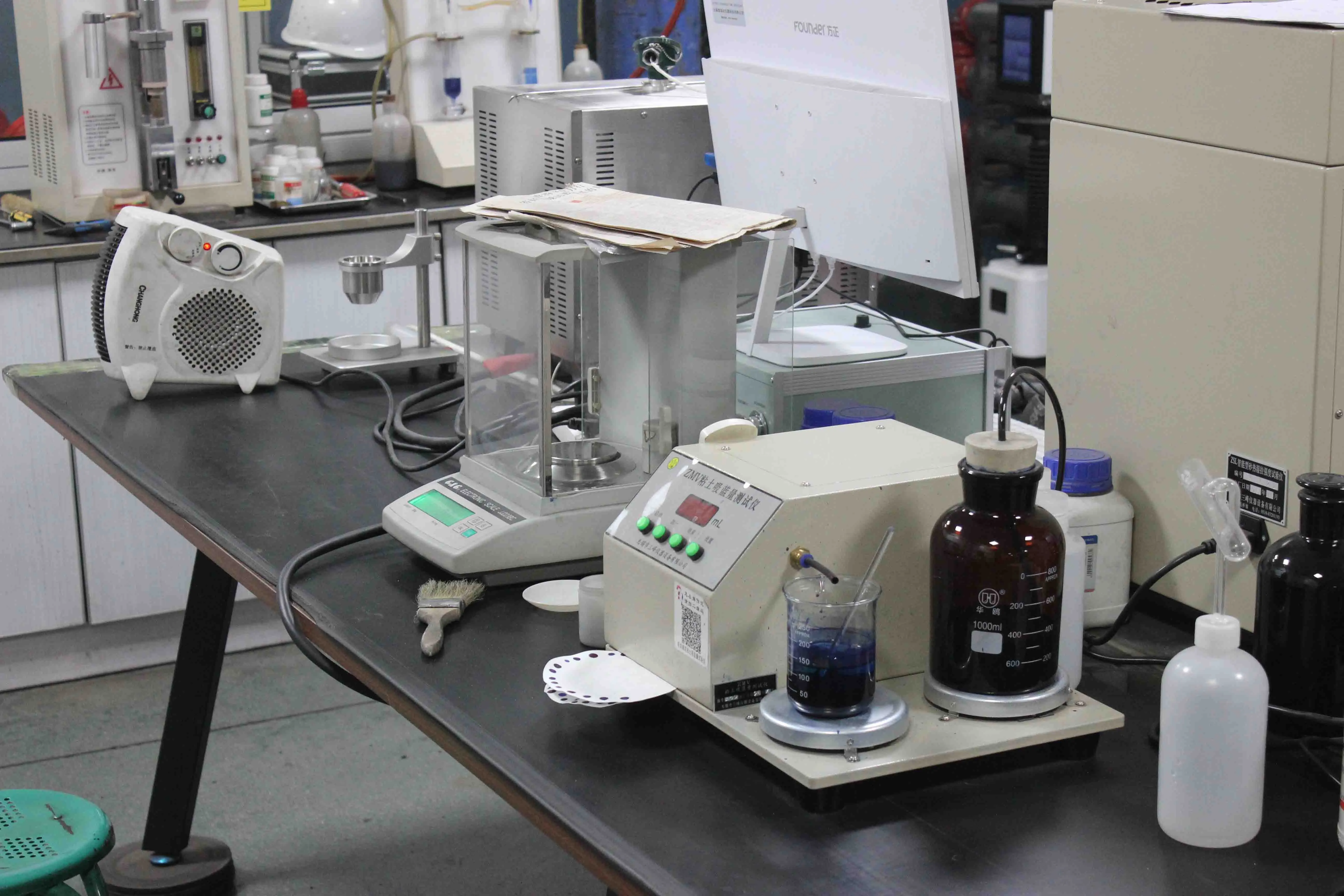

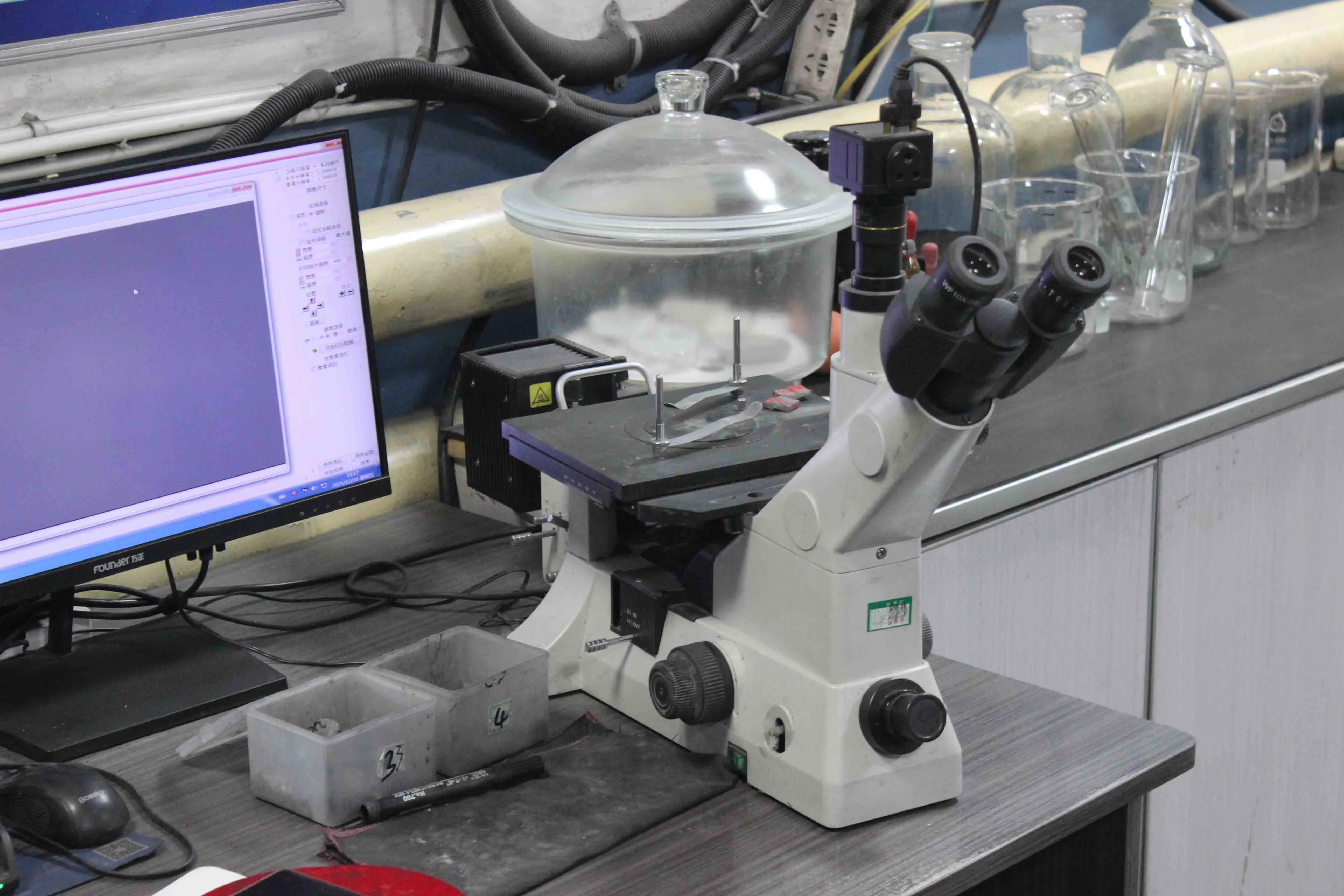

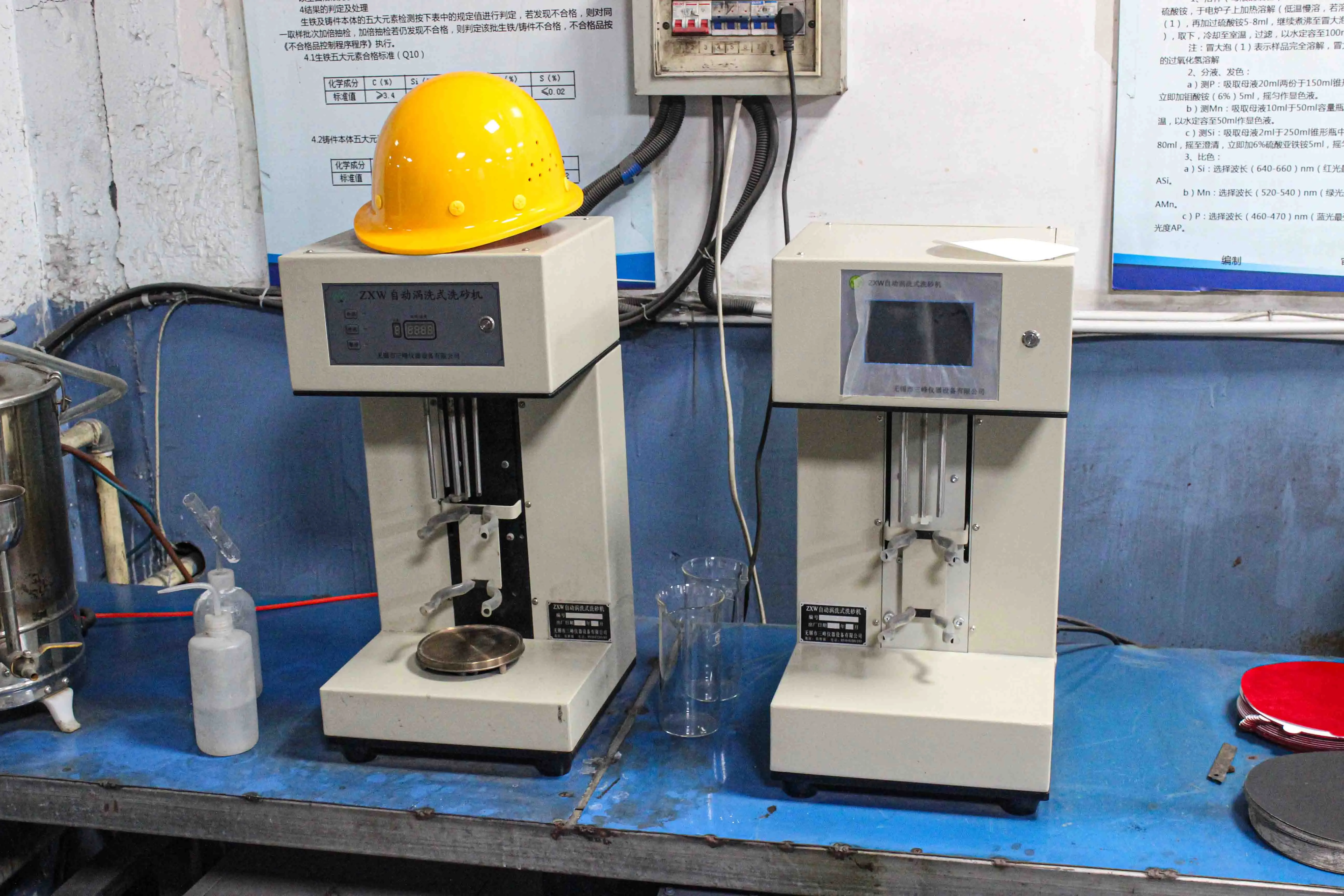

Our comprehensive quality control prepare incorporates fabric confirmation, dimensional review, string gage testing, and weight testing. Each group experiences thorough quality checks taking after our ISO9001 certified methods to guarantee steady performance.
OEM and Customization Services

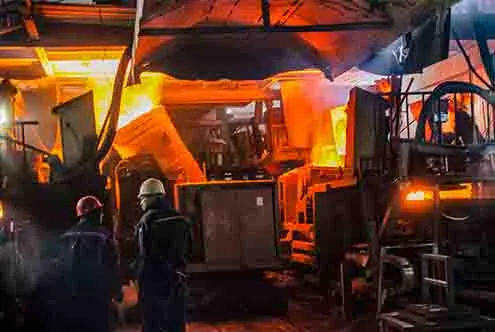

With 26 a long time of casting skill and yearly generation capacity of 30,000 tons, we offer comprehensive customization administrations counting uncommon sizes, altered threading, and custom surface medications to meet your particular requirements.
Frequently Asked Questions
Q: What's the difference between black and galvanized caps?
A: Black caps resist zinc flaking issues in gas applications and provide better high-temperature performance.
Q: Can these caps be reused?
A: Yes, our product can be removed and reinstalled multiple times when proper installation procedures are followed.
Q: What thread sealant should I use?
A: We recommend high-quality pipe thread compound rated for your specific application temperature and pressure.
Contact Us
Ready to enhance your piping system reliability? Contact our technical team today for expert guidance on selecting the right NPT Black Cap Pipe Fittings for your application.
Email: zhiyuan@mifittings.com
Our experienced engineers are ready to help you find the perfect solution for your industrial piping needs.
