NPT Black Male-Female Union 331 Pipe Fittings
2.Dual-threaded detachable joint, easy maintenance .
3.Industrial water/gas pipeline fitting .
4.Precision-threaded black malleable iron .
5.High-strength, corrosion-resistant 331 union .
6.NPT/BSPT compatible male-female union .
7.Industrial-grade 331 black malleable fitting .
8.Durable dual-thread 331 union connector
Description

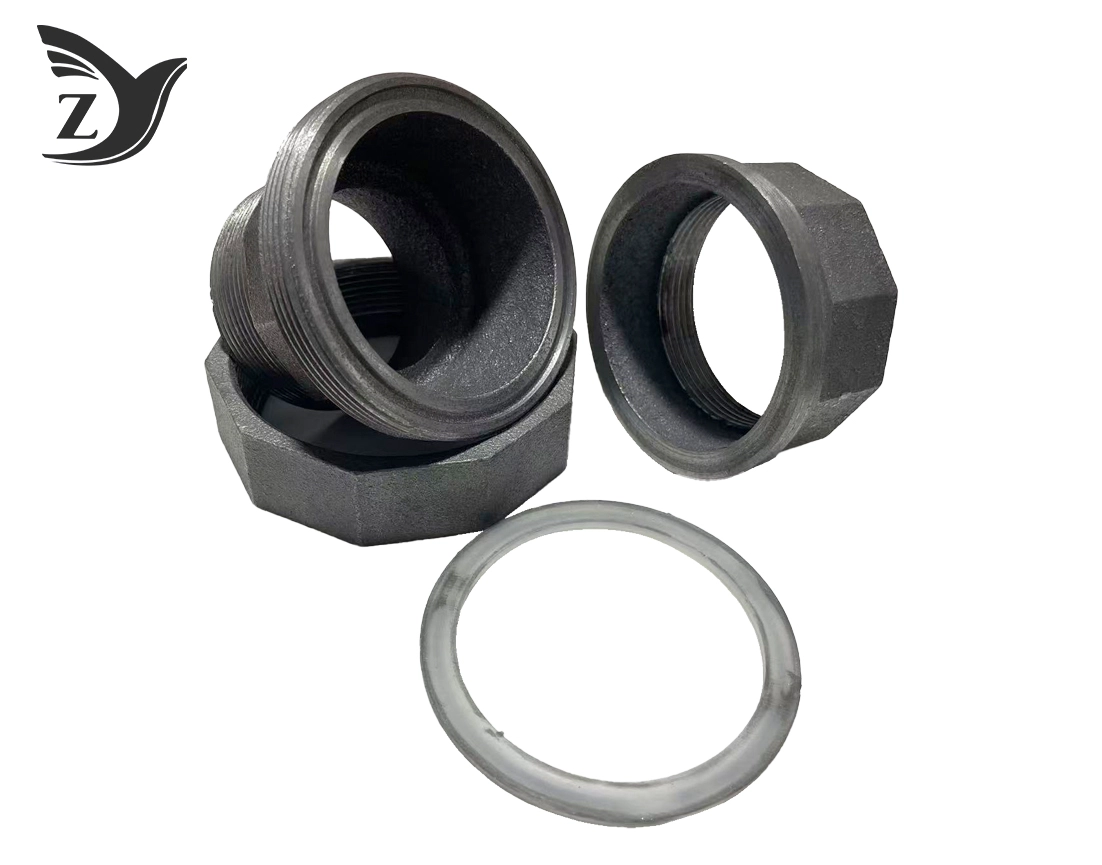

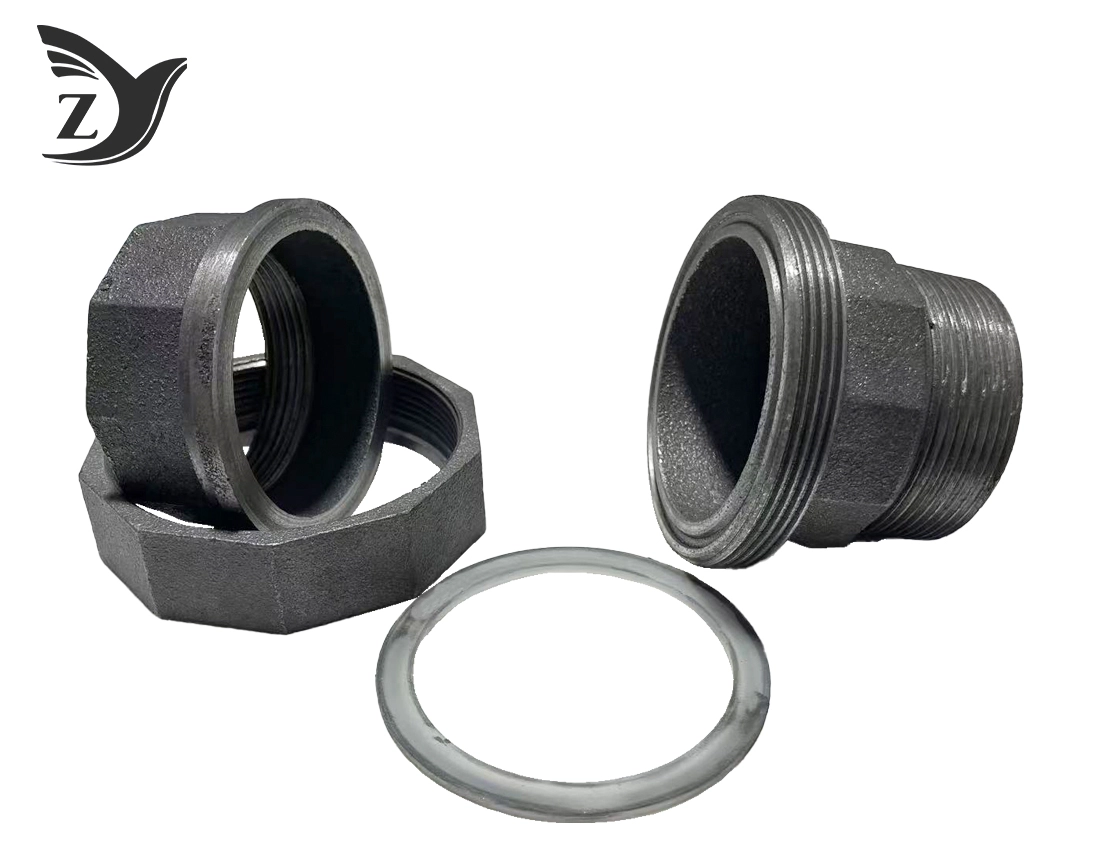

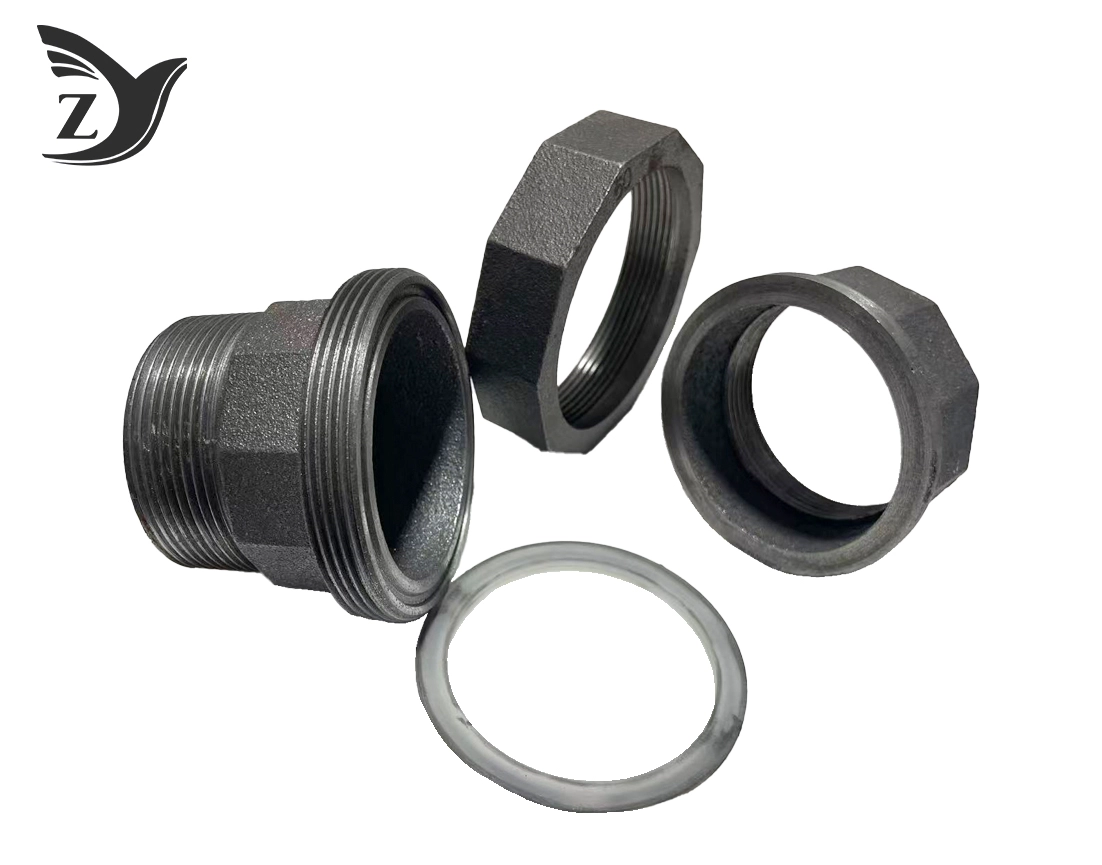

NPT Black Male-Female Union 331 Pipe Fittings - Premium Industrial Connection Solutions
Looking for reliable pipe connection solutions that save installation time while ensuring leak-proof performance? NPT Black Male-Female Union 331 Pipe Fittings from Shanxi Taigu Zhiyuan offer the culminate reply. These specialized three-piece separable components include one male NPT strung conclusion and one female NPT strung conclusion, dispensing with the require for extra areolas in your channeling framework. Made from high-grade dark flexible press, these fittings essentially diminish establishment length and minimize potential spill focuses by 50%. Whether you're working with gas, oil, or steam frameworks, these industrial-grade fittings give extraordinary unwavering quality and upkeep comfort for your most requesting applications.
Product Overview
Our dark male-female union 331 fittings speak to over 26 a long time of casting skill and fabricating greatness. Each fitting is precision-engineered from ASTM A197 moldable press, conveying predominant execution in low-to-medium weight applications. The special male-female arrangement kills common establishment challenges whereas giving simple support access.
Technical Specifications
| Specification | Details |
|---|---|
| Material | Malleable Iron (ASTM A197) |
| Thread Type | NPT (National Pipe Taper) |
| Thread Standard | ANSI/ASME B1.20.1 |
| Pressure Rating | Class 150 (150 psi SWP / 300 psi WOG) |
| Tensile Strength | Minimum 40,000 psi (350 MPa) |
| Surface Treatment | Black Oxide/Rust Preventative Coating |
| Seat Design | Flat or Gasketed Seat |
| Operating Temperature | -20°F to 400°F (-29°C to 204°C) |
Key Features
- Space-Saving Plan: Decreases add up to establishment length compared to conventional connections
- Dual Threading: Male and female NPT closes for flexible applications
- Three-Piece Development: Detachable plan for simple support and hardware replacement
- Superior Quality: ASTM A197 flexible press offers improved durability
- Leak-Resistant: Exactness threading guarantees dependable fixing performance
- Vibration Retention: Adaptable plan suits minor arrangement variations
Dimensions and Specifications Table
| Size (Inches) | Thread Length Male End | Thread Length Female End | Overall Length | Hex Nut Size |
|---|---|---|---|---|
| 1/8" | 0.40" | 0.27" | 1.69" | 0.75" |
| 1/4" | 0.40" | 0.32" | 1.81" | 0.94" |
| 3/8" | 0.43" | 0.32" | 1.94" | 1.06" |
| 1/2" | 0.54" | 0.36" | 2.13" | 1.31" |
| 3/4" | 0.55" | 0.43" | 2.44" | 1.56" |
| 1" | 0.68" | 0.54" | 2.81" | 1.88" |
Materials and Surface Treatment
Your fittings are made from premium flexible press assembly ASTM A197 measures. This fabric choice gives remarkable ductile quality whereas keeping up the ductility required for solid establishment. The dark wrap up highlights a defensive coating that avoids erosion amid capacity and gives fabulous compatibility with gas and oil applications.
Standards and Certifications
- ASME B16.39 compliance
- ASTM A197 material standards
- ANSI/ASME B1.20.1 threading specifications
- ISO 9001 quality management system
Application Areas
NPT Black Male-Female Union 331 Pipe Fittings excel in numerous industrial applications:
- HVAC Steam Frameworks: Idealize for steam trap associations and return lines
- Natural Gas Conveyance: Perfect for meter associations and complex systems
- Industrial Apparatus: Fundamental for water powered and grease line retrofitting
- Commercial Warming: Dependable execution in expansion/contraction cycles
- Oil Conveyance Frameworks: Vigorous development handles vibration and mechanical stress
Installation Instructions
- Preparation: Clean all string surfaces and apply suitable pipe compound
- Assembly: Hand-tighten the male conclusion into the female socket
- Union Association: Adjust the union faces and position the gasket if required
- Final Fixing: Fix union nut until situated, at that point development 1/4 to 1/2 turn
- Testing: Perform weight test agreeing to framework requirements
- Warning: Dodge over-torquing as this may mutilate the nut or split the casting.

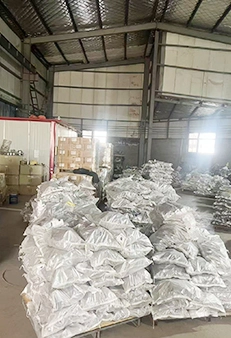

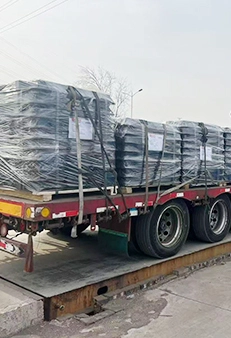

Packaging and Shipping
Each fitting is carefully packaged to prevent damage during transit. We use protective materials and secure packaging methods to ensure your NPT Black Male-Female Union 331 Pipe Fittings arrive in perfect condition. Standard shipping options include bulk packaging for large orders and individual protection for smaller quantities.
Quality Control
Our ISO 9001 certified fabricating handle guarantees steady quality. Each fitting experiences thorough testing including:
- Dimensional verification
- Thread accuracy inspection
- Pressure testing

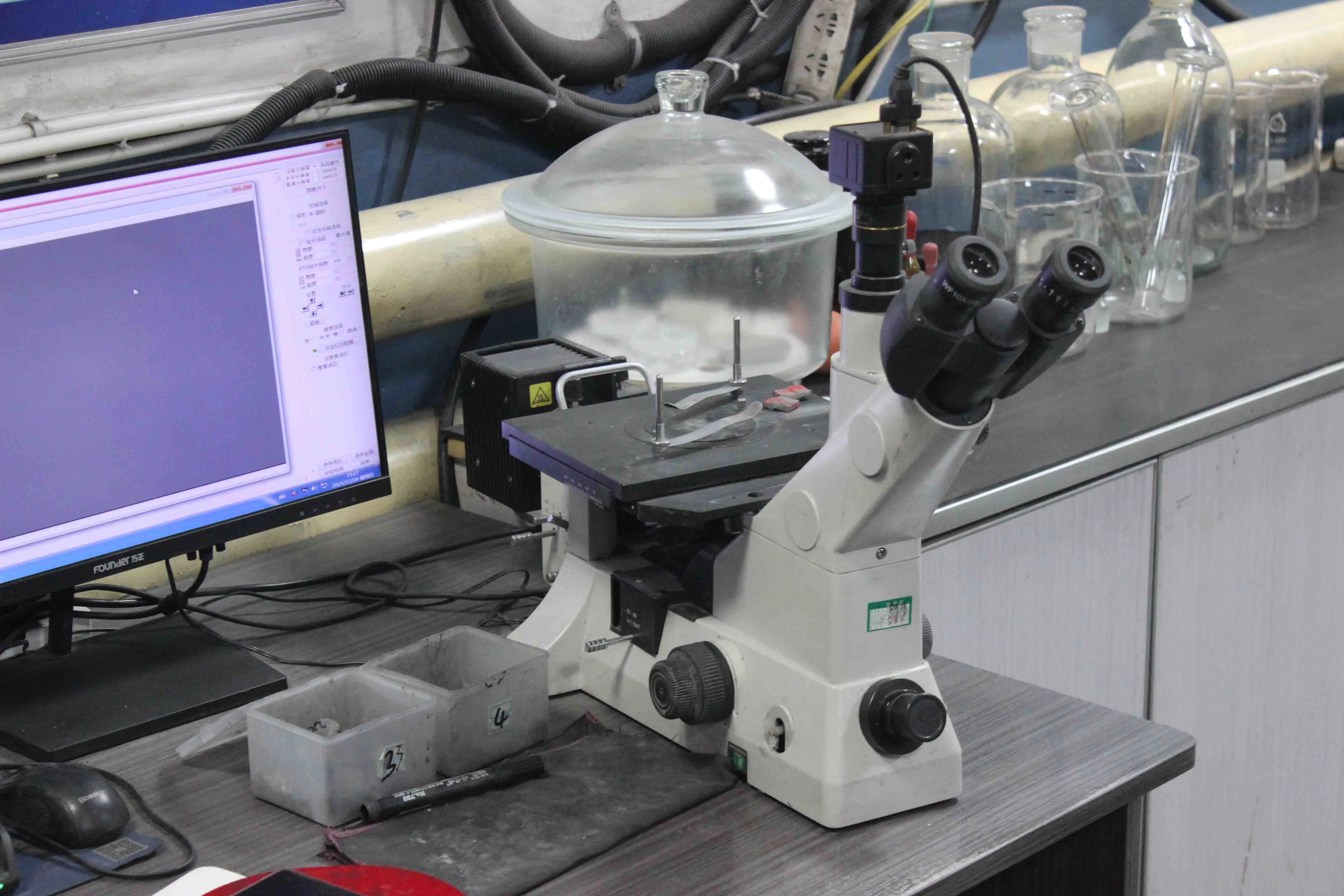

- Material composition analysis
- Surface finish quality checks
OEM and Customization Services
With our yearly generation capacity of 30,000 tons and over 1,000 item details, we offer comprehensive customization administrations. Our group of 38 proficient specialists can create custom arrangements to meet your particular requirements.
Frequently Asked Questions
Q: What's the difference between Figure 330 and 331 unions?
A: Figure 330 features female-female ends, while 331 offers male-female configuration, eliminating the need for additional nipples.
Q: Can these fittings handle steam applications?
A: Yes, they're rated for 150 psi saturated steam and commonly used in HVAC steam systems.
Q: Why choose black finish over galvanized for gas lines?
A: Black malleable iron prevents coating flaking that could clog gas regulators, making it the industry standard.
Q: What's the recommended installation torque?
A: Tighten until seated firmly, then advance 1/4 to 1/2 turn. Unlike NPT threads, don't over-torque the union nut.
Contact Us
Ready to experience the reliability and convenience of our NPT Black Male-Female Union 331 Pipe Fittings? Our experienced team is here to help you select the perfect solution for your application.
Email: zhiyuan@mifittings.com
Contact us today for technical specifications, custom solutions, or to discuss your specific piping requirements. Let our 26 years of manufacturing expertise work for your next project.
