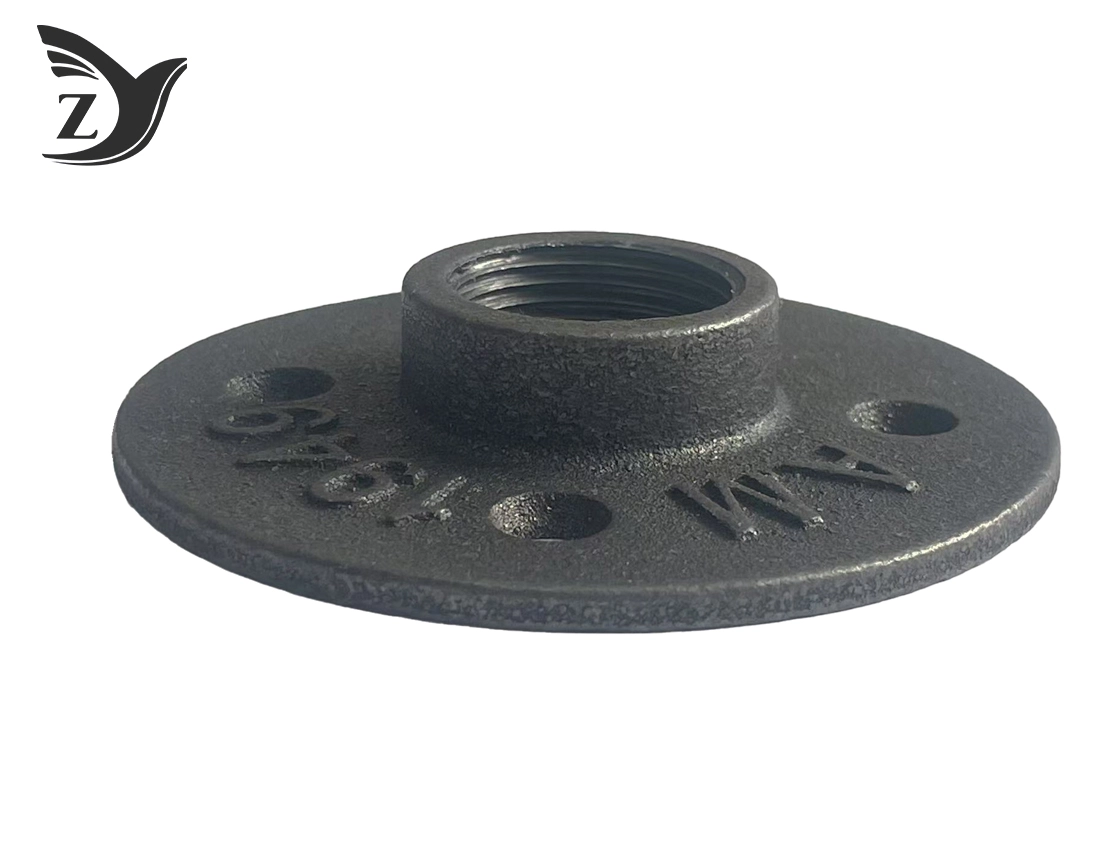

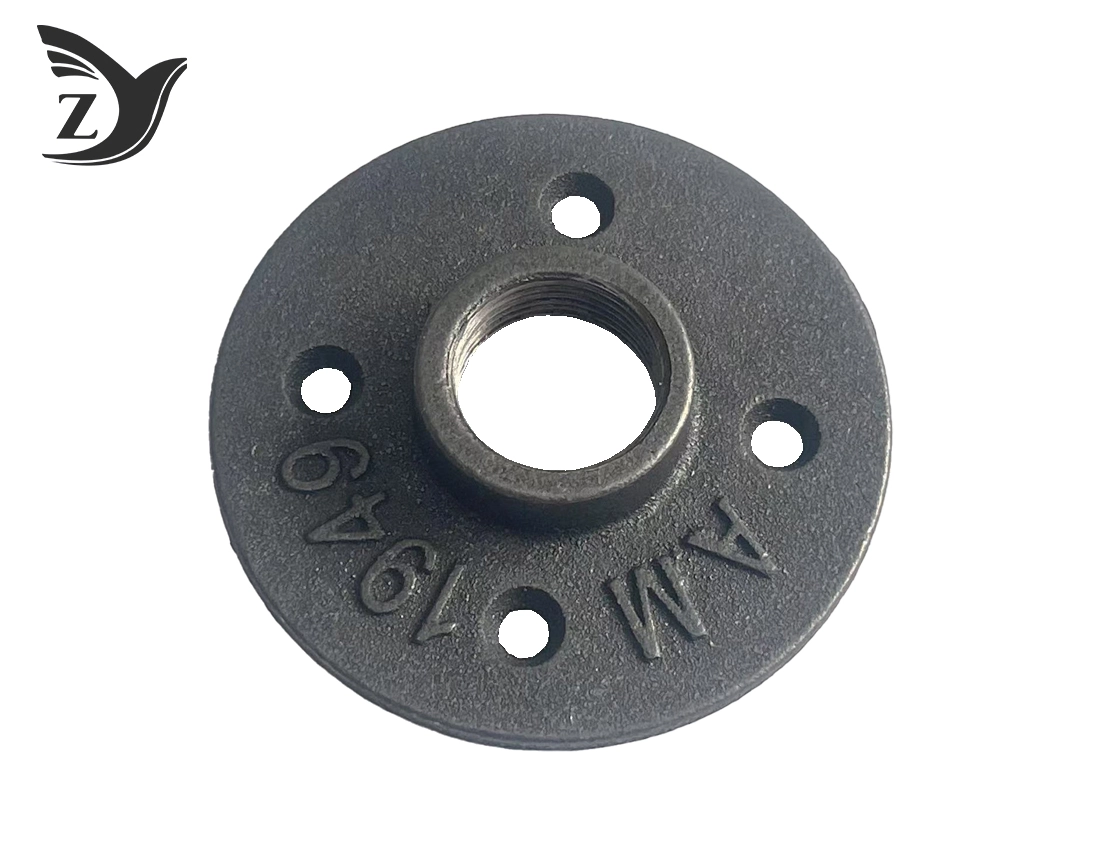

NPT Black Flange Pipe Fittings
2.Industrial pipe connection, threaded flange .
3.Water/gas pipeline high-strength flange .
4.Black malleable, precision-threaded NPT/BSPT .
5.Corrosion-resistant industrial flange connector .
6.NPT/BSPT compatible black malleable flange .
7.Industrial-grade pipe flange for secure joining .
8.Durable black malleable iron pipe flange
Description

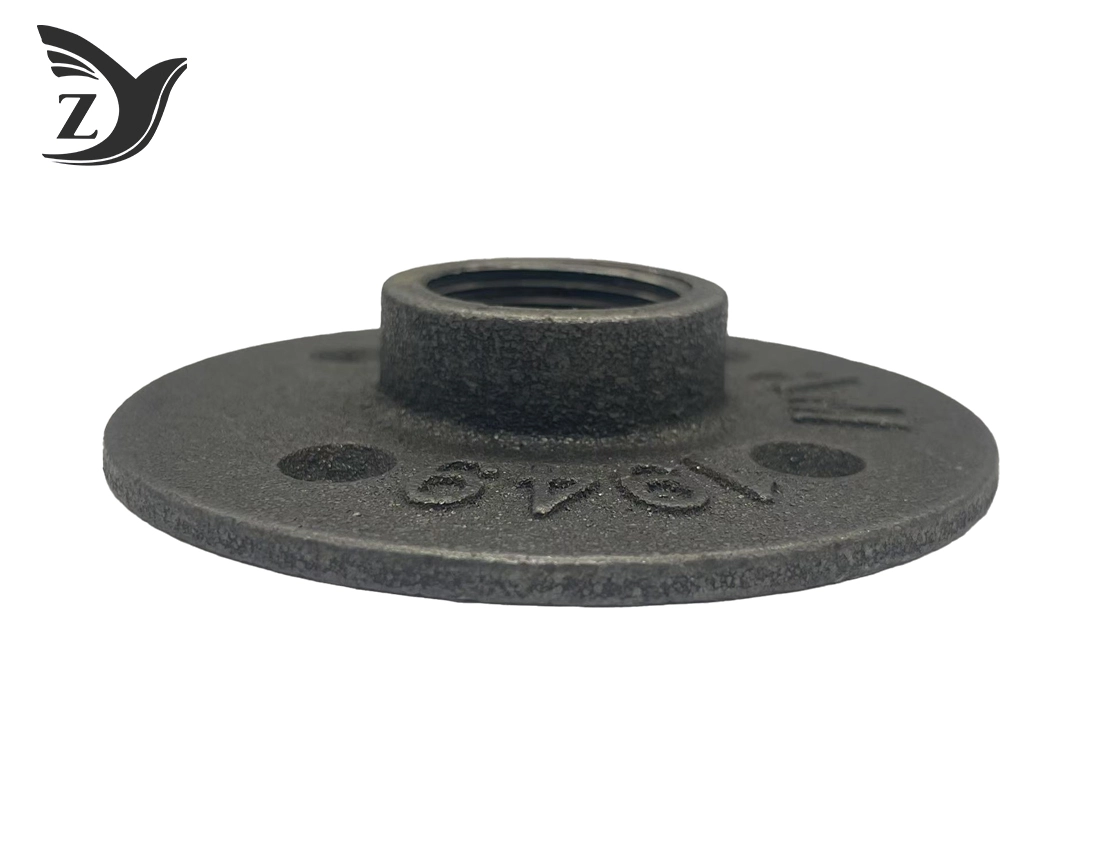

NPT Black Flange Pipe Fittings - Heavy-Duty Industrial Connection Solutions
Looking for reliable pipe connection solutions that can handle high-pressure industrial applications? Our NPT Black Flange Pipe Fittings convey the quality and toughness your framework needs. These specialized components combine the demonstrated NPT string component with vigorous spine interfacing, making them culminate for interfacing pipe segments to gear like pumps, valves, and vessels. Fabricated from premium flexible press with a defensive dark wrap up, these fittings give secure associations without requiring welding operations.
Product Overview
Our NPT dark spine fittings unravel basic mechanical challenges. You get non-welded network for unsafe situations where hot work is disallowed. The secluded plan permits simple upkeep get to through bolt-on associations. Furthermore, the moldable press development guarantees galvanic compatibility with dark steel channeling systems.
These fittings exceed expectations in applications requiring stun resistance and warm steadiness. The dark oxide coating gives fundamental rust security amid capacity and transport.
Technical Specifications
Core Material Properties:
- Material: High-grade Malleable Iron (ASTM A197)
- Tensile Strength: Minimum 40,000 psi (276 MPa)
- Yield Strength: Minimum 30,000 psi (207 MPa)
- Elongation: Minimum 5% in 2 inches
- Thread Standard: ASME B1.20.1 NPT precision threads
- Thread Angle: 60-degree with 3/4 inch per foot taper
Key Features
Superior Toughness: Not at all like gray cast press, our pliable press development retains affect and warm push without cracking.
Leak-Tight Fixing: Exactness NPT strings make mechanical impedances fits that fix amid installation.
Pressure Capability: Class 150 ratings handle 300 PSI at room temperature, with Class 300 variants for higher pressures.
Easy Establishment: Flanged head plan gives ideal torque engagement whereas anticipating over-torquing.
Corrosion Security: Dark oxide wrap up offers dependable rust restraint and great paint adhesion.
Dimensions and Specifications Table
| Size (NPT) | Overall Length | Flange Diameter | Thread Length | Pressure Rating | Weight (lbs) |
|---|---|---|---|---|---|
| 1/8" | 0.75" | 0.625" | 0.5" | 300 PSI | 0.05 |
| 1/4" | 0.875" | 0.75" | 0.625" | 300 PSI | 0.08 |
| 3/8" | 1.0" | 0.875" | 0.75" | 300 PSI | 0.12 |
| 1/2" | 1.125" | 1.0" | 0.875" | 300 PSI | 0.18 |
| 3/4" | 1.25" | 1.25" | 1.0" | 300 PSI | 0.28 |
| 1" | 1.5" | 1.5" | 1.125" | 300 PSI | 0.42 |
Materials and Surface Treatment
We fabricate these fittings from premium moldable press that gives extraordinary ductility compared to standard cast press. The ferritic structure guarantees solid execution beneath warm cycling conditions.
The dark wrap up comprises of either dark oxide coating or defensive enamel. This treatment avoids oxidation amid capacity whereas keeping up string keenness. The wrap up too gives great base arrangement for extra defensive coatings if required.
Standards and Certifications
Our NPT Black Flange Pipe Fittings comply with industry benchmarks counting ASME B16.3 for measurements and ASTM A197 for fabric properties. We keep up strict quality control through ISO9001 certified fabricating processes.
All items experience thorough weight testing and dimensional confirmation some time recently shipping. Our quality framework guarantees reliable execution over each batch.
Application Areas
Industrial Gas Frameworks: Culminate for normal gas and propane conveyance where zinc-flaking from galvanized fittings seem cause problems.
Steam Warming: Perfect for moo to medium weight steam frameworks in commercial and regulation buildings.
Fire Assurance: Fundamental for hydrostatic testing of sprinkler frameworks and brief line sealing.
Heavy Apparatus: Utilized in pressure driven return lines and gear deplete ports where flotsam and jetsam resistance matters.
Chemical Handling: Appropriate for non-corrosive chemical applications requiring detachable connections.
Installation Instructions
Clean all strings altogether some time recently establishment. Apply fitting string sealant (pipe dope or PTFE tape) to male strings as it were. Hand-start the fitting to anticipate cross-threading.
Use legitimate torques on the rib surfaces, not the strings. Fix until the strings lock in completely additionally 1-3 extra turns. Maintain a strategic distance from over-torquing which can harm the fitting or mating component.
For gas applications, perform spill testing with endorsed discovery arrangements after installation.

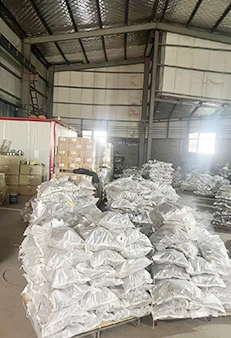

Packaging and Shipping
We secure your fittings with person poly sacks and bulk cartons for secure transport. Standard bundling avoids string harm amid shipping. Custom bundling accessible for huge orders.
Typical lead times range from 2-4 weeks depending on quantities and specifications. We ship globally with full tracking and insurance coverage.
Quality Control
Every fitting experiences multi-stage review counting fabric confirmation, dimensional checking, and weight testing. Our 38 proficient specialists guarantee reliable quality over our 1,000+ item specifications.
With 26 a long time of fabricating encounter and 30,000 tons yearly capacity, we convey dependable items you can trust.
OEM and Customization Services
Need custom details? Our designing group can alter measurements, materials, or wraps up to meet your correct prerequisites. We offer private labeling and custom bundling for OEM customers.
Minimum arrange amounts shift by customization level. Contact us to talk about your particular needs and timeline requirements.
Frequently Asked Questions
Q: What's the difference between NPT and BSPT threads?
A: NPT uses a 60-degree thread angle with 3/4" per foot taper. BSPT has a 55-degree angle. Both are available in our product line.
Q: Can these fittings handle steam applications?
A: Yes, they're rated for temperatures up to 366°F for saturated steam at reduced pressures.
Q: What thread sealant should I use?
A: For gas: approved pipe dope. For water/steam: PTFE tape or liquid sealant. Never use tape on gas lines.
Q: How do I prevent galvanic corrosion?
A: Use our black iron fittings with black steel pipe. Avoid mixing with galvanized components in the same system.
Contact Us
Ready to upgrade your piping connections with professional-grade NPT Black Flange Pipe Fittings? Our technical team is standing by to help you select the right specifications for your application.
Get expert support and competitive pricing today. Email us at zhiyuan@mifittings.com for quotes, technical questions, or custom requirements. Experience the Shanxi Taigu Zhiyuan difference in quality and service.
