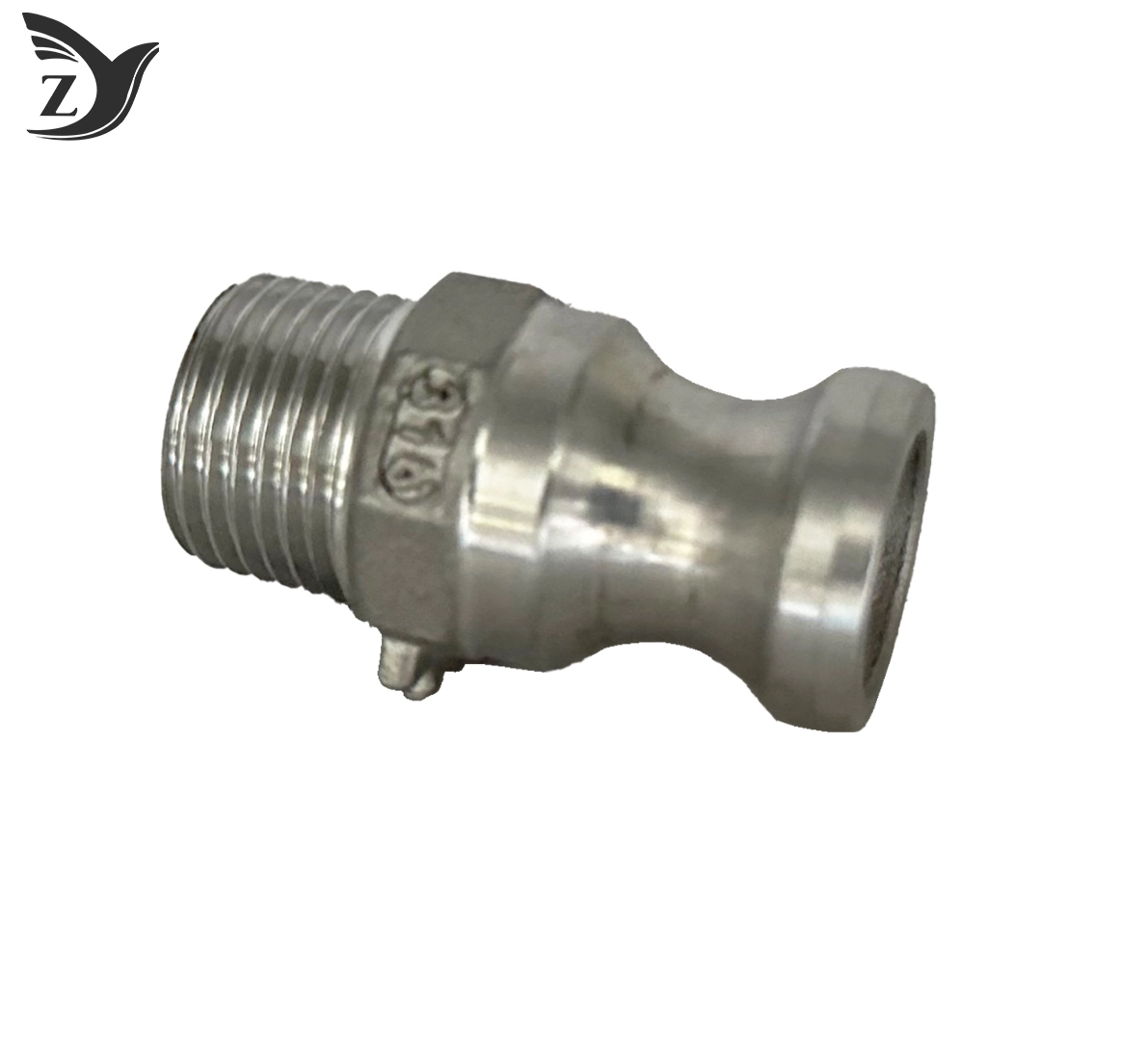

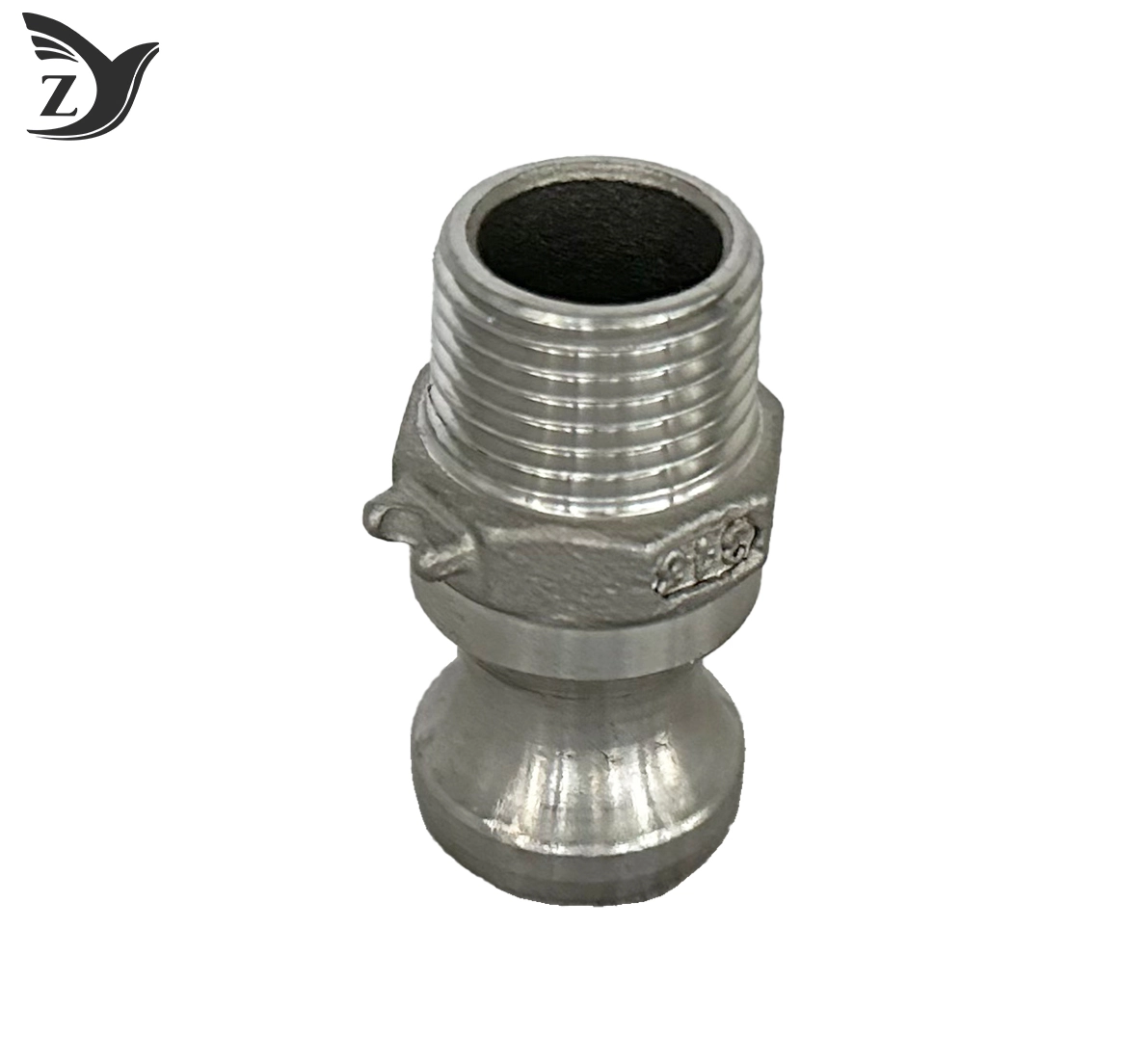

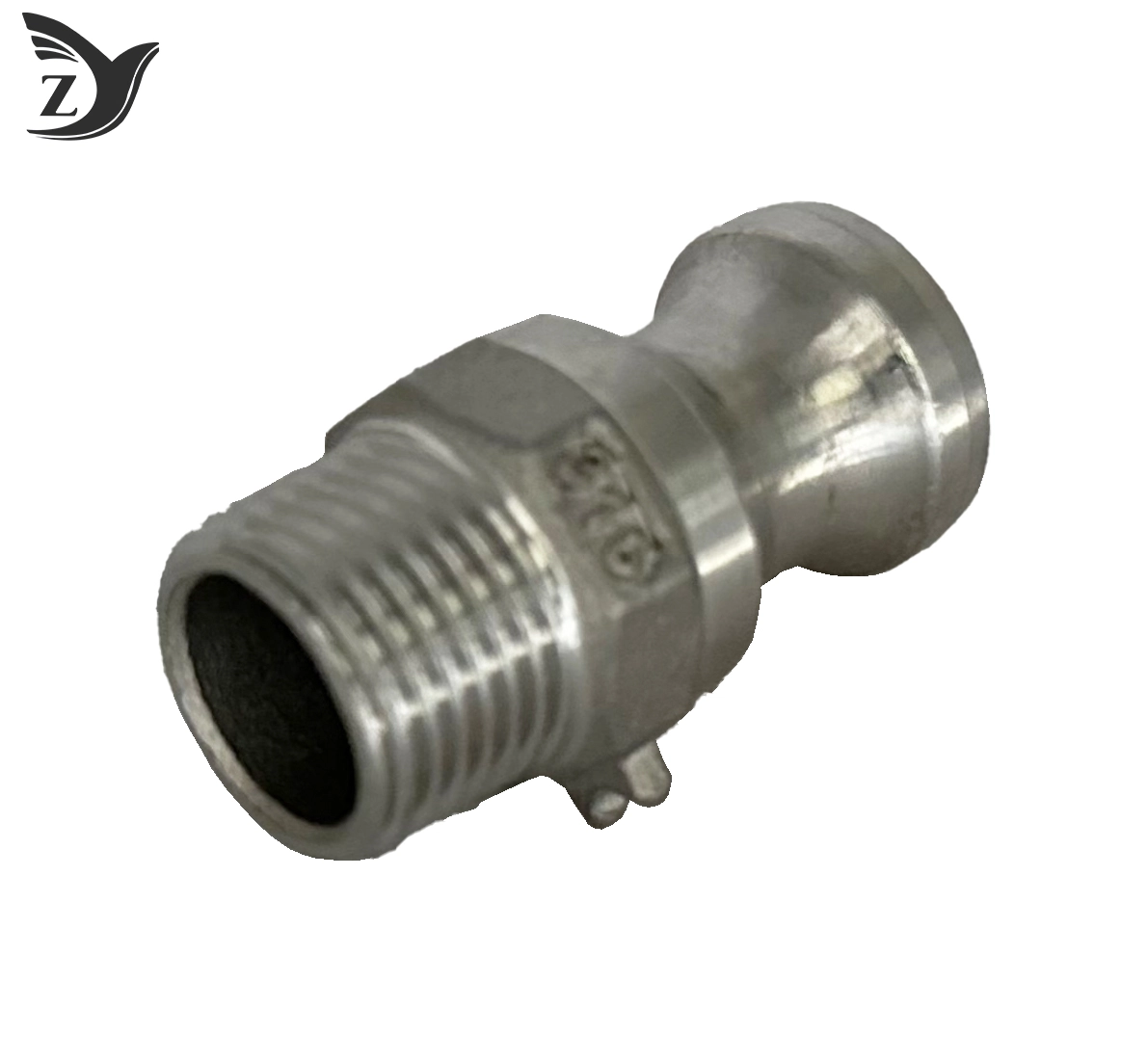

304 stainless steel quick‑press type A fittings
2.ASTM‑standard SS304 material delivers outstanding anti‑corrosion performance .
3.Type A clamping structure needs no welding or thread processing on site .
4.Precision molded sealing ring achieves leak‑proof long‑term sealing effect .
5.Smooth inner wall cuts fluid resistance and guarantees steady medium delivery .
6.Lightweight structure shortens construction duration and lowers labor cost .
7.Widely applicable in drinking water, heating and fire protection piping projects .
8.Each batch passes hydraulic pressure testing before factory delivery
Description
304 Stainless Steel Type A Quick‑Press Pipe Fitting
Engineered for fast pipeline connection in water supply systems, our ASTM SS304 Type A quick‑press fitting acts as a premium connector for drinking‑water, heating, fire protection and commercial plumbing projects. It adopts precision stamped Type A clamping structure with food‑grade sealing rings, realizing leak‑proof connection without on‑site welding or threading and greatly shortening construction duration. Manufactured from standard 304 stainless steel with smooth inner wall, the product delivers outstanding rust resistance and low fluid resistance during medium transportation. It maintains stable sealing performance under long‑term cyclic pressure working conditions. Optional mirror polishing surface finishing upgrades appearance quality and extends service life for both indoor and outdoor piping systems. Regular stocked specifications cover mainstream pipe diameters for fast bulk shipment. Custom wall thickness adjustment, OEM laser logo engraving and special‑size machining services are available upon request. These 304 stainless steel Type A quick‑press fittings are widely applied in residential water supply projects, commercial buildings, central heating networks, fire protection pipeline systems and drinking‑water treatment facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 304 Stainless Steel Type A Quick‑Press Pipe Fitting |
| Pressure Class | Medium Pressure Grade |
| Raw Material | ASTM‑compliant SS304 stainless steel with compact uniform microstructure, excellent rustproof and anticorrosion performance |
| Surface Finish | Optional mirror polishing / matte treatment; smooth inner wall reduces fluid resistance |
| Connection Type | Type A quick‑press clamping connection with food‑grade sealing ring; welding‑free onsite installation, reliable leakproof effect |
| Working Temperature | -20℃ ~120℃ |
| Applicable Medium | Drinking water, heating circulating water, fire‑fighting water, neutral industrial fluids |
| Certification Standard | Produced following international standards for stainless steel press‑fit piping components |
| Application Scenario | Residential water supply, commercial buildings, central heating systems, fire protection pipelines, water treatment projects |
Key Features
1.Superior Environmental Adaptability
Forged from ASTM-certified 304 stainless steel, the quick‑press fitting withstands humid coastal atmosphere, domestic water and weakly corrosive liquids. It keeps stable performance in outdoor water supply piping systems and food‑grade operating environments to achieve long service life.
2.Reliable Sealing of Type A Press Connection
Food‑grade rubber sealing rings are embedded inside precision stamped grooves. Compression sealing forms after professional clamping construction without welding or threading on site, effectively preventing medium seepage under long‑term pressurized operation.
3.Compact Structure Optimizes Pipeline Design
The standardized connection structure fits matched stainless steel pipes perfectly, reducing extra adapters and simplifying on‑site layout work to shorten overall piping construction period.
4.Smooth Inner Cavity Optimizes Fluid Transport
Precision polished seamless inner wall lowers flow turbulence and pressure drop. Medium circulates steadily inside the pipeline to cut energy consumption of rear pumping equipment.
5.Diversified Scenarios & Flexible Customization
Fit for residential water supply projects, commercial plumbing, fire protection pipelines and heating circulation systems. Conventional sizes are stocked for bulk orders; customized wall thickness, laser marking and non‑standard dimension processing are supported for OEM cooperation.
Dimensions and Specifications
Our 304 stainless steel Type A quick‑press fittings cover a full range of standard inch sizes, mainstream specifications are listed below:
- 1/2", 3/4", 1"
- 1‑1/4", 1‑1/2", 2", 2‑1/2", 3", 4"
- Custom dimensions, OEM laser marking and dedicated export packaging services are available
Each elbow is manufactured under strict dimensional tolerance management. Its integrated 90° male-female threaded structure matches precision conical sealing surfaces to sustain stable sealing performance, effectively preventing medium leakage during long-term operation in diverse working scenarios.
Materials and Surface Treatments
1.Main Body Raw Material
Fabricated from ASTM‑compliant SS304 stainless steel, the quick‑press fitting delivers outstanding rust and corrosion resistance against water, oil, gas and weak acidic media. It operates stably in food processing, chemical production, water treatment and marine piping systems to realize directional turning and branching of pipeline routes.
2.Surface Finish
Standard pickling and passivation treatment forms a compact passive anticorrosive film to isolate rust, moisture and mild chemical erosion, supporting reliable use for indoor and outdoor industrial pipelines. Two surface options are available as requested: natural matte finish and mirror polishing finish.
3.Connection Processing
Both ends adopt precision‑stamped Type A standard clamping grooves with neat groove profiles for firm assembly with matched pipes. Combined with precision food‑grade rubber elastic sealing design, the connecting positions remain leakproof during long‑distance fluid transportation.
Standards and Certifications
Our products are manufactured in strict accordance with global industrial quality norms:
- Fabricated following official process specifications for stainless steel press-fit pipe fittings
- Production system certified to ISO 9001 quality management standards
Prior to packaging and shipment, every 304 stainless steel Type A quick‑press fitting undergoes comprehensive testing. Inspection items include sealing reliability, groove dimensional accuracy and anticorrosion performance.
Applications
1.Petrochemical & Industrial Pipeline
Our Type A quick‑press fittings work steadily in factory piping systems for water, gas, oil and low‑corrosion fluid transmission. They can complete pipeline steering and branch connection to simplify later equipment maintenance and pipeline upgrading.
2.Shipbuilding & Marine Pipeline Systems
Commonly used for offshore domestic water supply, fuel delivery and heating pipe networks. The outstanding anti‑rust and salt‑spray resistant performance enables stable operation in damp, corrosive marine environments.
3.Food & Water Treatment Piping
Ideal for drinking water projects, beverage production lines and water treatment piping systems. 304 stainless steel meets high hygiene requirements and will not cause secondary pollution to transported media.
4.Heating & General Industrial Fluid Delivery
Suitable for central heating circulation pipelines, compressed air pipelines and various industrial fluid conveying lines. The A‑type clamping joint is easy to disassemble, which greatly improves efficiency during daily system maintenance.
Installation Instructions
- TThread Pre-treatment: Clean the NPT/BSPT threaded sections and matching pipe threads; remove rust, oil stains and burrs before assembly.
- Controlled Torque Fastening: Tighten the fitting with appropriate torque. Excessive tightening shall be avoided to prevent thread deformation and sealing surface damage.
- Pressure Leak Test: Conduct pressure testing after installation to confirm reliable sealing of threaded joints and conical fitting surfaces.
- Periodic Inspection: Inspect threaded connections regularly to guarantee long-term safe operation of the piping system.
Comply with industrial threaded piping specifications and local safety regulations during installation.
Packaging and Shipping
Every 304 stainless steel Type A quick‑press fitting is wrapped with anti‑collision protective film to prevent surface scratches and groove deformation in transit. Moisture‑proof packaging keeps the pickled passivated surface and precision‑stamped grooves intact. Bulk orders are palletized with export‑standard pallets for convenient handling and container loading.
Our factory is located in Taigu, Shanxi Province. We cooperate with seasoned global logistics networks covering main overseas ports, providing steady and cost‑effective bulk shipment services for industrial piping projects across the world.
Quality Control
1.Raw Material Spectral Composition & Mechanical Test
Every batch of ASTM SS304 stainless steel raw material undergoes full spectral analysis and mechanical property testing, to meet the official technical standards for stainless steel pipe fittings.
2.Hydraulic Sealing Pressure Inspection
Finished 304 stainless steel Type A quick‑press fittings are randomly sampled for hydraulic sealing tests under rated working pressure, to confirm the zero‑leakage performance of crimped sealing surfaces.
3.Groove Dimension Precision Calibration
Special go-no-go gauges are used to check the width, depth and tolerance of clamping grooves. This guarantees tight matching with standard stainless steel pipes and stable sealing after crimping.
4.Full Surface Visual Defect Screening
After pickling and passivation, all products go through 100% manual visual inspection. Workers remove burrs, stains and surface imperfections on grooves and outer shells, so the fittings can maintain reliable corrosion resistance during long‑term use.
OEM and Customization Services
We keep stable annual production capacity and accept bulk OEM & ODM custom orders. Our professional engineering team provides one‑stop customized solutions for various industrial pipeline projects, including customized wall thickness, non‑standard dimensions, laser engraved brand logos and dedicated export packaging. We own a complete set of molds covering sizes from 1/2 inch to 4 inches, which can effectively shorten the lead time for sample trial production and mass delivery.
FAQ
Q:Can this 304 stainless steel Type A quick‑press fitting be buried underground?
A: Outer anti‑corrosion treatment must be carried out before buried installation. Direct burial without protective measures will greatly shorten the service life of the fitting. We can provide customized anti‑corrosion schemes upon your demand.
Q: What is the standard installation method for this stainless steel Type A quick‑press fitting?
A: Clean the pipe surface and grooves thoroughly first, then use professional crimping tools to complete pressing operation according to operating norms. Control the force moderately to avoid damaging grooves and sealing rings, so as to realize stable long‑term leak‑free connection.
Q: Can it withstand pipeline thermal expansion?
A: The fitting belongs to rigid connecting parts. For long‑distance pipelines with obvious temperature changes, it is suggested to install expansion joints to offset stress caused by thermal deformation.
Q:Is it compatible with different steel pipes?
A:It fits standard stainless steel pipes matched with A‑type quick‑press specifications perfectly. Please check the groove dimension and pipe wall thickness before formal installation.
Q:Why pick 304 stainless steel Type A quick‑press fittings rather than carbon steel ones?
A:ASTM 304 stainless steel features outstanding rust and corrosion resistance for water, oil, gas and weak acid media. The precisely designed crimping structure supports convenient repeated disassembly, which is suitable for piping systems in food processing, water treatment, marine engineering and corrosive medium scenarios.
