What is the name of a 90 degree elbow that is male on one end and female on the other?

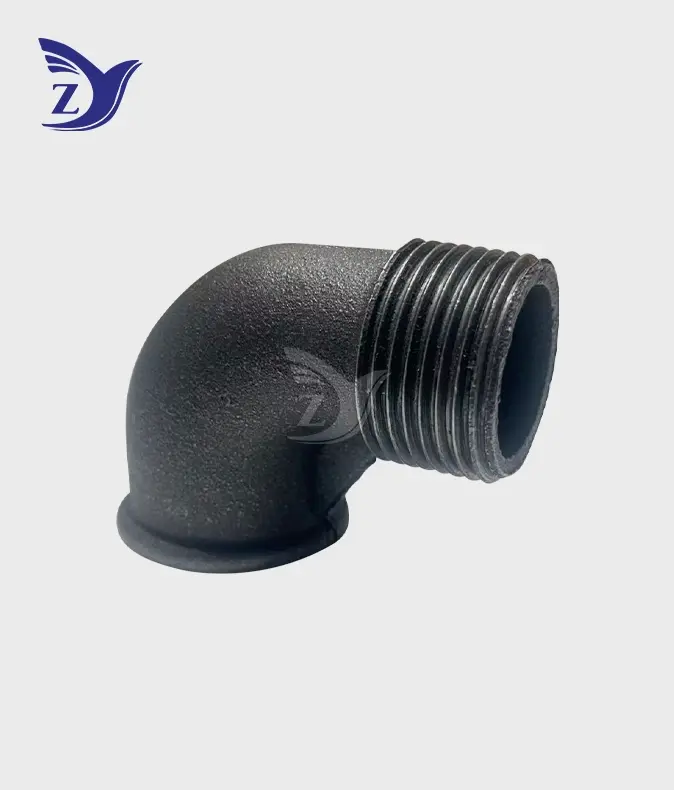

When working with industrial piping systems, you'll often encounter a specialized fitting that redirects flow at a right angle while bridging two different connection types. This component is commonly known as a street elbow or street 90°. More specifically, when manufactured from black malleable iron with a reinforced opening, it's referred to as a black round face male-female 90° elbow pipe fitting. The "male-female" designation indicates that one end features external threads (male) while the opposite end has internal threads (female), eliminating the need for additional pipe nipples in tight installations. This design proves particularly valuable in fire protection systems, municipal water lines, and HVAC applications where space constraints demand efficient directional changes.

Male-Female 90° Elbow Pipe Fittings

The words used to describe these specialized connections show how they are built and what they do in pipeline systems. The male-female configuration combines both types of connections into a single casting, which cuts down on installation time and possible leak points compared to standard elbows, which need different parts to bridge gender differences.

What Makes It "Male-Female"?

The gender is determined by the way the threads are arranged. The male end has external threads that fit into female-threaded parts, and the female end has interior threads that fit into male-threaded lines. This design for both men and women solves a common installation problem: making 90-degree turns in small areas where regular fittings and nipples won't fit. This space-saving method is used in industrial companies, home plumbing, and many other fields.

Common Industry Names and Variations

Different names may be used in professional standards to talk about these parts. The names NPT/BSPT round-edge male-female 90° elbow, dual-thread 90° pipe redirecting fitting, or industrial water/gas pipeline elbow are some which you may come across. Each name focuses on a different part, like thread standards, applications, or structural features, but they all refer to goods that are basically the same. The term "round face" refers to the beaded reinforcement ring that goes around the female hole and protects it from installation stress and changes in internal pressure.

Key Dimensions and Technical Details of Black Round Face Male-Female 90° Elbows

Understanding the size requirements and performance traits lets you build the right system and choose the right parts. These technical factors have a direct effect on how well they work, how safe they are to use, and how long they last in a wide range of uses.

Thread Types and Diameter Specifications

The black round face male-female 90° elbow pipe fittings end usually has curved threads that get a little smaller in diameter as they get closer to the tip. This makes the interference fit that is needed for connections that don't leak. Thread pitch changes based on nominal pipe size. In normal designs, it ranges from 1/8 inch to 4 inches. The female end fits male-threaded pipes that are the same size and shape, and the internal thread profiles are made to exact specs to make sure they fit correctly without cross-threading.

Products sold in the United States must meet the dimensions requirements set by ASME B16.3 standards. Products sold in other countries must meet the requirements set by ISO 49. These standards describe important measures, such as center-to-end dimensions, which show how much space fitted fittings take up. This is an important thing to think about when planning pipe layouts in mechanical rooms or under-floor installs.

Pressure Ratings and Load Capacities

Standard Class 150 fittings can handle working pressures of up to 300 PSI for water, oil, and gas (WOG) service at room temperature. For saturated steam uses, the limit drops to 150 PSI because the heat weakens the material. The black malleable iron precision-threaded construction has a tensile strength of at least 40,000 PSI and an elongation property of more than 6%. This means that the fitting can handle heat expansion and shaking without getting stress cracks.

The thicker wall at the round face support on the female end gives it more axial strength, spreading out the torque loads from the wrench and stopping it from deforming during installation. This design feature works especially well for high-strength, corrosion-resistant dual-thread elbow setups that need a lot of force to tighten properly in high-pressure systems.

Round Face Design Advantages

Round face designs are different from square face or simple designs because they have a beaded edge around the female hole. This reinforcement does a few things: it stops the mouth from breaking when installers apply pressure during makeup; it also shows installers where the fittings should go; and it spreads out stress concentrations that could otherwise cause cracks to spread. The rounded shape also makes it easier to use a wrench and keeps the threads from getting damaged during fitting.

Comparative research shows that round face shapes are about 15% less likely to split along the radial direction when under too much torque than plain designs. This means that they are more reliable in field setups where controlling the torque precisely may be hard.

How to Select the Right Male-Female 90° Elbow for Your Project?

When making decisions about what to buy, you have to weigh technical needs against price limits, delivery dates, and long-term performance standards. During the choosing process, a number of linked factors are looked at to see how well they fit.

Material Compatibility Considerations

Material choice is based on fluid chemistry. Black iron that can be shaped does a great job in water systems with a normal pH, dry compressed air lines, and natural gas distribution networks. Because the material works well with oil-based products, it can be used in devices that give fuel oil. Limitations show up in highly acidic or alkaline situations where fast rust damages the structure of the fitting. For these uses, you need higher-quality materials, like 316 stainless steel, or special finishes.

Tolerance for temperature is another important factor. From -20°F to 650°F, black malleable iron keeps its structural qualities, so it can be used in most HVAC, plumbing, and light industrial process uses. Extreme temperature changes outside of this range require different materials that are more thermally stable.

Thread Standard Selection: NPT vs. BSPT

The right thread standards are mostly determined by the geographic market and the system that is already in place. Most setups in North America use male-female 90° bend fittings that are suitable with NPT and BSPT. The 60-degree thread angle and 1:16 taper ratio are almost universally used. On the other hand, BSPT threads are used most commonly in Europe, the Asia-Pacific region, and Commonwealth countries. This is because of how standards have been set in the past.

When you mix thread standards in the same system, disasters are sure to happen. Dimensional differences between NPT and BSPT threads make it impossible to seal properly, so leaks continue no matter what sealer is used. To keep things consistent, procurement teams must check thread specs across all system parts.

Evaluating Supplier Credentials

Choosing a black round face male-female 90° elbow pipe fittings supplier has a huge effect on how well a job turns out. Companies that are certified and use ISO 9001 quality management systems show that they are dedicated to regular production standards and being able to track their products. Additional approvals, such as UL (Underwriters Laboratories) and FM (Factory Mutual) approval, show that goods meet the strict safety standards needed by insurance companies and building rules.

When project deadlines are short, production ability is important. Companies that keep a lot of supplies and can make things in a variety of ways can handle both urgent orders and sudden increases in demand. Companies like Zhiyuan Malleable Steel, which can make up to 30,000 tons of steel every year in more than 1,000 different product specs, are big enough and quick enough to meet the needs of big building projects.

For non-standard uses, customization options should be taken into account. When you use OEM/ODM services, you can ask for custom sizes, coatings, or thread setups that make fitting easier in certain situations. This freedom is very helpful when updating old systems or meeting the code standards of a certain area.

Conclusion

To choose the right black round face male-female 90° elbow pipe fittings, you need to know a lot about their technical specs, how they should be used, and how to buy them. In the plumbing, HVAC, process, and fire protection industries, these industrial-grade round-edge threaded elbows are very important. Their steady performance and space-saving design make them easy to use. The choice of black ductile iron, galvanized steel, or stainless steel relies on the climate, the type of fluid it will be used with, and the budget. Consistency in thread standard, whether NPT or BSPT, makes sure that all links in the system don't leak. Partnering with qualified makers who have strong quality systems, the ability to make changes, and flexible delivery dates is the best way to get the best results on a project while keeping costs low.

FAQs

Can I mix NPT and BSPT threaded fittings in the same system?

Mixing thread standards makes links that don't work with each other and won't close properly no matter what sealant is used. The 60-degree thread angle on NPT and the 55-degree shape on BSPT are not compatible because their sizes are different. To make sure your pipe system works reliably and without leaks, you should always keep the thread standard the same throughout it.

What pressure rating should I specify for fire sprinkler applications?

Most fire safety systems need Class 150 lines that can handle 300 PSI WOG service. Check the NFPA 13 guidelines and your area code, as some places require higher safety factors. Check that all the parts of the system meet or go beyond the pressure numbers that were given, taking into account any possible surge pressures that might happen when the system is turned on.

How do I prevent corrosion in outdoor installations?

For outside uses that will be exposed to weather, galvanized parts are better at resisting rust than black malleable iron. For extra safety, use paint systems that are suitable as an undercoat and topcoat, make sure there is good drainage so water doesn't build up, and use cathodic protection where different metals touch. Regular checks find rust early, so it can be fixed before it causes damage to the structure.

Partner With Zhiyuan Malleable Steel for Reliable Black Round Face Male-Female 90° Elbow Pipe Fittings

Zhiyuan Malleable Steel makes high-quality industrial water and gas pipeline elbows that are designed to exact specs for use in tough situations all over the world. We have been making black round face male-female 90° elbow pipe fittings for 26 years and have ISO 9001, CE, UL, and FM certifications to make sure that every fitting meets international quality standards. Our 30,000-ton annual production capacity across more than 1,000 specs helps with projects like petrochemical installations and local fire protection systems. Standard goods can be shipped within two hours from our Shanxi plant. We offer full OEM/ODM customization services that are suited to your specific needs, along with replacement guarantees for goods that aren't working right. Our engineering team is ready to talk about your unique application needs at q1236800000@gmail.com. They can also suggest the best solutions and provide responsive technical help throughout the lifecycle of your project. Visit zymalleablepipefitting.com for more information on how to buy our products and learn why our dedication to quality and customer satisfaction has won us trust on seven countries.
