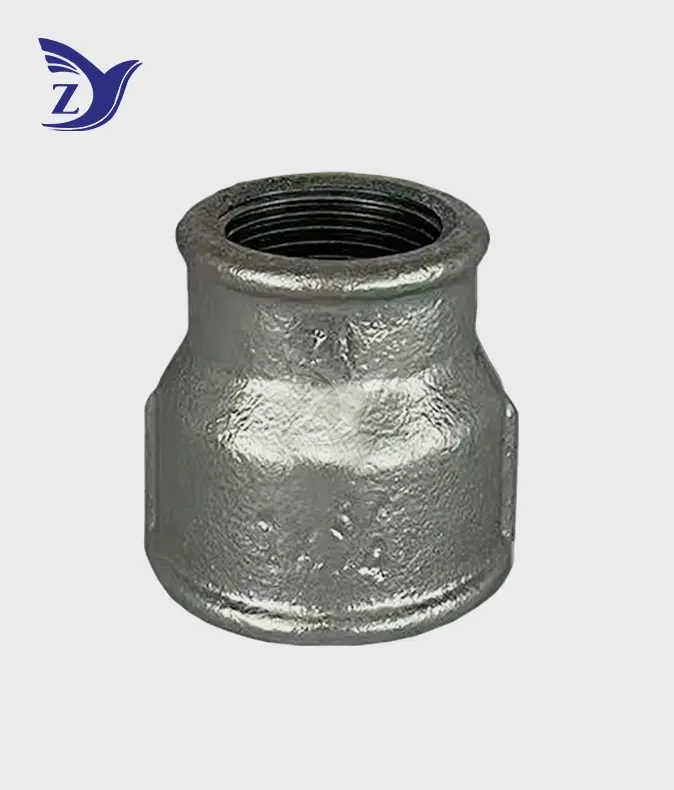

Round Face Galvanized Reducing Coupling Fittings for Smooth Pipe Connections

When we discuss pipe system reliability, round face galvanized round edge reducing coupling pipe fittings represent a cornerstone solution for industries requiring seamless diameter transitions. These precision-engineered components enable secure connections between pipes of varying sizes, delivering corrosion resistance and structural integrity across fire protection, municipal water systems, HVAC installations, and industrial process lines. The round edge design—distinguished by its smooth, beaded perimeter—distributes tightening forces evenly during installation, preventing edge cracking and ensuring decades of leak-free performance in demanding environments.

Technical Specifications and Standards for Round Face Galvanized Couplings

Material Composition and Galvanization Process

High-strength anti-rust round face galvanized round edge reducing coupling pipe fittings start out as white heart malleable iron that meets the requirements of ASTM A47 Grade 32510 or ISO 5922. To get the best mix of strength and malleability, the carbon levels (2.2–2.9%) and silicon content (0.9–1.9%) in the base material are carefully managed. When iron is annealed, it goes through stages of heating that change brittle carbon groups into nodular graphite. This makes a matrix that bends instead of breaking when it is stressed.

The zinc purity in the galvanization bath stays above 98.5%, and the immersion times are set so that coating weights of 500 to 600 grams per square meter are reached. This hot-dip method makes several layers of a zinc-iron alloy below the pure zinc surface. These layers act as a sacrifice for protection and can heal small cuts on their own through electrochemical action. Conformity of the coating to ASTM A153 standards is checked by third-party testing that includes bend tests and impact resistance checks.

Thread Specifications and Pressure Ratings

Class 150 pressure ratings mean that water and gas pipeline diameter transition fittings can handle 300 PSI of pressure at room temperature for water, oil, and gas applications and 150 PSI of pressure for saturated steam service. The NPT thread geometry has a flank angle of 60 degrees and a 1:16 taper, which makes an interference fit that gets tighter as it is installed. Different types of BSPT use a 55-degree angle and the same taper ratio, so sealer is needed to cover up any small flaws and make sure the system works without leaks.

Thread engagement standards say that for sizes between 1/4" and 2", the thread must be engaged at least 4-6 times. For bigger diameters, the engagement depth needs to be relatively greater. Go/No-Go thread gauges check the accuracy of the dimensions during production, making sure that the product will work with pipe threads cut to ASME B1.20.1 standards.

Size Ranges and Compatibility

Standard reducing connections come in sizes ranging from 1/4" x 1/8" to 4" x 3", which covers the most frequent diameter changes in industrial and commercial pipes. Custom configurations can be made to fit specific needs, and our production capacity can handle non-standard sizes with flexible casting methods. The round face design keeps the wall thickness the same across all size groups. This keeps the system from having weak spots that could make it less reliable.

Compatibility is more than just matching the same size. It also includes how the materials interact with each other. When the right level of dielectric separation is kept, galvanized malleable iron works well with galvanized steel pipe, metal fittings, and some types of plastic pipe. Chemical compatibility charts help choose the right materials for working with oil, natural gas, propane, and other industrial fluids. This makes sure that the seal materials and thread compounds stay stable during use.

Installation and Measurement Guide for Round Face Galvanized Reducing Couplings

Pre-Installation Sizing and Preparation

Accurately measuring the width stops the mistakes that happen during rushed installs that cost a lot of money. Before buying round face galvanized round edge reducing coupling pipe fittings, use calibrated pipe tools to check the outside diameter and thread pitch of the pipes that are already in place. Remember that pipe numbers given on labels don't always match up with their real sizes. For example, an NPT pipe labeled "1-inch" measures about 1.315 inches on the outside. To make sure you have the right reducer mix, compare your measurements to common size charts.

To prepare pipes, the ends need to be cut cleanly and squarely with rotary cutters or reciprocating saws with fine-tooth blades. Use deburring tools or fine files to get rid of burrs because exposed metal pieces can damage sealant materials and make it hard for the threads to connect. Check the threads on the pipes for damage, stripping, or too much wear. Threads that aren't strong enough can't make the interference fit that is needed for pressure-tight connections.

Step-by-Step Installation Process

First, prepare the threads by wrapping them in PTFE tape or anaerobic pipe sealant clockwise when looking at the pipe end-on. For NPT connections, use three to four wraps of tape, starting two threads from the pipe end to keep the tape out of the flow line. Because of their parallel crest design, BSPT threads need more sealant. Use a lot of pipe dope to fill in all of the thread valleys.

Tighten the industrial pipe connection by hand onto the prepared male thread until the resistance rises to a level that can be felt. This usually takes 3–4 full turns. Use a pipe wrench on the flat parts of the coupling (never the rounded bead) and tighten it another 1.5 to 2 turns until it feels solid. Do not over-tighten, as this can damage the casting or strip the threads. The right torque should leave two to three threads visible beyond the coupling face. Before putting pressure on the system, let anaerobic sealants dry for the amount of time that the maker suggests.

Maintenance and Corrosion Prevention

As part of regular inspections, galvanizing fittings should be looked at visually for white rust, which is a powdery zinc oxide layer that means the coating is wearing away. Zinc coatings usually don't need to be fixed when surface rust turns red iron oxide, which means the substrate is exposed and needs to be fixed. Use wire brushes to clean the fittings, and then use zinc-rich cold galvanizing compound to fix any damage. This will restore the protective coating.

When the earth is very corrosive, dielectric wrapping or cathodic protection systems can help protect underground devices from rusting even more. Above-ground parts that are near the coast or in factories should be cleaned once a year to get rid of salt deposits and chemical leftovers that speed up zinc oxidation. Maintenance logs that are written down set performance standards for lifetime cost analysis and help with deciding when to replace things.

Procurement Insights for Round Face Galvanized Reducing Couplings

Certification and Quality Assurance

Specifications for business-to-business purchases should require companies to follow ISO 9001 quality management systems. This will make sure that manufacturing processes are consistent and that paperwork can be tracked. Certifications like UL listing for fire safety uses, FM approval for insurance needs, and CE marking for foreign projects show that performance claims have been checked by a third party. For applications that care a lot about quality, ask for mill test reports that show what the material is made of, the results of pressure tests, and how thick the coating is.

Our factory has four levels of quality control. These levels include using dual-end plug gauges to check the coaxiality of the threads, 85 PSI pneumatic pressure testing to find casting porosity, copper sulfate dip testing according to ASTM A239 to make sure the galvanization is solid, and flattening tests to show that the iron is malleable and flexible. This strict process keeps defect rates below 0.3%, which cuts down on failures in the field and guarantee claims.

Order Quantities and Customization Options

Standard stocking systems allow for minimum order amounts of 500 pieces per size combination for popular setups. At 1,000, 5,000, and 10,000 pieces, savings are applied to the price. Custom reducing combinations, non-standard thread types, or unique finishes need technical review and tooling costs, which are usually only possible for sales of more than 2,000 pieces. Our 30,000-ton annual production capacity meets the needs of large-scale projects, and basic items in stock at our Shanxi manufacturing base can be delivered within two hours.

Distributors can build brand equity with OEM and private labeling services that let them customize packaging, laser-etch markings, and custom documentation packages. Technical support teams work together to create specifications that help match round face galvanized round edge reducing coupling pipe fittings traits to application needs and make sure that all North American states follow the rules set by regional codes.

Pricing Factors and Supply Chain Logistics

The prices of materials change with the world markets for zinc and scrap iron, and they usually make up 45 to 55 percent of the price of a final product. The rest of the manufacturing costs are made up of labor rates, the cost of energy for galvanization, and the upkeep of quality systems. With volume agreements, prices can be locked in for 6 to 12 months, which protects project budgets from changes in the prices of commodities. Optimizing the load in a container lowers the cost of shipping each unit. Depending on the configuration, a full 20-foot container can hold between 18 and 22 tons of different-sized fittings.

Standard goods have lead times that run from 2 to 4 weeks for factories in the United States to 8 to 12 weeks for factories in other countries. For trans-Pacific shipments, ocean freight adds an extra 3 to 5 weeks. Setting up blanket purchase orders with scheduled releases makes it possible to keep up with project deadlines and keep warehouse carrying costs to a minimum. For established accounts, payment terms are usually net-30 or net-60, and letter of credit choices are available for foreign transactions.

Conclusion

Modern pipeline systems need fittings that are reliable, last a long time, and are easy to install. Round face galvanized round edge reducing coupling pipe fittings meet these needs. The mechanical qualities of malleable iron and the corrosion protection of hot-dipped galvanization work together to make parts that can last for 40 to 50 years in tough situations. Technical specs that are in line with ASTM and ISO standards make sure that everything works together and is compatible, and prices that are competitive keep the project's economics in check. These diameter transition fittings are tried-and-true options backed by decades of field performance data. They can be used for city water infrastructure, business fire protection systems, or industrial process piping.

Partnering with a Trusted Round Face Galvanized Round Edge Reducing Coupling Pipe Fittings Manufacturer

Zhiyuan Malleable Steel has been casting for 18 years and can make up to 30,000 tons of steel each year. They can help fire protection contractors, municipal utilities, and industrial procurement teams. Our ISO 9001-certified manufacturing methods and thorough quality testing routines give big projects the consistency they need. We can help with both emergency repairs and planned construction schedules because we keep over 1,000 product specifications in stock and can ship standard items within two hours. Our OEM and ODM customization services can be tailored to meet the specific needs of each project, and our CE, UL, and FM certifications make it easier to make sure that we're following the rules. Email our technical team at q1236800000@gmail.com to talk about your specific application needs, get product samples, or get bulk pricing for projects you have coming up. You can look through our full catalog of round face galvanized round edge reducing coupling pipe fittings, grooved systems, and custom casting solutions at zymalleablepipefitting.com. These are all made to meet the needs of modern infrastructure.

FAQ

What distinguishes round face from square edge reducing couplings?

The round face design has a smooth, beaded reinforcement ring that goes around each threaded opening. This spreads the installation torque out evenly and keeps the edge from chipping when the wrench is tightened. Some standards call for a rectangular profile on square edge versions so that they look the same, but both forms offer similar structural performance. The round edge shape is better for setups that are out in the open and need to look good, as well as for uses that require a lot of assembly and disassembly.

Can NPT and BSPT threads be mixed in emergency repairs?

Not at all. BSPT threads have a flank angle of 55 degrees, while NPT threads have a flank angle of 60 degrees. When these two types of threads are pushed together, they damage each other and cause spiral leaking patterns. In an emergency, you need adapters that are designed to go from one thread standard to another. Cross-threading these connections is not allowed because it weakens the system and breaks pressure vessel codes in controlled situations.

How long does galvanization protect against corrosion?

Hot-dipped galvanized coatings usually protect against corrosion for 40 to 50 years in normal weather and buried installations with neutral soil pH. However, corrosion speeds up in coastal areas with salt spray exposure (shortening the lifespan to 25 to 35 years) or acidic industrial environments (15 to 25 years). The protective zinc layer keeps working until it runs out completely. After that, the iron underneath can be oxidized.

References

1. American Society for Testing and Materials. (2019). ASTM A47/A47M Standard Specification for Ferritic Malleable Iron Castings. West Conshohocken: ASTM International.
2. International Organization for Standardization. (2021). ISO 5922: Malleable Cast Iron. Geneva: ISO Standards Catalogue.
3. American Society of Mechanical Engineers. (2020). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Press.
4. American Society for Testing and Materials. (2017). ASTM A153/A153M Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM International.
5. Porter, Frank C. (2016). Corrosion Resistance of Zinc and Zinc Alloys. Boca Raton: CRC Press.
6. British Standards Institution. (2018). EN 10242: Threaded Pipe Fittings in Malleable Cast Iron. London: BSI Standards Publication.
