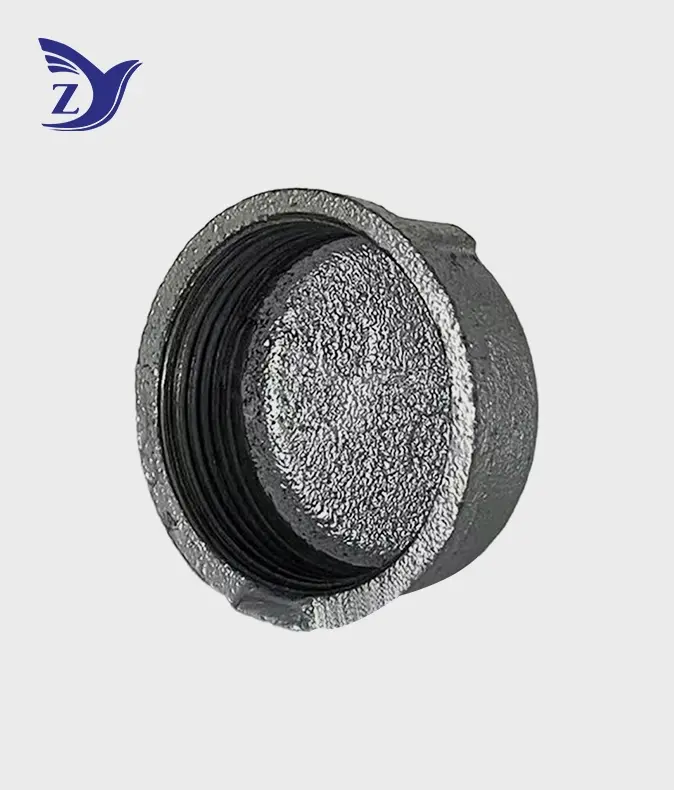

How Do Galvanized Pipe Cap Fittings Improve Piping System Safety?

Galvanized pipe cap pipe fittings enhance piping system safety by delivering exceptional corrosion resistance through hot-dip zinc coating, creating reliable threaded seals that prevent leaks and contamination at pipe terminations. These industrial-grade components, manufactured from high-strength malleable iron with precision NPT or BSPT threads, secure vulnerable pipe ends against environmental exposure while maintaining system pressure integrity. Their proven anti-rust properties dramatically reduce maintenance frequency and failure risks across water, gas, and industrial applications where operational continuity directly impacts workplace safety and regulatory compliance.

Understanding Galvanized Pipe Cap Fittings and Their Role in Safety

What Makes Galvanized Pipe Caps Essential Safety Components

The most exposed parts of fire protection systems or public water systems that I see are always the pipe terminations that aren't secured. Galvanized pipe cap pipe fittings use specialized engineering to address this significant flaw. These fittings close the ends of pipes using tapered threads that meet ANSI/ASME B1.20.1 standards for NPT connections or ISO 7-1 standards for BSPT threads. This makes sure that metal-to-metal contact that can withstand hydraulic pressures above 25 bar in tough conditions.

The method of hot-dip galvanizing determines how well they protect. When they are being made, ASTM A197-compliant malleable iron castings are put into molten zinc baths that are about 450°C. This metallurgical bonding makes a protective layer that corrodes faster than the base metal. This makes the treated metal last decades longer than unprocessed options. The zinc layer, which is usually thick enough to meet ASTM A153 standards, protects in two ways: it keeps water out and stops rust from forming, even when scratches on the surface reveal iron below.

Manufacturing Standards That Ensure Reliable Performance

At Zhiyuan Malleable Steel's factories in Shanxi Province, where we make 30,000 tons of steel a year, we follow strict quality standards. Our eight medium-frequency electric kilns make consistent metallurgical structures out of pliable iron, and our precision threading equipment makes sure that the sizes are accurate to within 0.05 mm. Before being galvanized in our environmentally controlled furnaces, each batch is tested for airtightness using pneumatics at 0.6 MPa to make sure the seals are strong.

Using NPT ring and plug tools to check the threads makes sure they meet the requirements for taper angles and pitch. This attention to detail during production directly affects safety in the field—threads that aren't made correctly create leak paths that weaken the system, especially in gas distribution where even small seepage can cause an explosion.

How Galvanized Pipe Caps Prevent Common Safety Issues in Piping Systems?

Corrosion Resistance That Extends System Lifespan

In all industrial sectors, corrosion is still the main reason why pipes break. Pipe ends that aren't protected speed up the aging process in a number of ways, including crevice corrosion where water builds up, galvanic reactions when metals that aren't compatible touch during temporary closures, and atmospheric oxidation that weakens pipe walls over time. The zinc layer on galvanized pipe cap pipe fittings stops these reactions because zinc oxidizes 100 times slower than iron that is exposed to air in normal humidity conditions.

Comparative testing shows big differences in how well things work. When left outside in coastal regions for 72 hours, black steel caps start to rust, but zinc caps stay in good shape for 18 to 24 months in the same conditions. Stainless steel options last longer, but they cost 300–400% more than galvanized options, making them an unaffordable choice for big city projects that need thousands of termination points.

The safety feature keeps working all the time. When the zinc covering gets scratched or worn down while being handled, electrochemical reactions create zinc hydroxide molecules that cover the damage and stop rust from spreading. This ability to heal itself is very useful in building settings where parts are handled roughly before they are finally put in place.

Preventing Contamination and Pressure Integrity Failures

During construction or system maintenance, open pipe ends let in many ways for contamination to spread. Infiltration of dirt, waste, and water lowers the purity of the fluid in systems that supply drinkable water and adds particles that harm valves and meters further downstream. By completely closing off the pipeline, threaded seals get rid of these entry points, keeping the sterile conditions needed to meet EPA standards for drinking water.

Managing pressure is another important aspect of safety. Incomplete terminations leave weak spots where hydraulic shock waves, which happen a lot when a pump starts up or a valve opens and closes, concentrate stress forces. The strong design of industrial water and gas pipeline closures spreads these loads across the threaded engagement area, which stops the catastrophic ruptures I've seen happen in systems that used makeshift closure methods.

As an example, our NPT/BSPT galvanized malleable iron pipe cap is used in the heating system of a city in Michigan. The building used to have freeze-thaw problems every year at brief closure points, which meant that 3,000 people couldn't get service. After switching to properly specified galvanized caps with certified thread engagement, maintenance records show that there were no termination failures during three winter cycles. This shows that choosing the right product directly improves safety outcomes.

Choosing the Right Galvanized Pipe Cap: Factors for Safety and Performance

Comparing Cap Types and Material Specifications

When making a procurement choice, you have to compare different cap designs to the needs of the application. Standard end caps are a cheap way to close fitting bodies permanently in low-vibration areas. Hex-head designs with built-in collars make high-torque installation easier in tight spaces without damaging the fitting bodies. The flanged versions, which have bigger bearing surfaces, are very useful in situations where the temperature changes quickly and causes threaded connections to be rotated.

Choosing the right materials means balancing cost with performance needs. When caps are used to protect open pipes in high-traffic areas or industrial zones where forklifts are used, the ability of malleable iron castings to withstand pressure is very important. This flexibility keeps it from breaking easily when hit by something hard, unlike cast iron materials that break when hit. High-strength, anti-rust, and malleable iron construction combined with precision-threaded engagement makes galvanized pipe cap pipe fittings a reliable system that plant engineers count on for setups that need to be safe.

To make sure threads work together, you need to be very specific. In North America, NPT threads with a 60-degree side angle and a 1:16 taper are the most common type. They meet ASME B1.20.1 standards for dimensions. According to ISO 7-1 standards, BSPT threads use 55-degree Whitworth profiles, which are common in installations in Europe and the Commonwealth. Cross-threading between these standards that don't work together leads to false engagement that looks safe during installation but fails under operational pressure. This mistake can be avoided by using standardized size charts to match specifications correctly.

Sizing Specifications and Bulk Procurement Considerations

Correct size guarantees the best closing performance and the safety of the system. The length of the thread engagement directly affects the integrity of the seal; not enough engagement reduces the contact area, which makes leak paths when the temperature rises. For uses below 10 bar, our technical standards say that at least five full threads must be engaged. For higher-pressure services, that number should rise to seven threads. Magnetic thickness scales make sure that the level of galvanization meets the safety requirements, and the average layer weights more than 610 g/m² according to ASTM A153 Class B standards.

Strategies for buying in bulk have a big effect on the costs and schedules of a project. We keep a large stock of standard sizes ranging from ½-inch to 6 inches in diameter, so we can send common specifications within two hours of receiving confirmation of an order. This keeps expensive building delays from happening when unexpected needs come up. For non-standard configurations like thread lengths that aren't the norm or specialty galvanization thicknesses for areas with a lot of corrosion, our ODM/OEM services have wait times of 15 to 20 days to meet the specific technical needs of each project.

Conclusion

Through rust resistance, contamination prevention, and pressure integrity maintenance in a variety of industrial uses, galvanized pipe cap pipe fittings provide quantifiable safety gains. When making a choice, it's important to pay attention to the thread specifications, material properties, and certification requirements. The best protection comes from installing and maintaining things the right way. Buying from certified manufacturers makes sure that the products are reliable and follow the rules, which is very important in safety-critical settings where piping system failures can have big operational and legal effects.

FAQs

What pressure ratings do galvanized pipe caps withstand safely?

Standard galvanized pipe cap pipe fittings made to ASTM A197 standards can reliably handle working pressures of up to 25 bar (362 psi) in gas and water services if they are installed correctly and the threads are properly engaged. For uses with higher pressure, you need fittings that are designed for that pressure and have thicker walls. These fittings may also need to be evaluated by an engineer to make sure they are right for the working conditions, such as changing temperatures and fluid composition.

How do NPT and BSPT thread standards differ in sealing performance?

According to ASME B1.20.1, NPT threads have flank angles of 60 degrees and a 1:16 taper, while ISO 7-1 says that BSPT threads have Whitworth profiles of 55 degrees. Both work well as shields because they wedge metal against metal, but they are different sizes and can't be paired together. Trying to do so results in a loose fit that leaks when pressure is applied. Before buying, you should always make sure that the thread specification fits the current pipe systems.

What galvanization thickness provides adequate corrosion protection?

ASTM A153 Class B says that pipe fittings must have average coating weights of at least 610 g/m², which is about 85 microns thick. This standard guarantees protection for 15 to 20 years in normal weather conditions. It lasts longer in controlled indoor environments but less long in harsh industrial or sea environments that need more frequent inspections and maybe extra protection.

Partner with Zhiyuan Malleable Steel for Industrial-Grade Pipe Closure Solutions

Our integrated production skills and quality-focused culture give procurement managers who are looking for trusted galvanized pipe cap pipe fittings provider agreements clear benefits. Our 30,000-ton annual production capacity lets us meet large-volume needs while still giving custom engineering projects the specification flexibility they need. With ISO 9001, CE, UL, and FM certifications behind every shipment, you can be sure that it will meet all foreign standards.

We know that project deadlines can be stressful. That's why we keep a standard inventory of products that can be shipped the same day for urgent needs. We also offer ODM/OEM customization services for unique uses that need non-standard sizes or better corrosion protection. Our engineering team helps with installation and fixing problems throughout the lifetime of your project, so technical support doesn't end when the order is confirmed. You can email our buying experts at q1236800000@gmail.com to talk about your specific needs, ask for technical specs, or set up tours of our Shanxi production campus facilities. Visit zymalleablepipefitting.com to see all of our products and get full specification sheets that will help you make smart purchasing choices.

References

1. American Society of Mechanical Engineers. (2020). ASME B1.20.1: Pipe Threads, General Purpose (Inch). New York: ASME Standards Publications.
2. ASTM International. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. West Conshohocken: ASTM Technical Standards.
3. ASTM International. (2021). ASTM A153: Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware. West Conshohocken: ASTM Technical Standards.
4. International Organization for Standardization. (2018). ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads — Part 1: Dimensions, Tolerances and Designation. Geneva: ISO Publications.
5. National Fire Protection Association. (2022). NFPA 13: Standard for the Installation of Sprinkler Systems. Quincy: NFPA Standards Council.
6. Revie, R.W., & Uhlig, H.H. (2008). Corrosion and Corrosion Control: An Introduction to Corrosion Science and Engineering (4th ed.). Hoboken: John Wiley & Sons.
