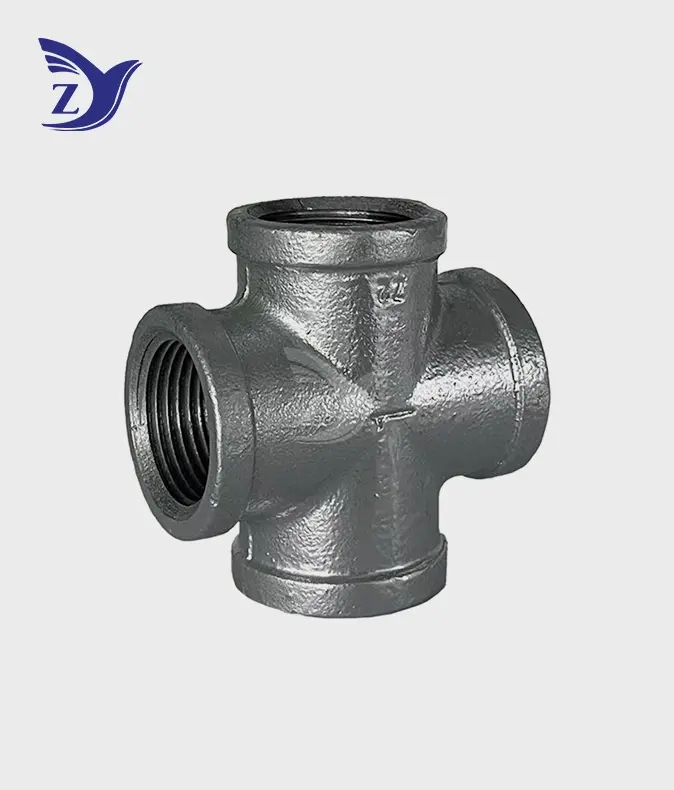

High Precision NPT BSPT Square Edge Malleable Iron Cross Pipe Branching Fittings

When industrial projects need solid four-way pipe branching solutions, high precision NPT BSPT square edge malleable iron cross pipe fittings are the best way to get the pipes where they need to go. These 4-way threaded links work well in fire safety, local water supply, HVAC setups, and petrochemical plants because they don't rust. NPT square face galvanized square edge cross pipe fittings are made from high-strength, pliable iron and are protected by hot-dipped galvanization. They have precise threading and are strong enough for industrial use. If you're buying these corrosion-proof pipe connections for big building projects or to keep city infrastructure in good shape, you should know their technical specs and practical benefits. That way, you can make sure your systems work safely in tough situations.

Understanding NPT BSPT Square Edge Malleable Iron Cross Pipe Fittings

Understanding the unique features of precision-threaded cross fittings is the first step to building a reliable network of pipes. These parts are important junctions where four different pipe runs meet, allowing flow to be distributed in more than one way in small spaces.

Thread Standards and Compatibility

The two main threading methods for industrial pipe connections around the world are NPT (National Pipe Taper) and BSPT (British Standard Pipe Taper). NPT threads are made according to ANSI/ASME B1.20.1 standards. They have a 60-degree thread angle and a 1°47' taper, which causes mechanical interference for leak-free bonds in many situations without the need for extra sealants. The curved shape lets the threads get tighter gradually as the assembly goes on, creating tension that stops fluid from escaping. Because they meet ISO 7-1 standards and have similar taper angles, BSPT threads are common in markets in Europe and the Commonwealth. Our cross fittings work with both standards, which gives you more options when buying for foreign projects and setups that use a mix of standards. Because of this dual compatibility, there is no need to keep different product streams, which makes warehouses easier for wholesalers who serve a wide range of customers.

Square Edge Profile Engineering

Premium NPT square face galvanized square edge cross pipe fittings are different from standard designs because they have a square edge strengthened bead around each outlet. This geometric trait has several engineering uses that have a direct effect on how long the system lasts and how easy it is to build. The squared shape makes it easier for the fitting body and connecting lines to touch each other, which spreads out torque loads more widely during assembly. This stops stress collection spots that cause tiny cracks in the structure of the casting. The raised bead acts as a physical stop that tells workers the right amount of thread engagement. This keeps them from under-tightening, which leads to leaks, or over-tightening, which damages the threads or breaks the fitting. During high-pressure bursts, the square edge support doesn't deform as easily as rounded profiles do. This keeps the dimensions stable, which is important for keeping the seal's integrity throughout the system's lifetime.

Malleable Iron Metallurgy

The choice of material has a big impact on how well a fitting works in high and low temperatures and under mechanical stress. A special heat treatment called annealing is used on malleable iron that meets the requirements of ASTM A197. This turns the brittle white cast iron structure into a flexible core. This changes the metal's tensile strength to about 40,000 psi with 10% elongation. This gives the metal the flexibility it needs to handle heat expansion cycles without breaking. When compared to gray iron options, malleable iron is less likely to break during shipping and installation, which lowers the costs of the job. The material can handle working pressures of up to 300 psi at room temperature and stays structurally sound at temperatures as high as 350°F. This means that these fittings can be used in systems that return steam heat and distribute hot water.

Comparison of NPT Square Edge Cross Pipe Fittings and Other Types

To choose the best NPT square face galvanized square edge cross pipe fittings type, you need to know how different designs work in different installation situations, with different levels of upkeep, and at different cost levels. The next section looks at some of the most important factors that make buying choices.

Structural Design Variations

Threaded cross fittings use tapered screw threads as both the connection mechanism and the sealing surface. This makes mechanical joins that can be put together and taken apart with regular pipe tools. This is different from socket weld fittings, which need skilled welders and make lasting joints that aren't good for systems that need to be accessed for repair every so often. Butt weld configurations need exact preparation of the pipe ends and special welding techniques, which greatly raises the cost of installation work. When installing threaded crosses, the square edge shape gives better wrench grip surfaces than beveled edge designs. This makes it less likely that the tool will slip and damage the galvanizing coating. The four-way branching design combines what would normally need several tee fittings and extra pipe segments. This cuts down on the number of joints and possible leak places in the system.

Material Performance Characteristics

For better balance between strength, resistance to rust, and cost-effectiveness, galvanized malleable iron is better than stainless steel and black steel options in all performance areas at the same time. Stainless steel fittings are more resistant to rust in settings that are very acidic or chloride-rich, but they cost more than 300% more than galvanized malleable iron. Black steel fittings are cheaper to buy at first, but they need protective coats or cathodic protection systems for outdoor installations. This makes them more complicated and costs more to maintain over time. Galvanized malleable iron can handle the mild rust that is common in fire sprinkler systems, public water distribution, and HVAC systems without the high cost of stainless steel. The material is flexible enough to handle installation stress and small system movements, while cast iron options might break under the same load conditions.

Why Choose High Precision NPT BSPT Square Edge Fittings from Zhiyuan Malleable Steel?

After learning about the technical side of cross pipe fittings, procurement workers know that choosing the right provider is what makes or breaks a project. Since 2006, Zhiyuan Malleable Steel has focused on casting studies and making pipe fittings, learning a lot about the physics of malleable iron and how to thread things precisely.

Manufacturing Excellence and Capacity

Our Taigu plant has eight SN KGDX-3500 3T medium frequency electric furnaces that provide accurate temperature control that is needed to make sure that the qualities of each casting batch of pliable iron are the same. Two HTL-1 type 100-ton natural gas energy-saving annealing kilns put parts through controlled heat treatment steps that make them more flexible while still meeting strength standards. The galvanizing workshop uses electric heating environmental protection heaters to keep the zinc bath chemistry within tight error ranges. This makes sure that the coating thickness is the same on all surfaces, even those with complex shapes like internal threads. We get the precise measurements needed for proper gauge compliance across NPT and BSPT standards with our 156 sets of cutting tools that are only used for threading operations. This industrial infrastructure supports a yearly production capacity of up to 30,000 tons of more than 1,000 different product specifications. It can handle both large standard orders and unique custom needs. Our integrated production approach, which includes casting and finishing, gets rid of the transportation delays and quality control holes that happen when processing steps are outsourced.

Quality Assurance and Certification

Zhiyuan Malleable Steel plans all of its production activities according to the quality management principles of ISO 9001. They keep written processes for every step of the manufacturing process, from checking the raw materials to doing the final inspection. Our goods have been certified by CE, UL, and FM to show that they meet safety and performance standards that are accepted in all foreign markets. Each fitting goes through hydraulic pressure testing to make sure it meets the pressure grade, and pneumatic testing to find any holes or casting flaws that can't be seen. Before galvanizing, threads are checked using accurate plug and ring gauges to make sure they are the right size. This keeps covering buildup from hiding threading problems. Using magnetic scales to measure the thickness of the coating makes sure that it meets the minimum standards set by ASTM A153. Adhesion testing makes sure that the metallurgical bonding is good. This multi-stage testing process keeps almost all faulty products from getting to customer facilities. This keeps project timelines from getting pushed back by installation delays and the cost of repairs.

Customer-Centric Service Model

We know that for long-term partnerships to work, technical help and quick contact are just as important as high-quality products. Our team has 38 professional technicians who can help you choose the right specifications, get advice on system design, and fix problems that come up during field installation. Standard product sales are shipped within two hours from our large collection, so projects don't get held up when they need to be replaced right away. In order to meet the needs of a specific application, custom OEM/ODM services can handle particular size requirements, threading setups, or coating requirements. Fittings are kept safe during shipping and storage in double-layer cardboard boxes. They arrive at job sites ready to be installed, with no damage to the coating or contamination of the threads. Our strategy for replacing broken goods gives you extra peace of mind and shows that we care about your satisfaction beyond the original transaction. This all-around service method turns ties with suppliers into real partnerships that help your business succeed over many projects and years of working together.

Conclusion

High precision NPT square face galvanized square edge cross pipe fittings are based on tried-and-true technology that provide reliable four-way branching options for a wide range of demanding industrial uses. When you combine precise threading, a stronger square edge design, long-lasting malleable iron construction, and protective galvanization, you get goods that meet strict performance standards while still being cost-effective. When installed correctly and maintained regularly, these fittings will last as long as they're supposed to, giving years of leak-free service in fire protection systems, city infrastructure, HVAC networks, and industrial process pipes. When you choose qualified providers with a wide range of quality certifications, quick technical support, and the ability to make changes to your order, procurement goes from being a transactional activity to building a strategic relationship that improves the overall project outcomes.

FAQs

What distinguishes NPT from BSPT thread profiles in practical applications?

In real life, what makes NPT thread profiles different from BSPT thread profiles? American ANSI/ASME B1.20.1 standards say that NPT threads must have certain taper angles and thread pitch measurements that are best for pipe sizes that are popular in North American markets. BSPT threads meet the requirements set by ISO 7-1, which is common in Asian, European, and Commonwealth countries. Both have curved shapes that cause interference fits, but small changes in size make them incompatible without thread adapters. Our cross fittings, which are made to fit both standards, make it possible to integrate systems with equipment from different countries. This takes away the need to worry about compatibility issues for projects or facilities that use parts from different countries.

How does galvanization extend fitting service life in outdoor installations?

How does galvanization make fittings last longer in outdoor settings? Hot-dipped galvanization makes a zinc covering that is metallurgically bound and protects against both barrier corrosion and sacrificial corrosion. The zinc layer stops air and wetness from getting to the iron surface below, and it also protects against cathodic damage through electrochemical action. Damage from mechanical forces can reveal the base metal, but the zinc around it protects the weak spot by corroding faster than the iron ground. This two-layer protection system makes the product last 20 to 30 years longer than options that aren't covered in normal environmental conditions.

Can these fittings accommodate high-temperature applications?

Are these parts suitable for use in high-temperature situations? Cross fittings made of malleable iron keep their structural integrity and can withstand pressures up to 300 psi at room temperature. For applications that need to work at higher temperatures, like steam heating systems, they can be lowered to 150 psi. The thermal expansion rate and flexibility of the material allow it to handle changes in temperature without getting stress cracks. Galvanized coatings stay steady in this temperature range, but if they are exposed to temperatures above 400°F for a long time, a zinc alloy layer may form, which will change the way they look but not their ability to protect against rust.

Partner with Zhiyuan Malleable Steel for Your Cross Fitting Requirements

For your cross-fitting needs, work with Zhiyuan Malleable Steel. Zhiyuan Malleable Steel has been casting for 26 years and has modern production facilities and customer-focused service to make sure they can meet all of your exact needs for high quality NPT square face galvanized square edge cross pipe fittings. We serve fire protection contractors, city engineering companies, plumbing distributors, and industrial site managers all over the world from our location in Shanxi Province, which is close to important transportation networks. Our ISO 9001-certified factory keeps a lot of stock on hand so that regular orders can be filled quickly. For unique uses, we also offer ODM/OEM customization. This includes UL-listed fittings for business fire sprinkler systems and FM-approved parts for industrial buildings. Our technical team can help you choose the best product for your needs based on your specifications. You can talk to our engineering experts about your project needs at q1236800000@gmail.com, get specific quotes, or set up tours of our facility at zymalleablepipefitting.com. As a reputable company that makes NPT square face galvanized square edge cross pipe fittings, we give your projects the quality, dependability, and service that they need.
