Galvanized Pipe Cap Fittings for Water Gas

Galvanized pipe cap pipe fittings represent essential components in water and gas piping systems, serving the critical function of securely sealing pipe ends to protect system integrity. These industrial-grade closures prevent leaks, contamination, and pressure loss in commercial and municipal infrastructure. Procurement managers, system integrators, and engineers understand that selecting reliable pipe caps directly impacts operational safety and maintenance costs. The hot-dip galvanization process provides a protective zinc layer that resists corrosion in harsh environments, making these fittings indispensable for fire protection networks, municipal water distribution, HVAC installations, and gas transmission lines. When system reliability matters, investing in certified, precision-manufactured galvanized caps becomes not just a technical requirement but a strategic decision that safeguards long-term performance.

Galvanized Pipe Cap Fittings Benefits

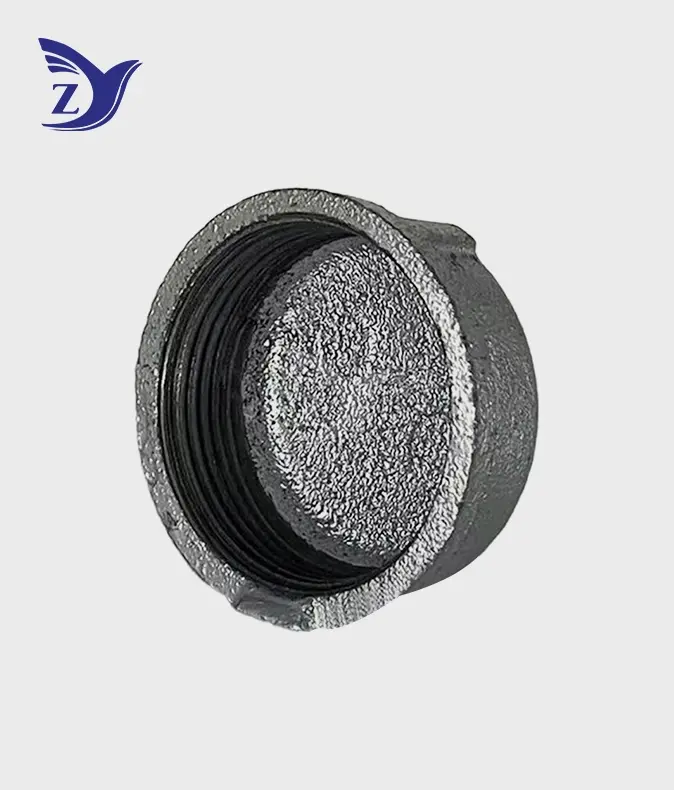

What Are Galvanized Pipe Caps?

Galvanized pipe cap pipe fittings are threaded plugs made from high-strength, pliable iron that meets ASTM A197 standards. They are then hot-dip galvanized to make a strong zinc barrier. These caps have either NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper) threads. The NPT threads are precisely angled at 60 degrees, and the BSPT threads are precisely angled at 55 degrees. This makes metal-to-metal seals that can handle pressures up to 25 bar in most situations. Finished castings are put into liquid zinc at about 840°F as part of the galvanization process. This forms a metallurgical bond that protects the casts. When the zinc coating comes into contact with water or corrosive substances, it oxidizes first, protecting the iron substrate below and keeping the structure strong for decades of use.

Core Benefits for Industrial Applications

There are more benefits to galvanized malleable iron caps than just not rusting. When compared to gray cast iron, malleable iron is much more flexible and can take impact without breaking. This is an important property in construction zones where accidents happen. The width of the galvanized covering is usually greater than 70 microns, which meets ASTM A153 standards and protects for 30 to 50 years in normal weather. A cost study shows that while the original investment may be 15-20% higher than black iron alternatives, the total cost of ownership drops by more than 40% over the twenty-year lifecycle because of no more upkeep and replacement costs. These fittings stay the same size even when the temperature changes from -20°F to 400°F. This means they can be used in both chilled water systems and low-pressure steam uses in factories.

Selection Guide: Choosing the Right Galvanized Pipe Caps for Your Needs

Thread Standards and Compatibility

To choose between NPT and BSPT configurations, you need to know about the local requirements and the infrastructure that is already in place. The ANSI/ASME B1.20.1 standards are used for NPT threads in North America. They have a 1:16 taper ratio that makes an interference-fit seal when they are tightened to the right torque values, which are usually 50 to 75 ft-lbs for 2-inch caps. Most installs in Europe and Asia use BSPT threads that meet ISO 7-1 standards. These threads have a Whitworth form that seals just as well but engages slightly differently. Before ordering in bulk, procurement teams in charge of international projects must test the threads to make sure they are compatible using gauges. Thread depth, pitch diameter, and taper angles all have a direct effect on the integrity of the seal. Even small changes can lower the pressure ratings. Reputable companies like Zhiyuan Malleable Steel use measured ring and plug gauges for tight thread inspections to make sure that every fitting fits within the limits of ±0.002 inches.

Sizing Considerations for Water and Gas Systems

Galvanized pipe cap pipe fittings come in nominal diameters ranging from 1/8 inch to 6 inches. The choice of cap size is based on the pipe plan, flow needs, and code compliance. For municipal water systems, Schedule 40 pipes and caps with a 150 PSI working pressure are common. For natural gas delivery networks, Schedule 80 fittings with a 300 PSI rating are common so they can handle pressure spikes. Engineers have to think about thermal expansion. For every 100°F rise in temperature, a 100-foot steel pipeline grows about 1.5 inches in length, which could cause stress to build up at the ends that are capped. For proper size, you need to figure out the thread contact length (at least five threads are needed for pressure-tight sealing) and make sure there is enough room for the wrench to fit during installation. NFPA 13 standards say that all test connections and future sprinkler drops must have caps. The sizes of these caps are determined by hydraulic calculations that balance the need for flow delivery against the loss of pressure.

Material Comparisons and Performance Trade-offs

Galvanized malleable iron is the most common material used in industry, but knowing about other materials can help you make better purchasing decisions. Stainless steel caps are better at resisting corrosion in sea settings or chemical processing plants because they can handle chloride levels higher than 500 ppm, which would damage zinc coatings. The price difference between these fittings and galvanized ones is 300–400%, which is only reasonable in very harsh conditions. Plastic caps made from PVC or CPVC can fight chemicals in some situations, but they can't withstand pressures above 150 PSI at room temperature, and UV light can damage them when installed outside. For indoor climate-controlled settings with low humidity, black iron caps that haven't been galvanized are still a good deal, but they need to be inspected and coated on a frequent basis. Galvanized fittings are the best of both worlds because they protect against corrosion 90% as well as stainless steel but cost only 25% as much. They also have pressure ratings and mechanical power that plastic options can't match.

Applications and Industry Use Cases of Galvanized Pipe Caps in Water and Gas Systems

Fire Protection Infrastructure

Fire sprinkler systems are important uses for galvanized pipe cap pipe fittings that make sure they work reliably in an emergency. Because these systems are always under pressure and full of water, leak-proof connections must be made at test points and future sprinkler locations. Cross-main drop caps must be able to withstand 175 PSI static pressure and keep their seals intact for decades of inactivity. The NFPT-compatible threaded design gives the metal-to-metal contact shape needed to pass two hours of 200 PSI hydrostatic acceptance testing without any pressure drop. Installation workers like the hex head design because it makes it easy to remove quickly when systems need to be expanded. This saves money on labor costs during renter improvement projects. One fire protection company in the area saw a 40% drop in callbacks after moving to approved galvanized caps from a company that provided detailed mill test records. This was because failures from poor castings were no longer happening.

Municipal Water and Gas Distribution

For future connecting points and seasonal main extensions, public companies that run water treatment plants, pumping stations, and distribution networks need closures that don't rust. During the construction phase, galvanized caps keep soil, debris, and animals from getting into threaded outlets on distribution manifolds and contaminating the water quality. The hot-dip zinc coating keeps the steel protected even when it is buried in acidic soils with pH levels between 5.5 and 8.5, which would quickly break down steel that isn't protected. Natural gas utilities use these fittings a lot at service stub-outs while waiting for customers to connect. The precision threading makes sure that the seal is gastight, which is required by Department of Transportation rules. A local water authority in the Midwest saw a 60% drop in repair excavations after putting galvanized malleable iron caps on all of their 500-mile distribution system. They said this was because the caps' threads were more durable and the coating lasted longer.

Conclusion

Galvanized pipe cap pipe fittings are important parts of industrial water and gas piping systems because they ensure their safety, effectiveness, and longevity. High-strength, malleable iron construction, precise NPT or BSPT threading, and protective hot-dip galvanization work together to make closures that can withstand harsh environmental conditions and keep their leak-proof performance for decades. Procurement experts can improve system reliability and lifetime costs by making the right choice based on thread standards, size needs, and material properties. Following established best practices for installation and regular maintenance protocols will get the most out of the fittings. This will protect important infrastructure investments and make sure they meet regulations in fire protection, municipal utilities, and industrial process applications.

FAQ

Are galvanized pipe caps safe for potable water systems?

NSF/ANSI 61 approval says that galvanized pipe cap pipe fittings that meet ASTM A197 and ASTM A153 standards can be used with drinkable water. The zinc coating stays stable in pH ranges of 6.5 to 8.5, which is typical of treated municipal water, with very little leaching below the levels required by the EPA. If the pH of the water is below 6.0 or above 9.0, zinc will dissolve more quickly.

How do I select the correct thread type for my application?

In North America, projects usually need NPT threads that meet ANSI/ASME B1.20.1 standards. In other countries, installations usually need BSPT threads that meet ISO 7-1 standards. Before placing an order, use a verified thread gauge to check the current pipe thread type. Cross-threading and leak routes are made when thread standards are mixed, which weakens the system and makes pressure ratings useless.

What maintenance interval is recommended for outdoor installations?

Outdoor galvanized caps that are kept in mild conditions should be visually checked every three months to make sure the coating isn't wearing off and the threads are still strong. Coastal areas with a lot of salt need to be checked every month, but climate-controlled installations inside need to be checked every six months. Write down what you find so that you can set site-specific intervals based on how fast corrosion is happening.

Partner with Zhiyuan Malleable Steel for Reliable Galvanized Pipe Cap Solutions

If you need to buy galvanized pipe cap pipe fittings, Zhiyuan Malleable Steel can help. They make industrial-grade galvanized pipe caps that meet strict international standards. Our annual production capacity of 30,000 tons and inventory depth of more than 1,000 specifications allow for quick fulfillment—standard items ship within two hours of order confirmation. Each fitting goes through strict quality control, which includes testing for air leaks, making sure the thread gauge works, and measuring the thickness of the galvanization. All of this is backed up by full mill test paperwork and CE, UL, and FM certifications. Our team has 26 years of experience casting, so we can make sure you get the best solutions for your water, gas, and fire protection systems, whether you need bulk orders for distribution, OEM customization for unique uses, or technical advice on product choice. You can talk to a reliable galvanized pipe cap pipe fittings supplier about your needs by emailing our specification team at q1236800000@gmail.com. They are dedicated to providing quality, safety, and value. You can look through our full catalog of products at zymalleablepipefitting.com and get detailed quotes that are made just for your project.

References

1. American Society for Testing and Materials. (2019). ASTM A197: Standard Specification for Cupola Malleable Iron. ASTM International.
2. American Society of Mechanical Engineers. (2018). ASME B1.20.1: Pipe Threads, General Purpose (Inch). ASME Standards Committee.
3. International Organization for Standardization. (2020). ISO 7-1: Pipe Threads Where Pressure-Tight Joints Are Made on the Threads – Part 1: Dimensions, Tolerances and Designation. ISO Technical Committee.
4. National Fire Protection Association. (2021). NFPA 13: Standard for the Installation of Sprinkler Systems. NFPA Standards Council.
5. U.S. Environmental Protection Agency. (2017). Drinking Water Infrastructure Materials: Copper and Zinc in Distribution Systems. EPA Office of Water.
6. Zinc Development Association. (2016). Hot Dip Galvanizing for Corrosion Protection of Steel Products. International Zinc Association Technical Report.
