Can a drain pipe have a 90 degree elbow?

One of the most dependable alternatives for this application is round face galvanized round edge 90° elbow pipe fittings, however 90-degree elbows may also be used with drain pipes as well. Drainage systems may be precisely redirected with the help of these specialist fittings, all while keeping the flow characteristics ideal and avoiding obstructions. In high-pressure drainage applications, where leak resistance and durability are of the utmost importance, the reinforced round-edge design offers better structural integrity than conventional square-edge alternatives.

90 Degree Elbow Pipe Fittings in Drainage Systems

Technical Definition and Design Features

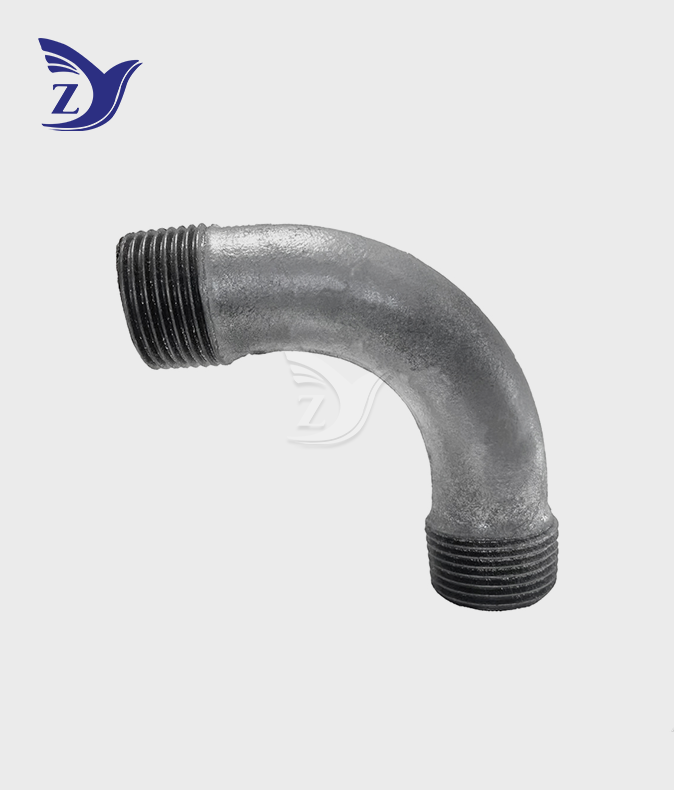

NPT and BSPT round face galvanized round edge 90° elbow pipe fittings are precision-engineered malleable iron components that alter fluid or gas flow direction by exactly 90 degrees in piping systems. The "round face" designation refers to the reinforced bead-like collar at the fitting's opening, which distinguishes these components from standard flat or banded designs. This structural enhancement provides exceptional resistance to installation stress and physical impact, addressing critical performance requirements in demanding drainage environments.

Galvanization uses a hot-dip zinc coating that goes above and above what is required by ASTM A153, creating a protective layer of 85 microns or more. This treatment minimizes thread galling during installation and efficiently prevents galvanic corrosion in humid situations. Instead of depending just on gaskets or sealants, the mechanical wedging of the tapered thread design generates pressure-tight seals.

Fluid Dynamics and Flow Performance

The effectiveness of the drainage system is greatly affected by the interior geometry of these 90-degree elbows. Critical components of gravity-fed drainage systems, turbulence and pressure drops, are reduced by the optimal bend radius and smooth interior surface. Simplifying laminar flow transitions, the round-edge design eliminates the need for sharp-angled fittings, which may lead to silt buildup.

The American Society of Mechanical Engineers found that 90-degree elbows, when built correctly, may accommodate the directional changes needed for complicated drainage plans while keeping flow velocities within acceptable levels. The connection integrity is guaranteed despite the typical temperature changes seen in drainage systems, thanks to the outstanding thermal expansion compatibility provided by the malleable iron structure.

Industry Applications and Compatibility

Commercial building drainage, municipal water management, and fire prevention systems are just a few of the many industrial sectors that make heavy use of these fittings. They are adaptable for both new and retrofit building projects due to their compatibility with a wide range of pipe materials, such as galvanized steel, black iron, and certain plastic systems.

Benefits and Advantages of Using Galvanized Round Edge 90° Elbow Pipe Fittings

Exceptional Corrosion Resistance

Zinc is metallurgically bonded during the hot-dip galvanization process, which forms a protective barrier and sacrificial layer against corrosion. Especially in extreme conditions where changes in temperature, chemicals, or moisture hasten material deterioration, this coating method greatly increases service life. According to independent testing, fittings that are galvanized correctly may last more than 50 years in most drainage applications.

Continued protection is guaranteed even in the event of slight surface damage because to the zinc coating's self-healing qualities. Whereas traditional protective coatings might be compromised by abrasive materials or high-velocity flows, this quality is particularly useful in drainage systems.

Enhanced Installation Reliability

Several installation benefits, including increased system dependability and reduced maintenance needs, are associated with the reinforced round-edge design. With the beaded collar, you may apply more tension during installation without worrying about damaging the threads or fittings. Cracking or splitting during installation, which may happen with regular square-edge fittings, is no longer an issue thanks to this design element.

Expert installation advice stresses the importance of thread engagement and sealant application for best results. Reduce your reliance on extra sealing compounds without sacrificing solid leak-proof connections thanks to the inherent sealing qualities provided by the tapered thread design.

Flow Optimization and Maintenance Benefits

Pressure losses and noise caused by turbulence are reduced in drainage systems because to the optimum bend shape and smooth interior surface finish. Where acoustic performance and flow economy are paramount, these features shine in both commercial and residential settings.

Thanks to its corrosion-resistant characteristics and sturdy structure, minimum maintenance is required. Under normal working settings, replacement periods might span decades, and regular maintenance methods usually include visually examining components for indications of mechanical damage or odd wear patterns.

Comparing 90° Elbow Pipe Fittings: Round Face vs Square Edge and Other Solutions

Design and Performance Differences

By increasing the bulk at the female aperture, round-face designs provide more structural stability than square-edge alternatives. Premature failure is less likely because to this reinforcement's increased resistance to radial expansion stresses during installation and operation. By facilitating less abrupt changes at interfaces, the improved shape enhances flow characteristics as a whole.

Although square-edge fittings are less expensive, round-face versions provide stronger structural support. In situations when there is a possibility of mechanical stress from outside sources, temperature cycling, or greater pressures, this difference becomes very important.

Material Comparisons and Cost Considerations

Stainless steel alternatives to galvanized malleable iron round face galvanized round edge 90° elbow pipe fittings show a number of differences. For projects that are mindful of price, galvanized fittings are a great option since they are inexpensive and have great corrosion resistance. The improved chemical resistance of stainless steel comes with a far higher cost, too.

In drainage applications, black steel choices are not corrosion-protected and need extra coating systems or replacement more often. Galvanized systems are usually favored in lifetime cost analyses because of their decreased maintenance needs and prolonged service durations.

Quality Certification and Standards Compliance

In order to maintain consistency in product performance and dependability, professional procurement must adhere to specified certification criteria. The dimensions and material criteria for malleable iron threaded fittings are established by ASME B16.3 conformance, while the material qualities and testing processes are governed by ASTM A197.

Measurements of coating thickness, dimensional correctness, and thread parameters should all be part of a comprehensive quality assurance program. Before installation, the structural integrity and leak-proof performance are validated by hydrostatic testing at prescribed pressures.

Procurement and Sourcing Strategies for Galvanized Round Face 90° Elbow Pipe Fittings

Supplier Evaluation Criteria

Assessing suppliers thoroughly, paying close attention to their production capacities, quality control systems, and certification compliance, is the first step in effective procurement. A long history of excellence in quality management and a dedication to constant improvement are hallmarks of ISO 9001-certified firms.

For large-scale projects that need huge quantities under limited timescales, production capacity issues become crucial. Suppliers who can produce more than 30,000 tons per year are usually able to handle large orders without sacrificing quality or meeting delivery deadlines.

Quality Assurance and Testing Protocols

Reliability and uniformity in performance across manufacturing batches are guaranteed by rigorous quality control techniques. Integral to the testing process is the confirmation of thread parameter conformity with NPT or BSPT standards via the use of calibrated ring and plug gauges. Preventing installation issues is ensured by dimensional accuracy inspections, which evaluate the precision of 90-degree angles within prescribed tolerances.

Ensuring uniformity and proper thickness of the galvanization layer is done using coating quality evaluation methods such as copper sulfate testing and magnetic thickness measurement. Validating pressure-containing capacities and identifying possible porosity concerns in the casting process may be achieved by hydrostatic or pneumatic testing.

Logistics and Supply Chain Optimization

One aspect of strategic sourcing is finding the right balance between meeting quality, cost-effectiveness, and local availability needs. Keeping a sufficient safety stock avoids project delays caused by unanticipated demand variations, and the transportation expenses associated with large-scale projects are often mitigated by the benefits of buying in bulk.

To effectively manage lead times, project timelines and supplier production cycles must be in sync. If you work with a reputable supplier that has an extensive inventory system, you should be able to get standard sizes quickly and meet your special requirements with dedicated manufacturing runs.

Conclusion

Round face galvanized round edge 90° elbow pipe fittings represent an optimal solution for drainage system directional changes, combining structural integrity, corrosion resistance, and flow efficiency in a cost-effective package. Purchasing high-quality galvanized fittings is a wise investment since they last longer, need less maintenance, and consistently operate well even when faced with extreme circumstances. Gaining a grasp of these advantages allows for well-informed procurement choices that enhance project success in the short term and system dependability in the long run.

Partner with Zhiyuan Malleable Steel for Superior Drainage Solutions

With over 26 years of specialized production expertise, Zhiyuan Malleable Steel stands as your trusted provider of round face galvanized round edge 90° elbow pipe fittings. Your drainage system projects may be rest assured that our state-of-the-art factory in Shanxi Province, which has an annual capacity of 30,000 tons, consistently produces over 1,000 product specifications.

Reliability and consistent performance are assured by our comprehensive quality management system, which is accredited to ISO 9001 standards and supported by UL, FM, and CE certifications. Through our direct manufacturer ties and comprehensive ODM/OEM customization services, we are able to provide affordable, individualized solutions to meet the needs of any project.

Experience our commitment to excellence with standard product delivery within two hours and comprehensive technical support throughout your project lifecycle. Contact our expert team at zhiyuan@mifittings.com to discuss your drainage system requirements and discover how our premium galvanized fittings can optimize your next installation.

FAQ

Can 90-degree elbows cause drainage blockages?

Properly designed and installed round face galvanized round edge 90° elbow pipe fittings do not typically cause blockages when sized appropriately for the application. The key factors include maintaining adequate flow velocities, ensuring proper slope continuation through the fitting, and selecting appropriate internal geometries that minimize turbulence and sediment accumulation points.

What maintenance is required for galvanized round-edge fittings in outdoor drainage?

Outdoor galvanized fittings require minimal maintenance due to their corrosion-resistant properties. Regular visual inspections should check for mechanical damage, excessive sediment buildup, or signs of coating deterioration. Cleaning with appropriate solvents can remove accumulated debris, while any damaged coatings should be repaired promptly to maintain corrosion protection.

How do I select the correct size and pressure rating?

Size selection depends on flow requirements, pipe diameter compatibility, and pressure ratings. Standard Class 150 fittings handle 150 PSI at 350°F or up to 300 PSI at ambient temperatures. Consulting flow calculation tables and considering future expansion needs ensures appropriate sizing for both current and anticipated system demands.
